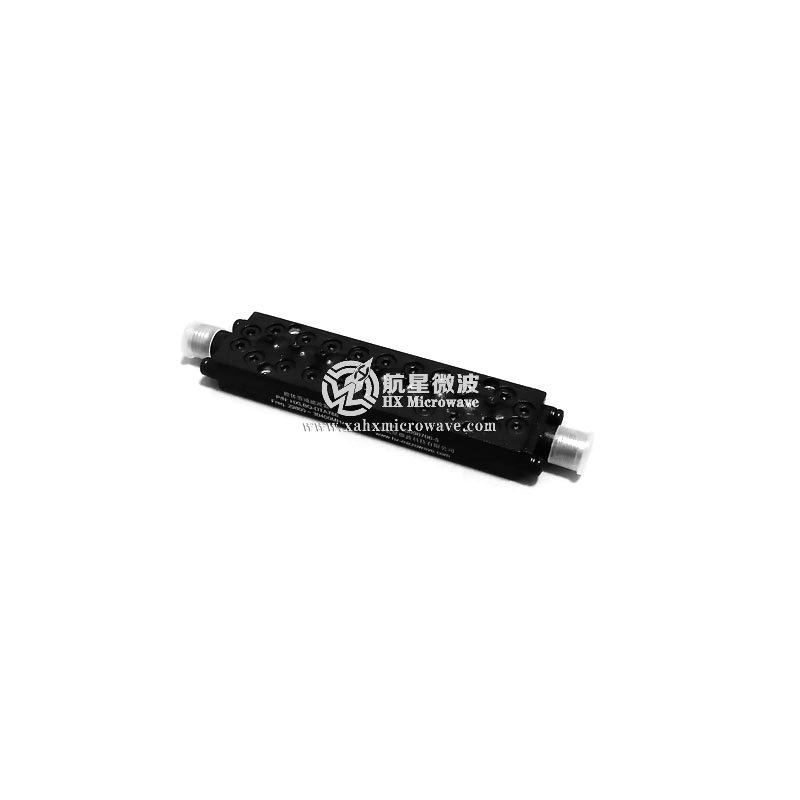

| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 40GHz | |
| ● | Pass Band Frequency | 35 ~ 45GHz | |
| ● | Pass Band Insertion Loss | ≤1.7dB | |
| ● | Pass Band Ripple | ≤0.65dB | |
| ● | Pass Band Return Loss | ≥17dB (Typical: ≥18dB) | |
| ● | Stop Band Rejection | ≥80dB @ DC ~ 33.4GHz | ≥36dB @ 46 ~ 47.05GHz |
| ≥48dB @ 33.4 ~ 34GHz | ≥80dB @ 47.05 ~ 66GHz | ||
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 5W Max. | |
| ● | Connectors | 2.4mm(Q)-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -30℃ ~ +70℃ | |
| Test Curve | |||
