Technical Data Sheet
●	Cut Off Frequency	11GHz
●	Pass Band Frequency	11 ~ 40GHz
●	Pass Band Insertion Loss	≤2.0dB @ 11 ~ 11.8GHz
		≤1.0dB @ 11.8 ~ 40GHz
●	Pass Band VSWR	≤1.6:1
●	Stop Band Attenuation	≥50dB @ DC ~ 9.7GHz
●	Impedance	50 Ohms
●	Power Handling	15W Max.
●	Connectors	2.92mm(K)-Female
●	Surface Finish	Guide Oxygen or Painted Black
●	Temperature Range	-55℃ ~ +85℃

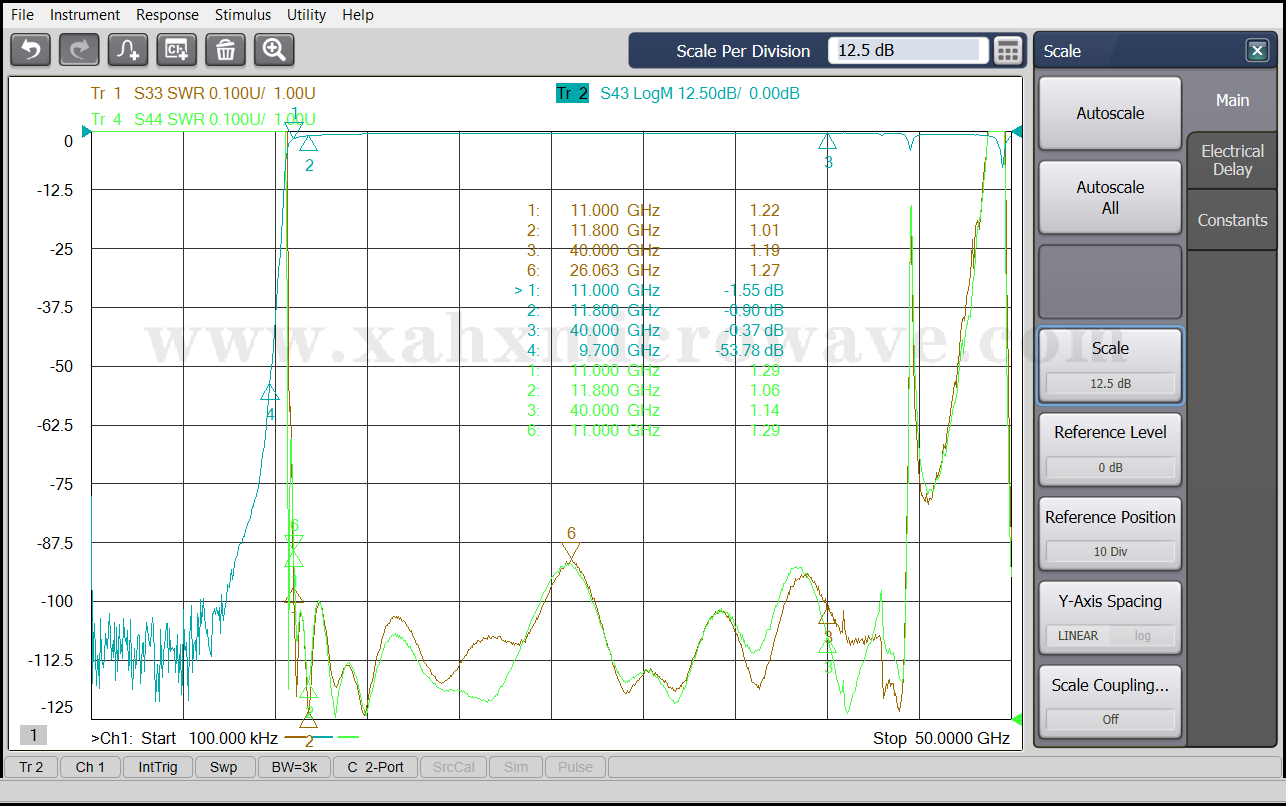

Test Curve
