| Technical Data Sheet | ||
| ● | Cut Off Frequency | 12GHz |
| ● | Pass Band Frequency | 12 ~ 40GHz |
| ● | Pass Band Insertion Loss | ≤2.0dB @ 12 ~ 12.8GHz |
| ≤1.0dB @ 12.8 ~ 40GHz | ||
| ● | Pass Band VSWR | ≤1.6:1 |
| ● | Stop Band Attenuation | ≥50dB @ DC ~ 10GHz |
| ● | Impedance | 50 Ohms |
| ● | Power Handling | 15W Max. |
| ● | Connectors | 2.92mm(K)-Female |
| ● | Surface Finish | Guide Oxygen or Painted Black |
| ● | Temperature Range | -55℃ ~ +85℃ |

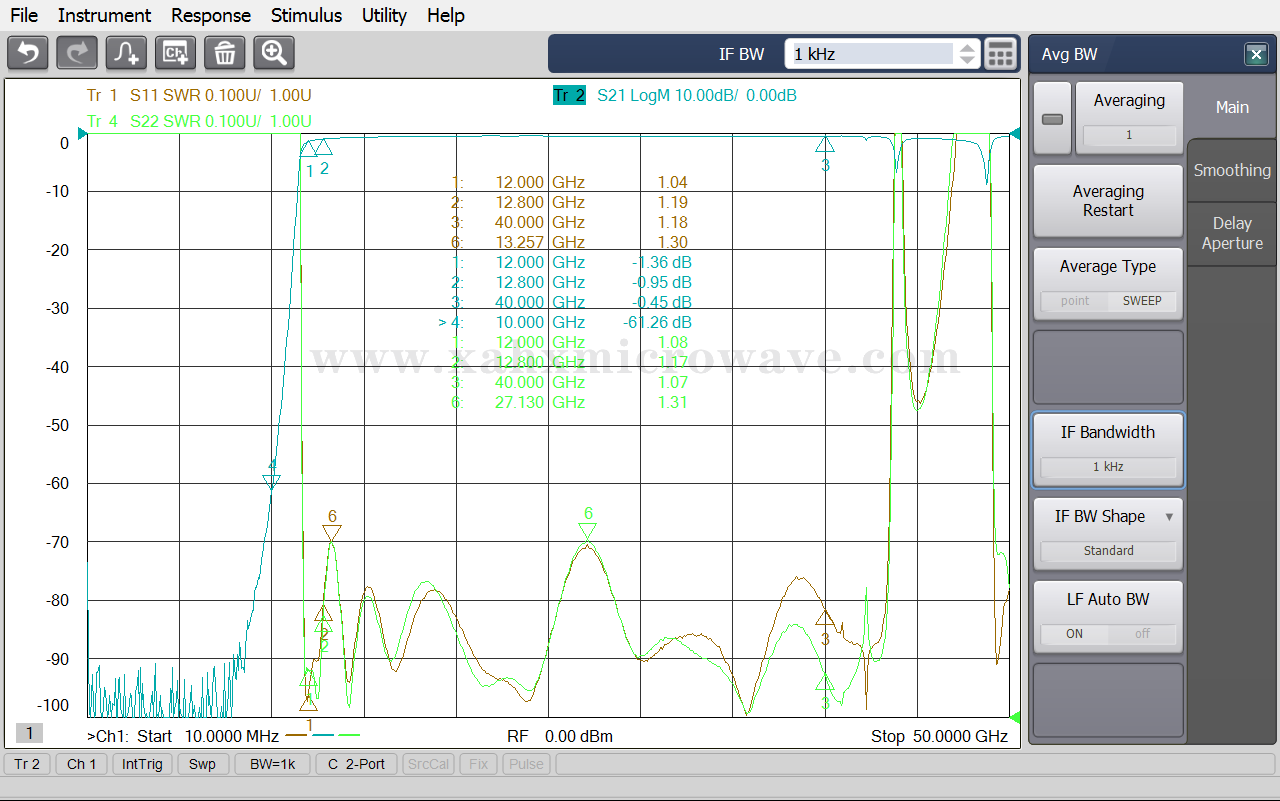

| Test Curve | ||
