Technical Data Sheet
●	Pass Band Frequency	5.3 ~ 24GHz
●	Pass Band Insertion Loss	≤1.8dB @ 5.3 ~ 5.7GHz
		≤1.0dB @ 5.7 ~ 24GHz
●	Pass Band VSWR	≤1.6:1
●	Stop Band Rejection	≥40dB @ DC ~ 4.58GHz
●	Impedance	50 Ohms
●	Power Handling	15W Max.
●	Connectors	SMA-Female
●	Surface Finish	Guide Oxygen or Painted Black

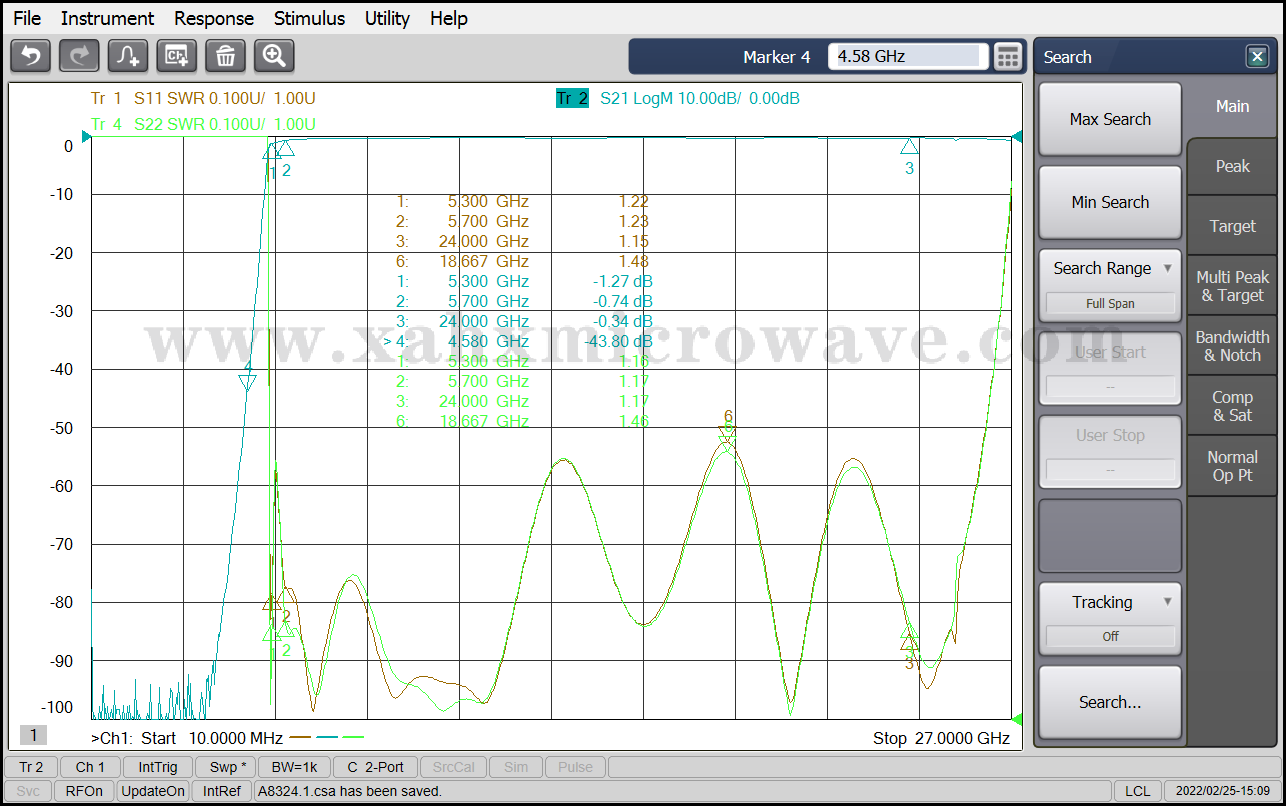

Test Curve
