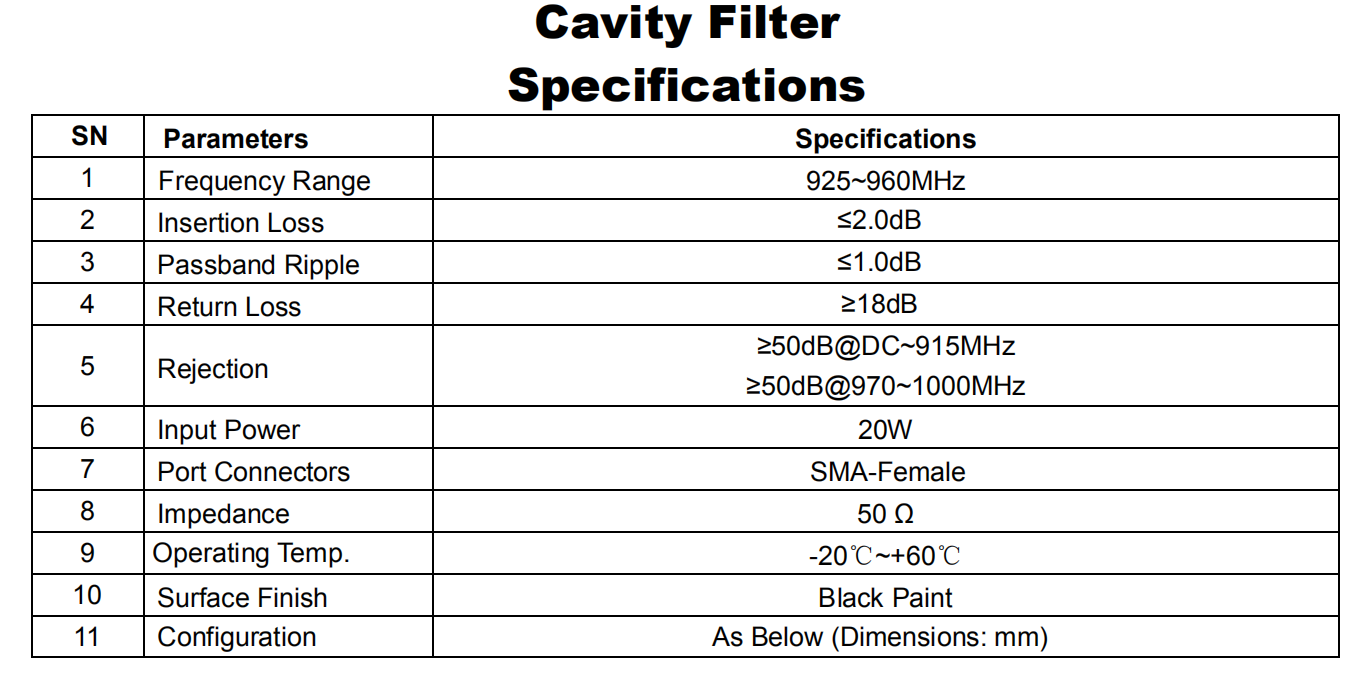

| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 942.5MHz | |
| ● | Pass Band Bandwidth | 925 ~ 960MHz | |
| ● | Pass Band Insertion Loss | ≤2.0dB | |
| ● | Pass Band Ripple | ≤1.0dB | |
| ● | Pass Band Return Loss | ≥18dB | |
| ● | Stop Band Rejection | ≥50dB @ DC ~ 915MHz | ≥50dB @ 970 ~ 1000MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 20W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -20℃ ~ +60℃ | |
| Test Curve | |||
