Technical Data Sheet
●	Center Frequency(F0)	11300MHz
●	Pass Band Frequency	10800 ~ 11800MHz
●	Pass Band Insertion Loss	≤0.75dB
●	Pass Band Ripple	≤0.2dB
●	Pass Band Return Loss	≥23dB
●	Stop Band Rejection	≥80dB @ DC ~ 9850MHz	≥65dB @ 12600 ~ 12700MHz
		≥60dB @ 9850 ~ 10000MHz	≥80dB @ 12700 ~ 22000MHz
●	Impedance	50 Ohms
●	Power Handling	5.0W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

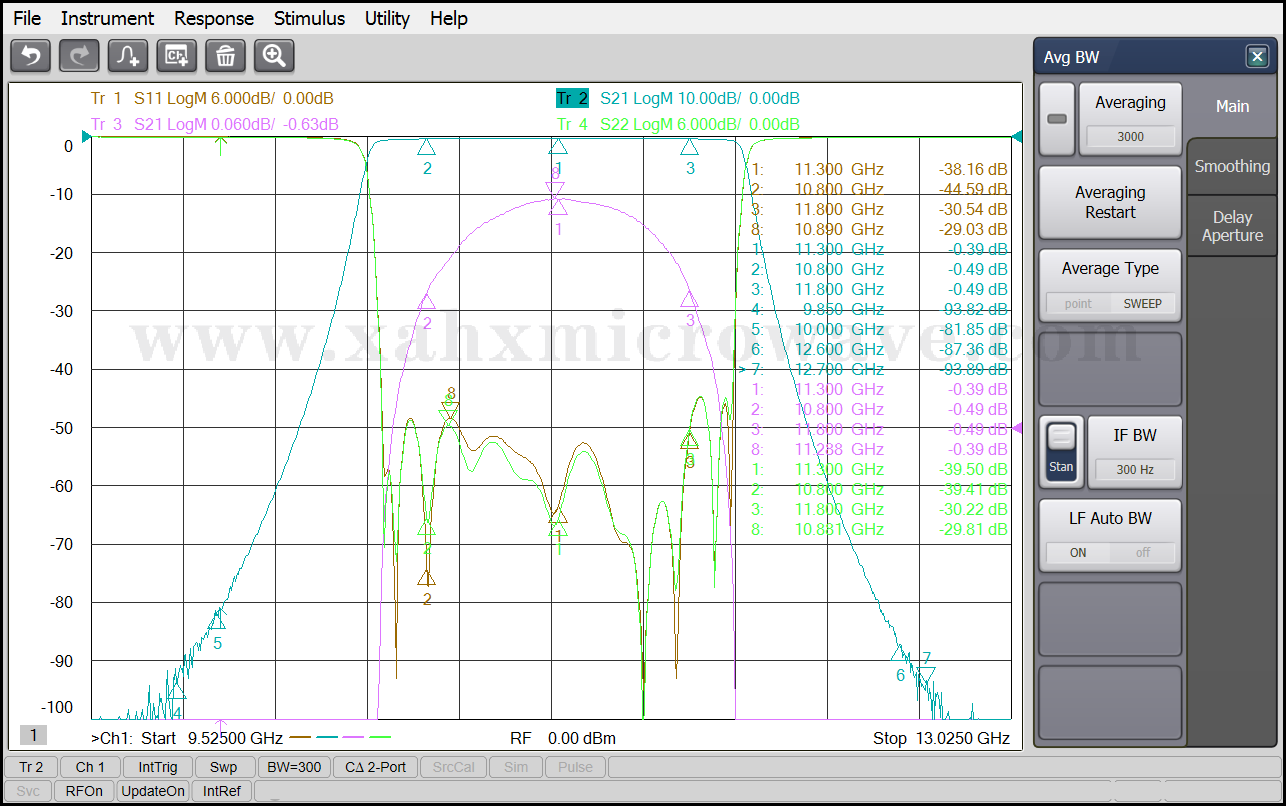

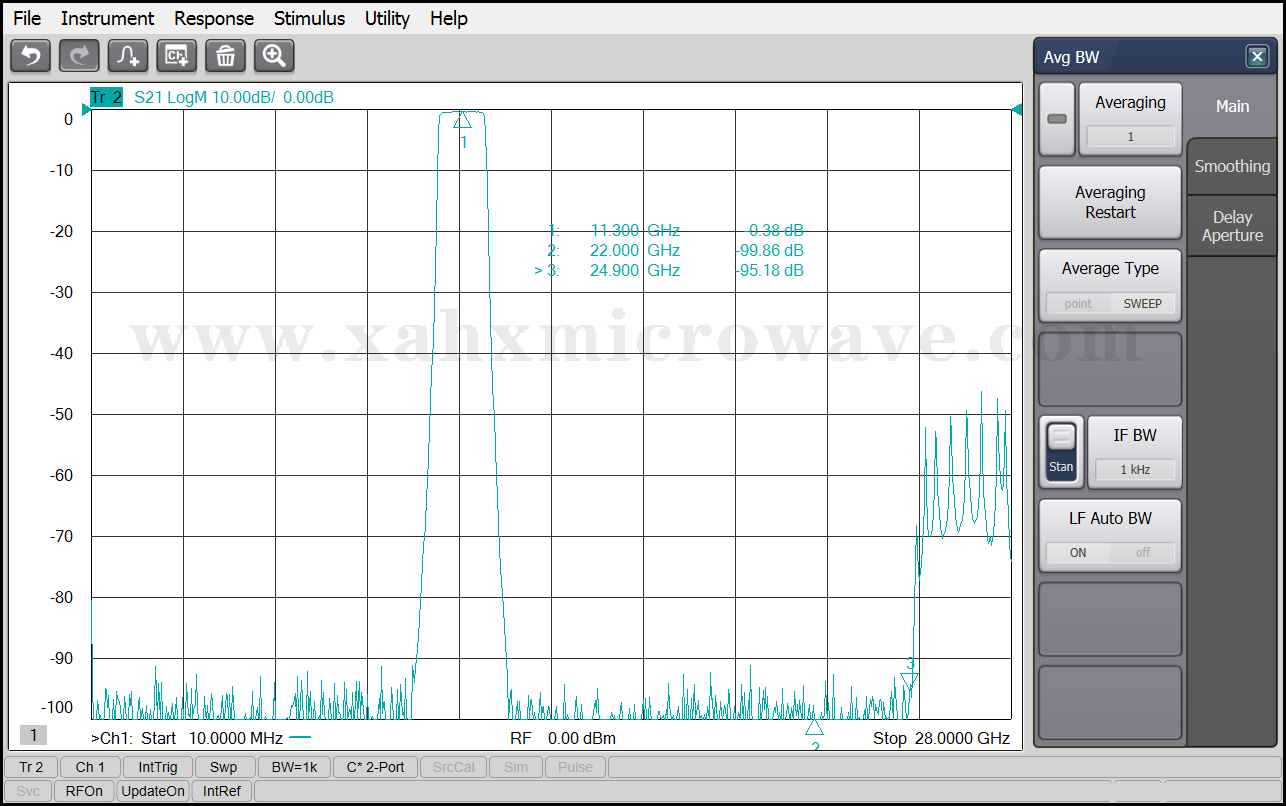

Test Curve
