| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 4000MHz | |
| ● | Pass Band Frequency | 3995 ~ 4005MHz | |
| ● | Pass Band Insertion Loss | ≤1.5dB | |
| ● | Pass Band Ripple | ≤0.3dB | |
| ● | Pass Band Return Loss | ≥23dB | |
| ● | Stop Band Rejection | ≥80dB @ DC ~ 3865MHz | ≥50dB @ 4080 ~ 4135MHz |
| ≥50dB @ 3865 ~ 3920MHz | ≥80dB @ 4135 ~ 12000MHz | ||
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 10W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |

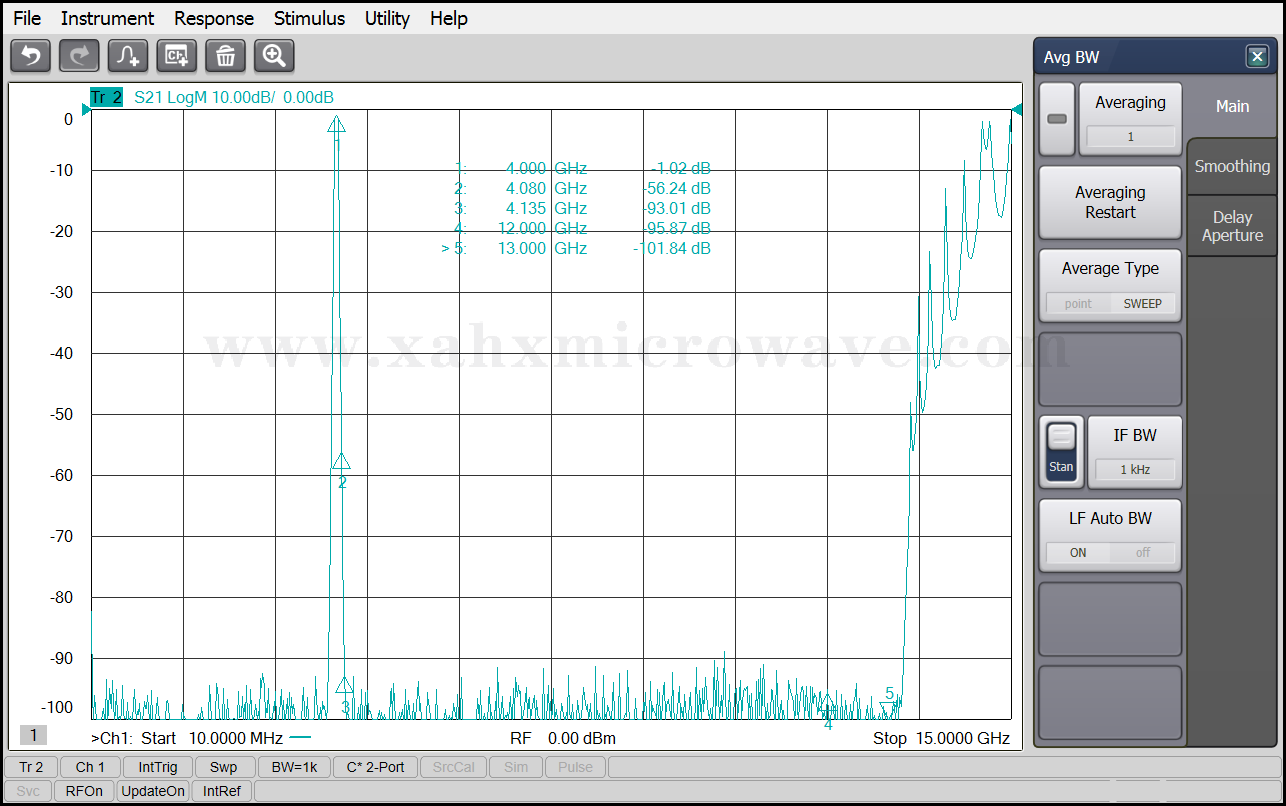

| Test Curve | |||
