Technical Data Sheet
●	Frequency Range	6.0～18GHz
●	Insertion Loss	≤2.5dB
●	VSWR	≤1.8:1 (Type≤1.6:1)
●	Stop Band Attenuation	≥60dB @ DC～5.4GHz
		≥60dB @ 19.2～22GHz
●	Impedance	50 ohms
●	Power Handling	≤5W
●	Surface Finish	Guide Oxygen or Black Paint
●	Port Connectors	SMA-Female
●	Configuration	62*26*10mm
●	Temperature Range	-40℃ ~ +70℃

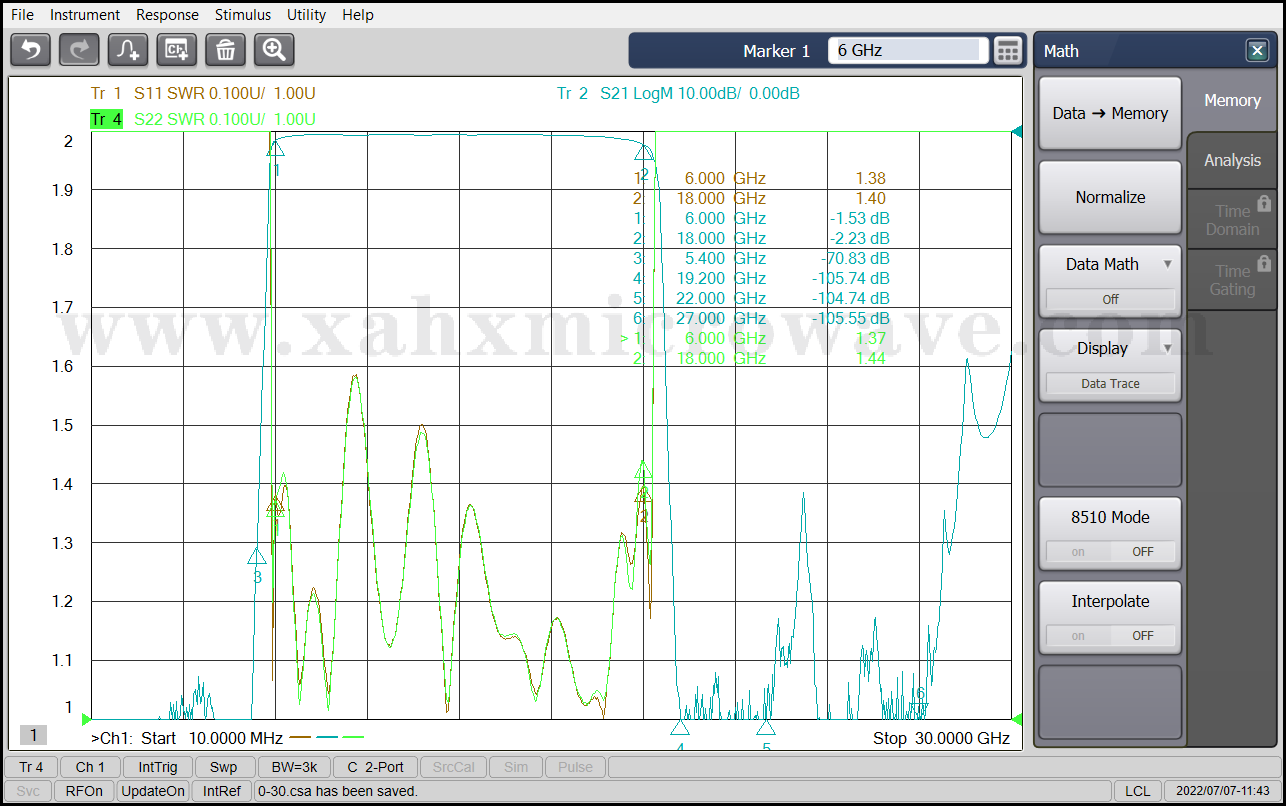

Test Curve
