Technical Data Sheet
●	Center Frequency(F0)	1395MHz
●	Pass Band Frequency	1350 ~ 1440MHz
●	Pass Band Insertion Loss	≤1.5dB
●	Pass Band VSWR	≤1.3:1
●	Stop Band Attenuation	≥60dB @ DC ~ 1330MHz	≥60dB @ 1460 ~ 3000MHz
●	Impedance	50 Ohms
●	Power Handling	20W Max.
●	Connectors	N-Male / N-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

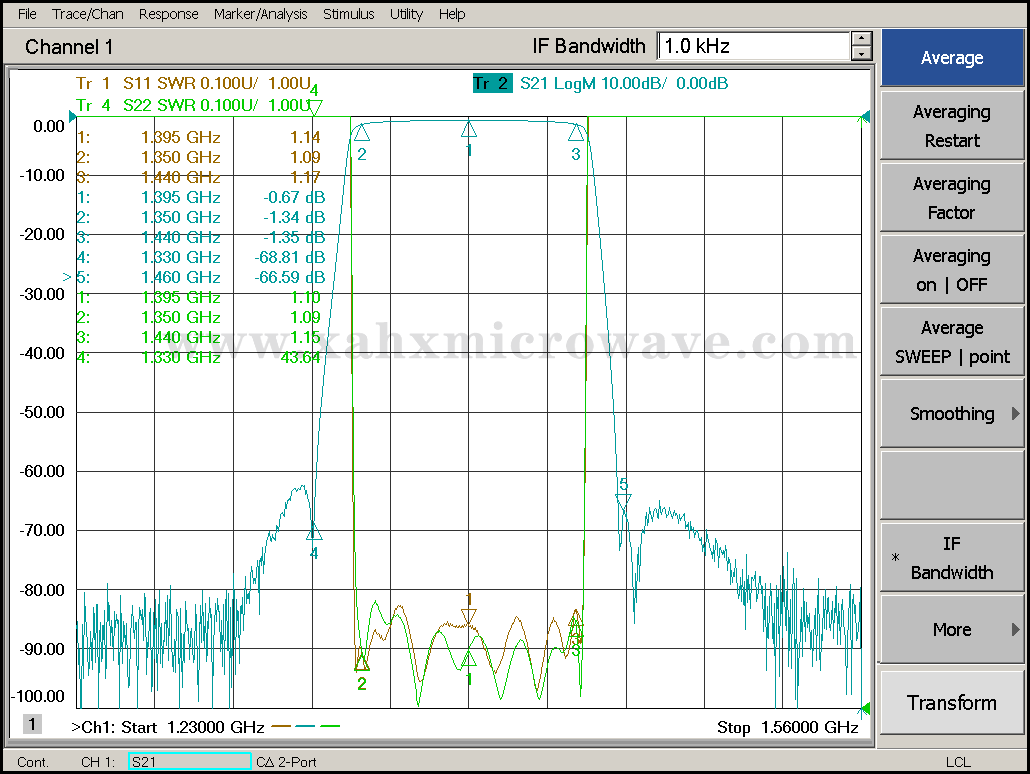

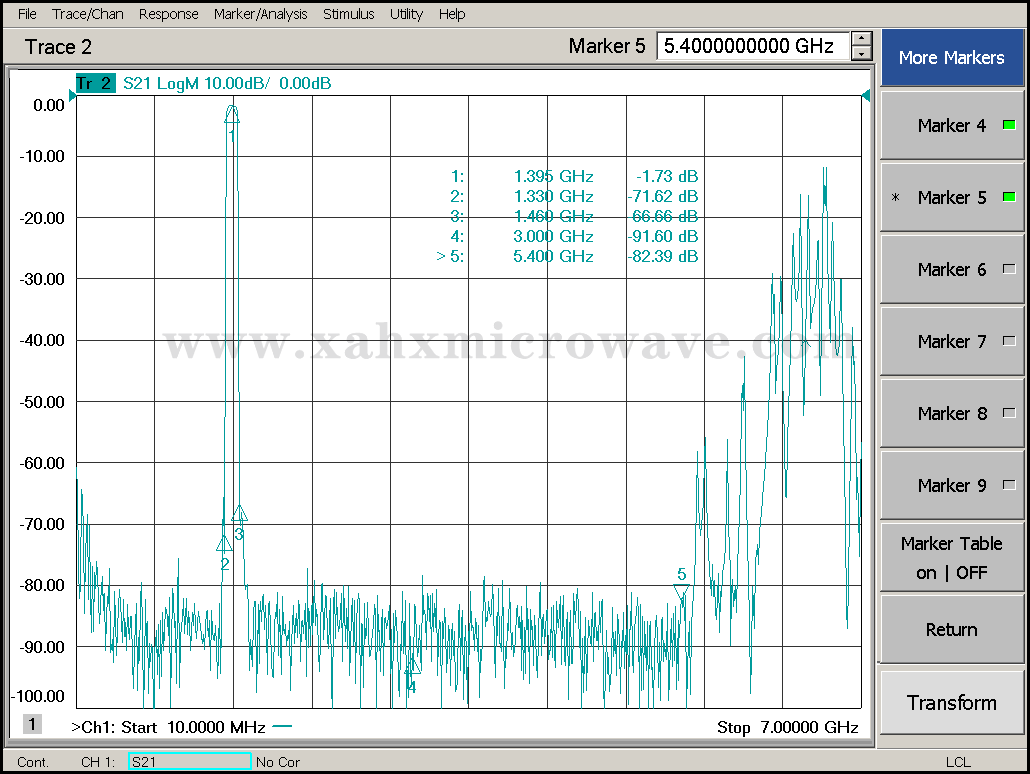

Test Curve
