Technical Data Sheet
●	Center Frequency(F0)	3550MHz
●	Pass Band Frequency	3300 ~ 3800MHz
●	Pass Band Insertion Loss	≤1.0dB
●	Pass Band Ripple	≤0.5dB
●	Pass Band VSWR	≤1.22:1
●	Stop Band Rejection	≥50dB @ DC ~ 3100MHz	≥50dB @ 4000 ~ 8000MHz
●	Impedance	50 Ohms
●	Power Handling	20W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

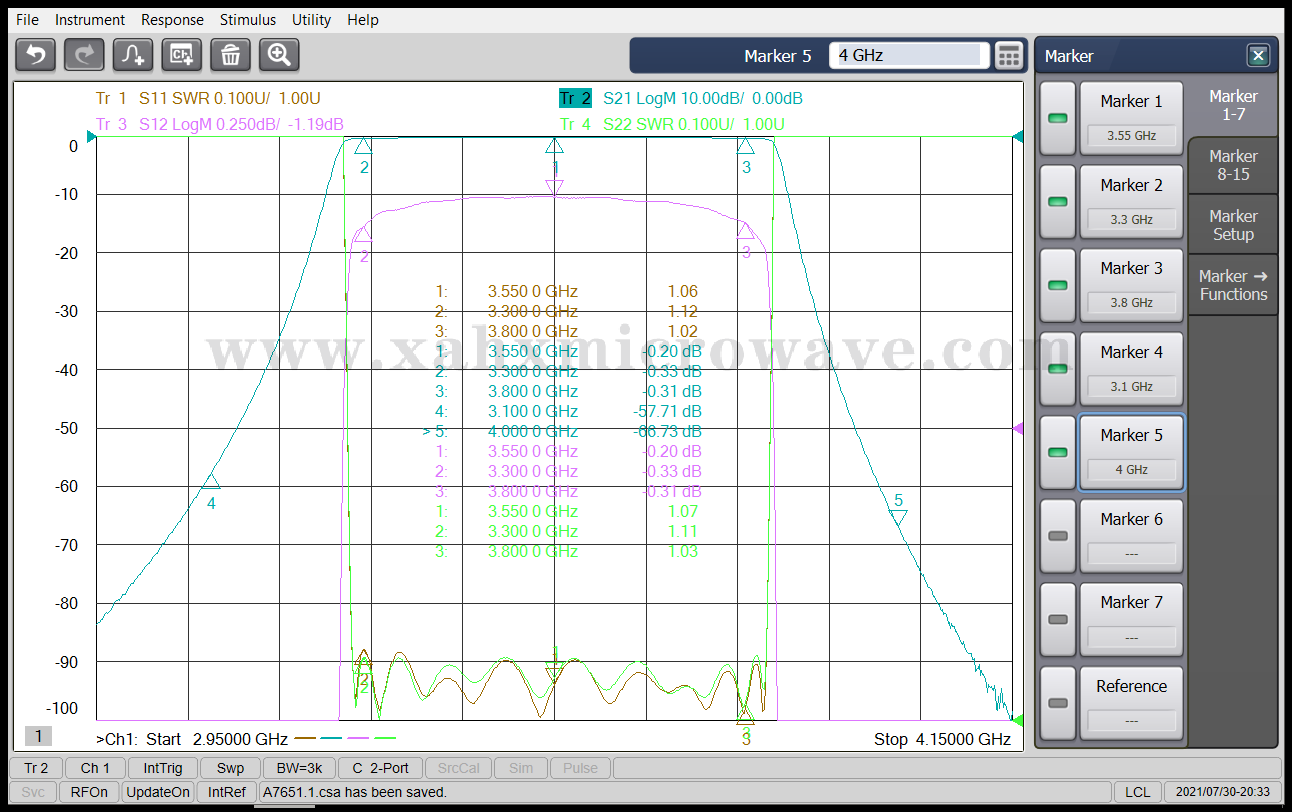

Test Curve
