Technical Data Sheet
●	Center Frequency(F0)	10GHz
●	Pass Band Bandwidth	10MHz (9.995 ~ 10.005GHz)
●	Pass Band Insertion Loss	≤1.7dB
●	Pass Band Ripple	≤0.15dB
●	Pass Band Return Loss	≥20dB
●	Stop Band Rejection	≥50dB @ DC ~ 9.85GHz	≥50dB @ 10.15 ~ 18GHz
●	Impedance	50 Ohms
●	Power Handling	10W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black

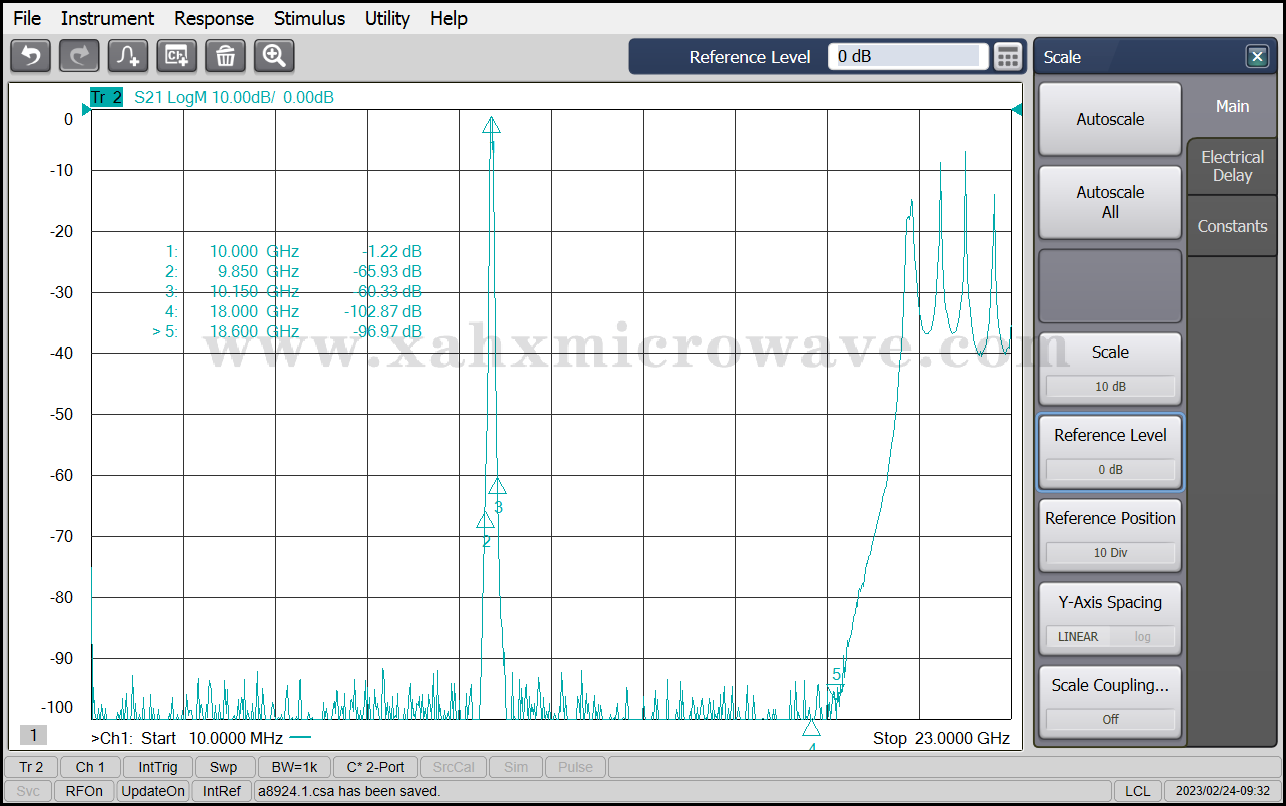

Test Curve
