Technical Data Sheet
●	Center Frequency(F0)	2975MHz
●	Pass Band Frequency	2965 ~ 2985MHz
●	Pass Band Insertion Loss	≤3.2dB
●	Pass Band Ripple	≤0.65dB
●	Pass Band Return Loss	≥23dB
●	Stop Band Rejection	≥80dB @ DC ~ 2915MHz	≥40dB @ 3005 ~ 3035MHz
		≥40dB @ 2915 ~ 2945MHz	≥80dB @ 3035 ~ 8000MHz
●	Impedance	50 Ohms
●	Power Handling	5.0W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black

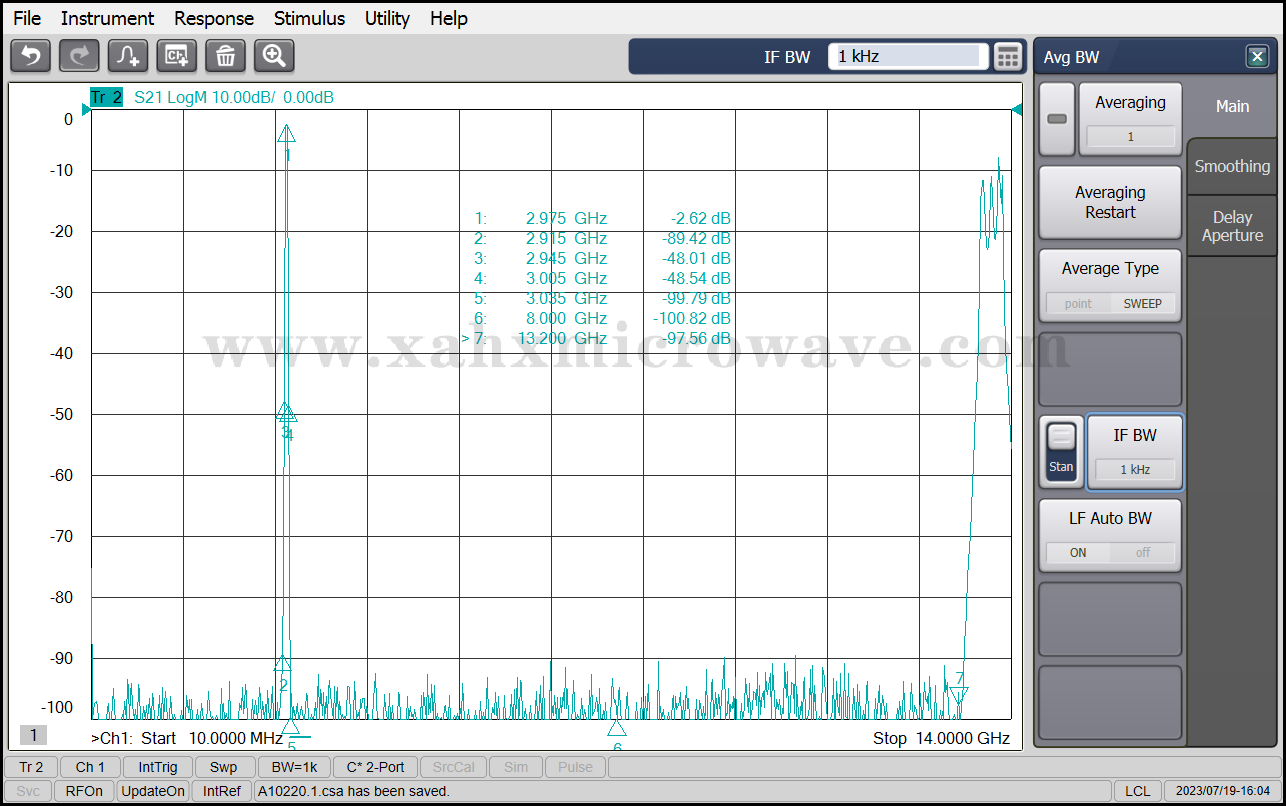

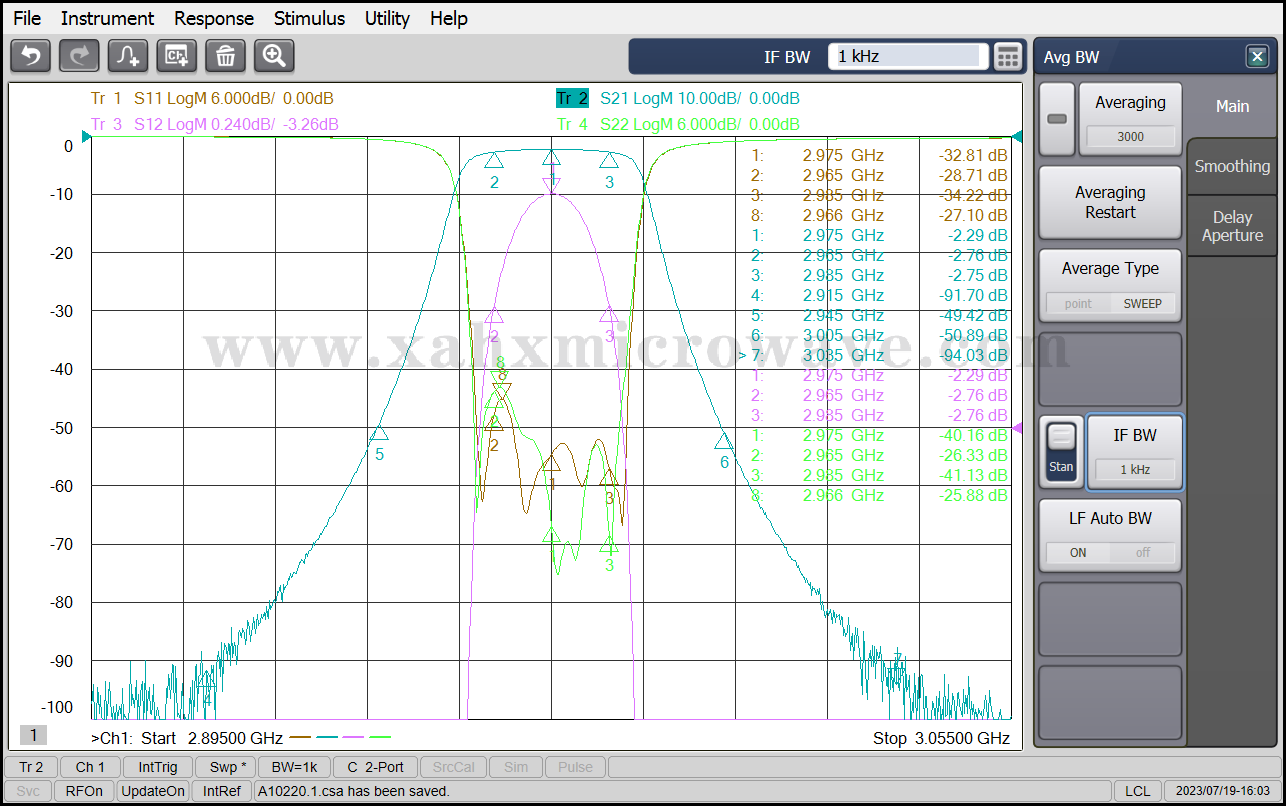

Test Curve
