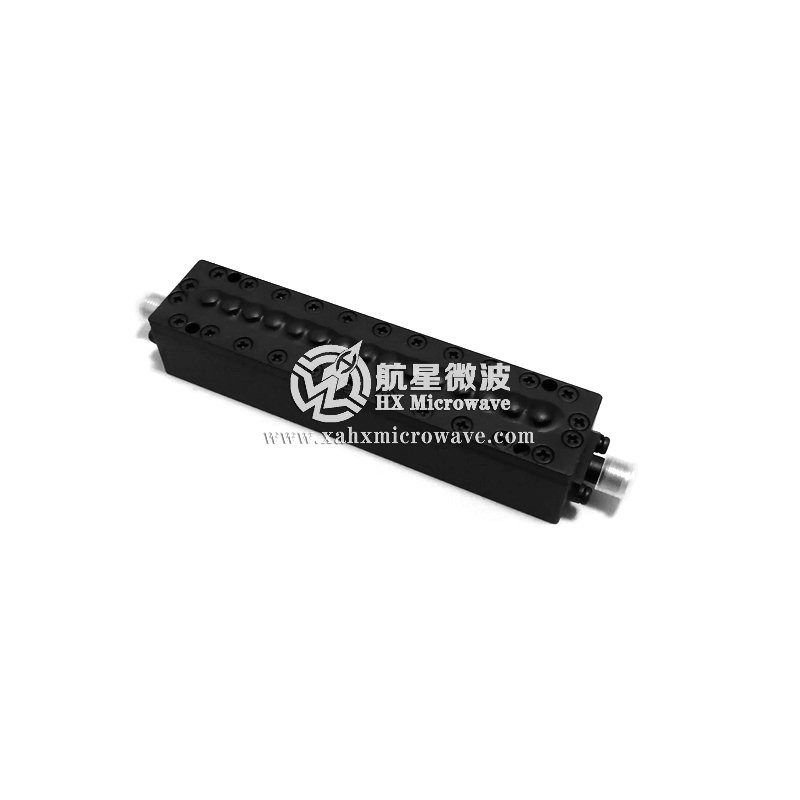

Technical Data Sheet
●	Center Frequency(F0)	3050MHz
●	Pass Band Frequency	2950 ~ 3150MHz
●	Pass Band Insertion Loss	≤0.85dB
●	Pass Band Ripple	≤0.22dB
●	Pass Band Return Loss	≥23dB
●	Pass Band Group Delay	≤11.5ns
●	Pass Band Group Delay Variation	≤3.5ns
●	Stop Band Rejection	≥80dB @ DC ~ 2670MHz	≥53dB @ 3300 ~ 3400MHz
		≥50dB @ 2670 ~ 2800MHz	≥80dB @ 3400 ~ 10000MHz
●	Impedance	50 Ohms
●	Power Handling	10W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃
Test Curve
