Technical Data Sheet
●	Center Frequency(F0)	5254MHz
●	Pass Band Frequency	5204 ~ 5304MHz
●	Pass Band Insertion Loss	≤1.0dB (Typical: ≤0.8dB)
●	Pass Band Ripple	≤0.12dB
●	Pass Band Return Loss	≥23dB
●	Stop Band Rejection	≥80dB @ DC ~ 4958MHz	≥50dB @ 5454 ~ 5550MHz
		≥50dB @ 4958 ~ 5054MHz	≥80dB @ 5550 ~ 17000MHz
●	Impedance	50 Ohms
●	Power Handling	10W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

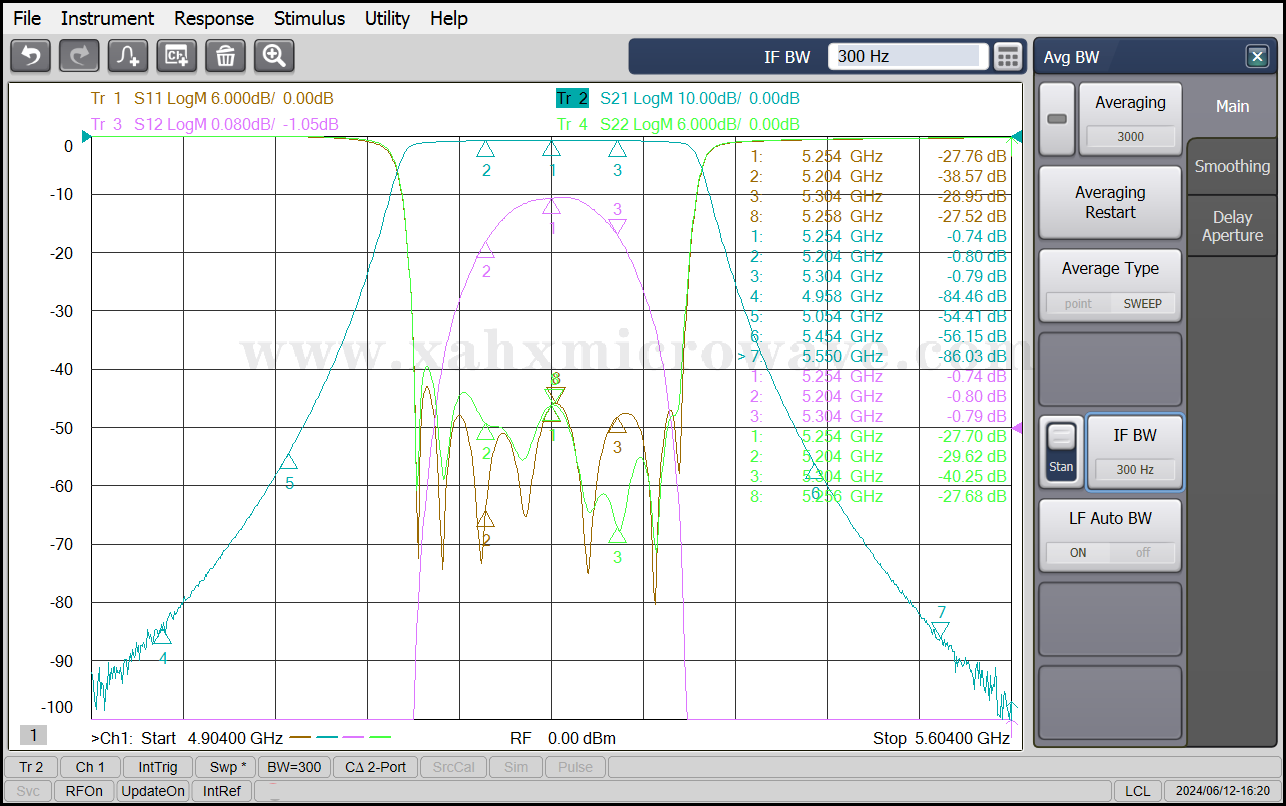

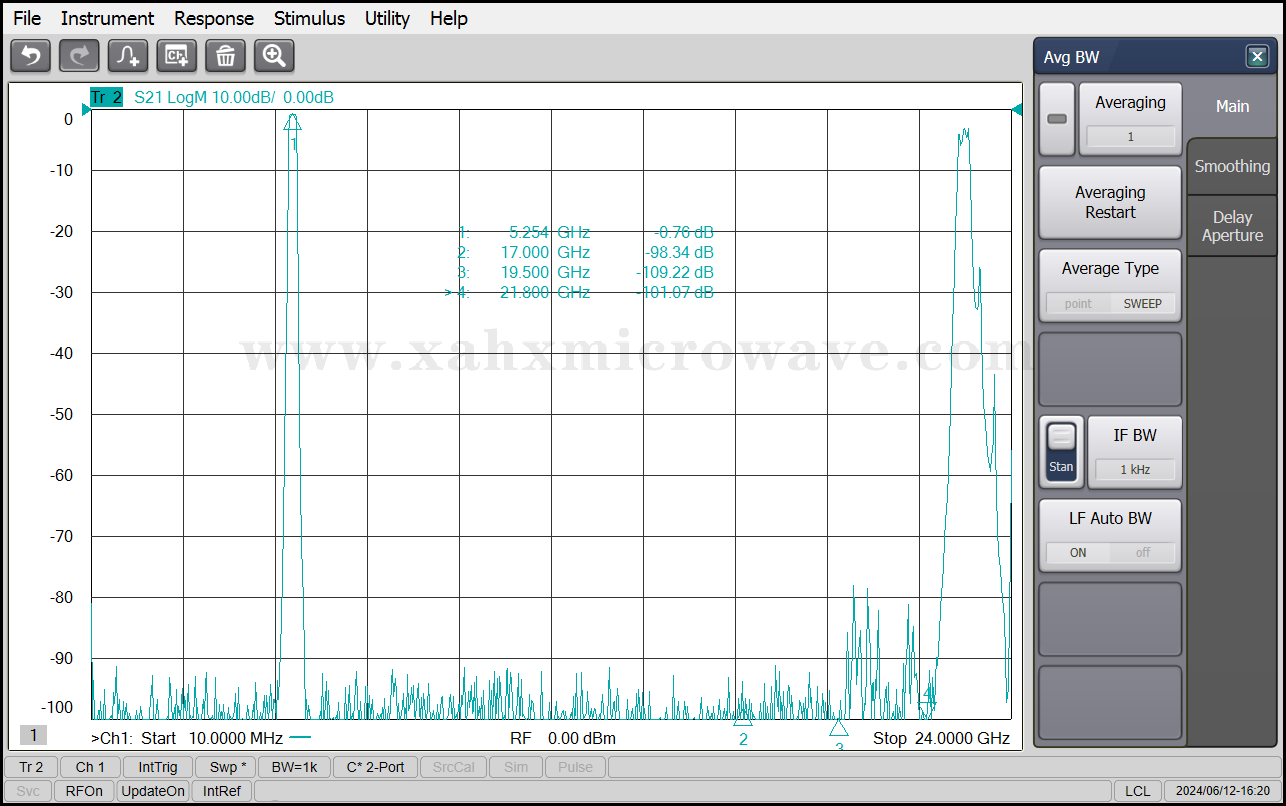

Test Curve
