| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 1500MHz | |
| ● | Pass Band Frequency | 1000 ~ 2000MHz | |
| ● | Pass Band Insertion Loss | ≤1.2dB | |
| ● | Pass Band Ripple | ≤0.7dB | |
| ● | Pass Band Return Loss | ≥14dB | |
| ● | Stop Band Rejection | ≥60dB @ DC ~ 800MHz | ≥60dB @ 2200 ~ 3000MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 5.0W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |

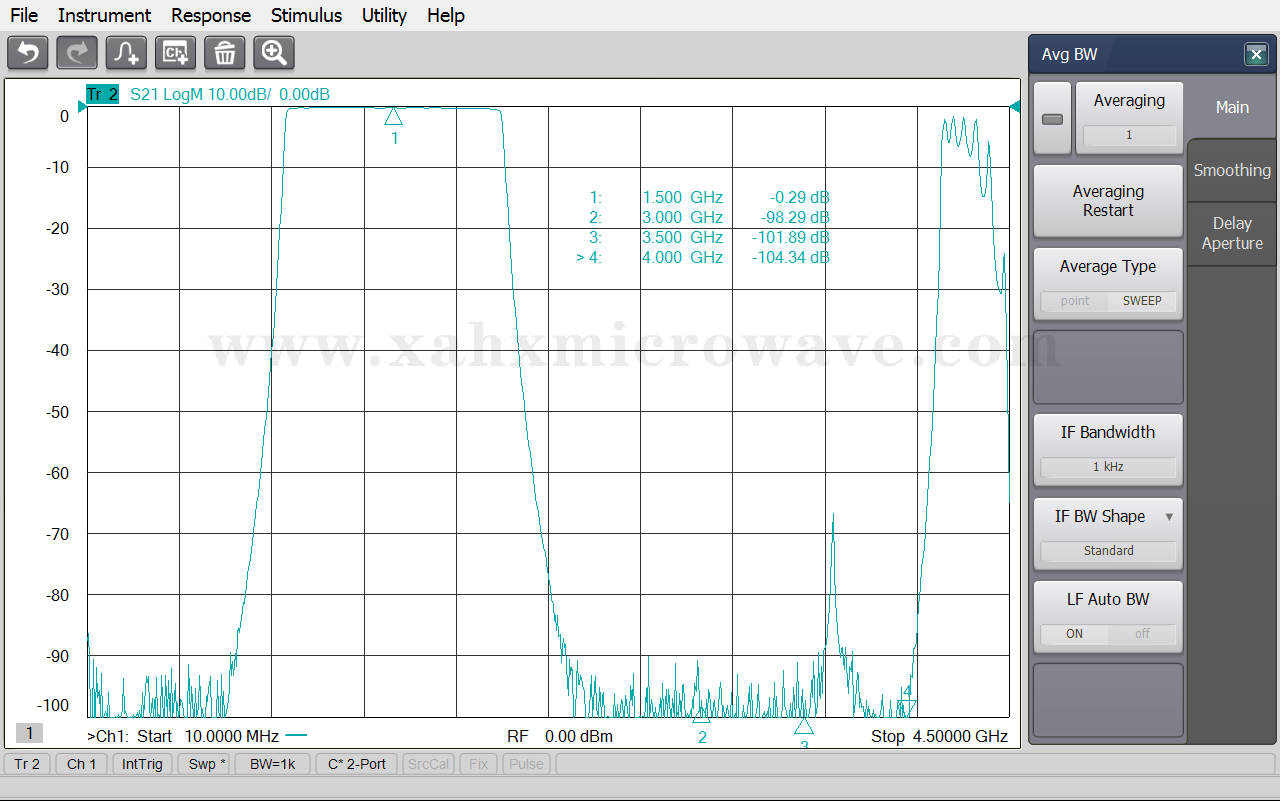

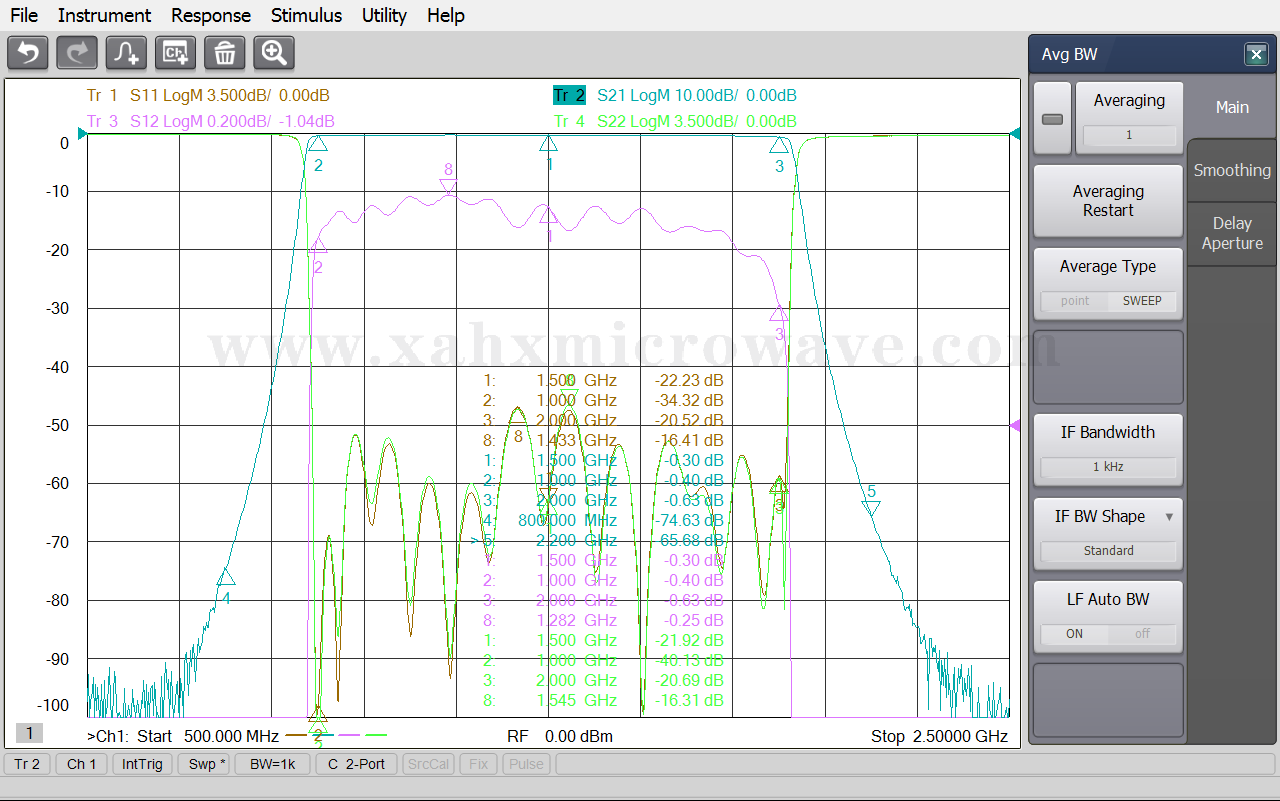

| Test Curve | |||
