Technical Data Sheet
●	Stop Band Frequency	5150～5850MHz
●	Stop Band Rejection	≥40dB
●	Pass Band Frequency	DC～4900MHz & 6100～10000MHz
●	Pass Band Insertion Loss	≤2.0dB
●	Pass Band VSWR	≤1.7:1
●	Impedance	50 ohms
●	Surface Finish	Black Paint
●	Power Handling	≤5W
●	Connectors	SMA-Female
●	Net Weight	0.11 KG

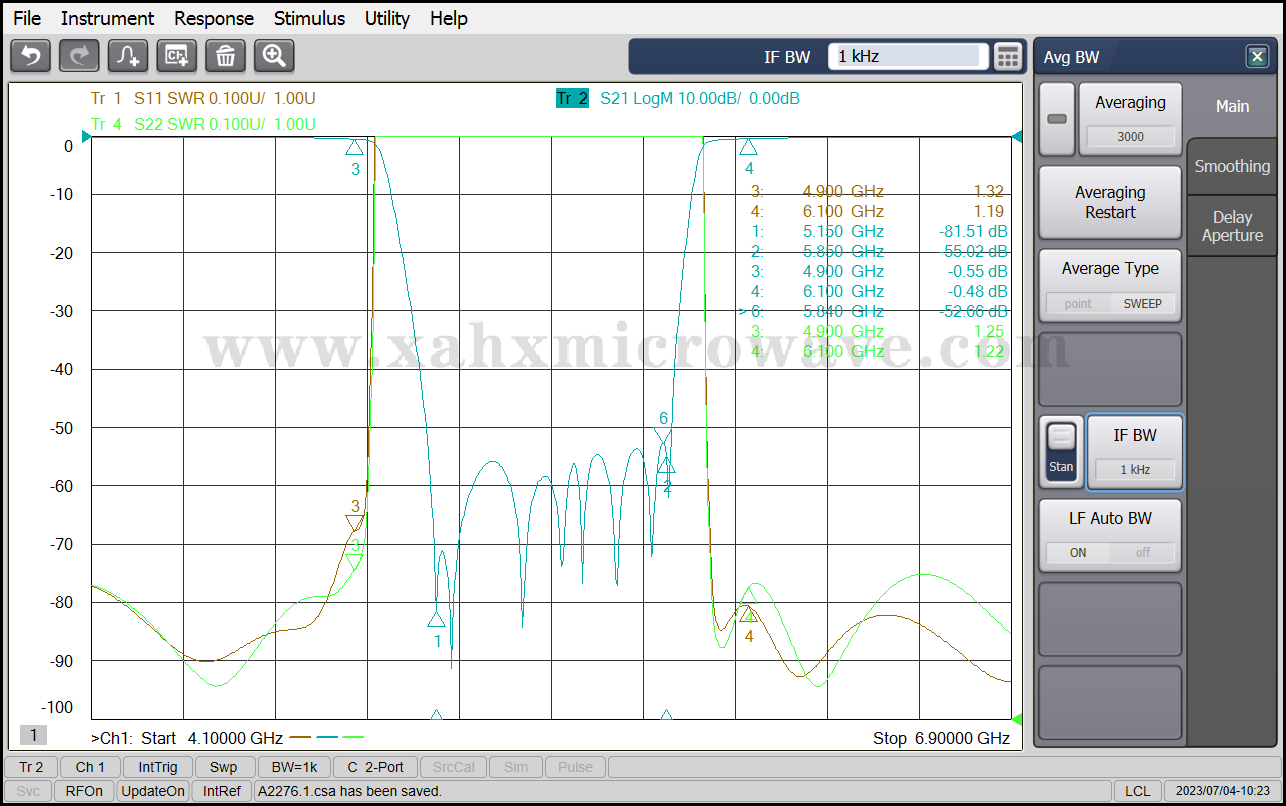

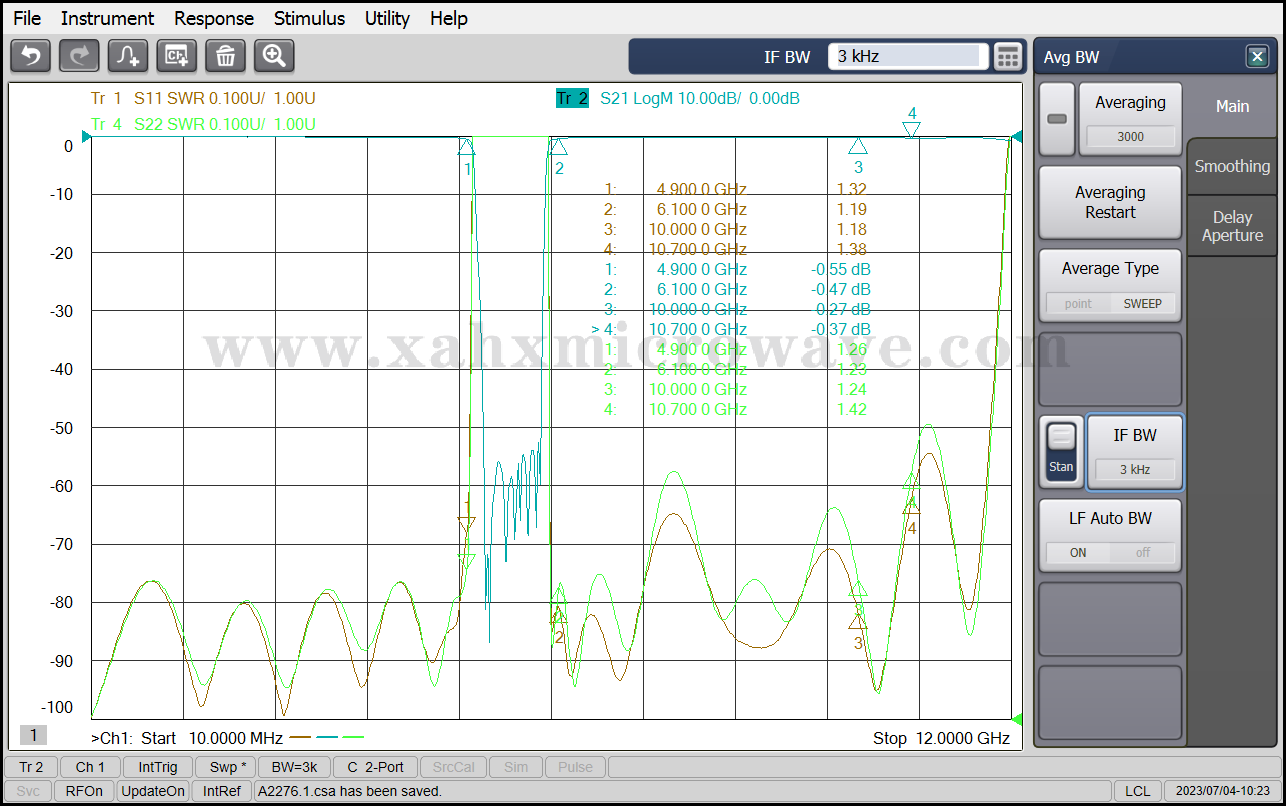

Test Curve
