Technical Data Sheet
●	Stop Band Frequency	2110～2170MHz
●	Stop Band Attenuation	≥50dB
●	Pass Band Frequency	DC～2085MHz & 2195～5500MHz
●	Pass Band Insertion Loss	≤2.0dB
●	Pass Band VSWR	≤1.5:1
●	Impedance	50 ohms
●	Surface Finish	Black Paint
●	Power Handling	≤50W
●	Connectors	N-Female
●	Temperature Range	-30℃ ~ +70℃

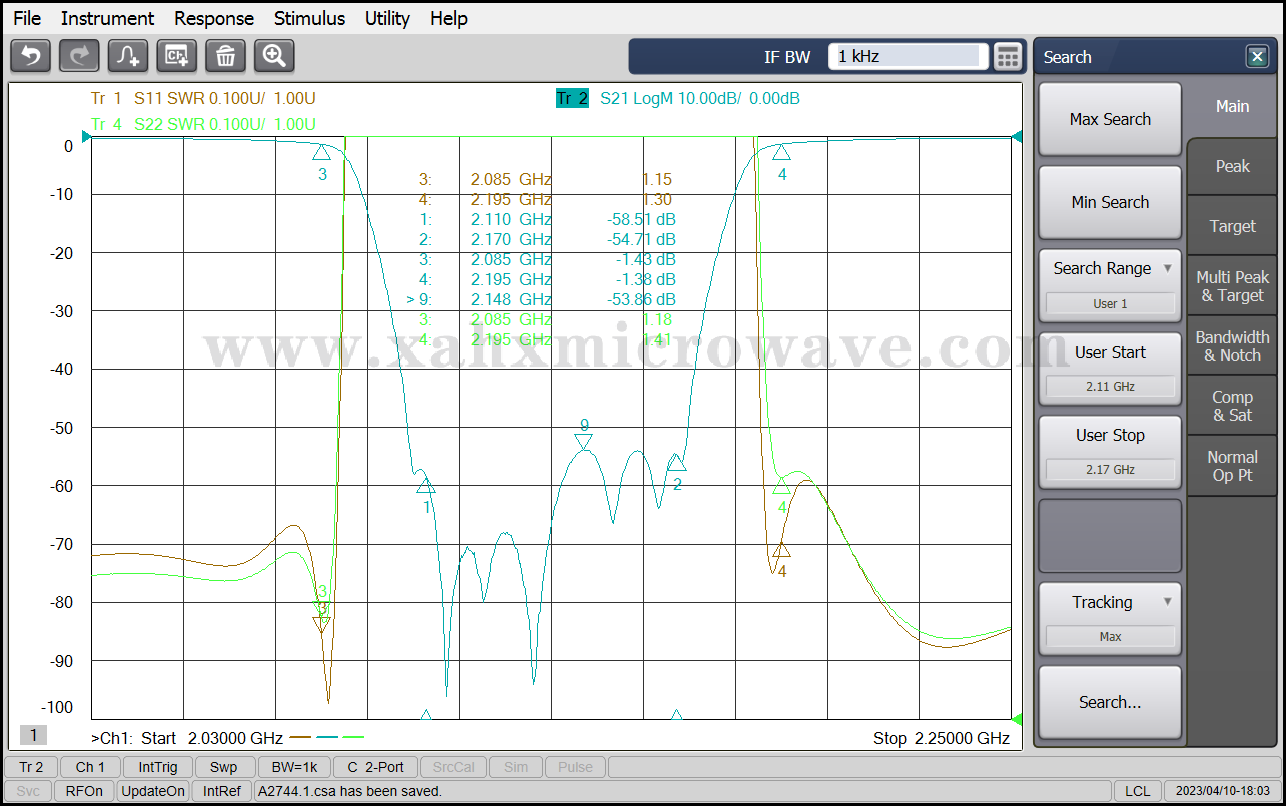

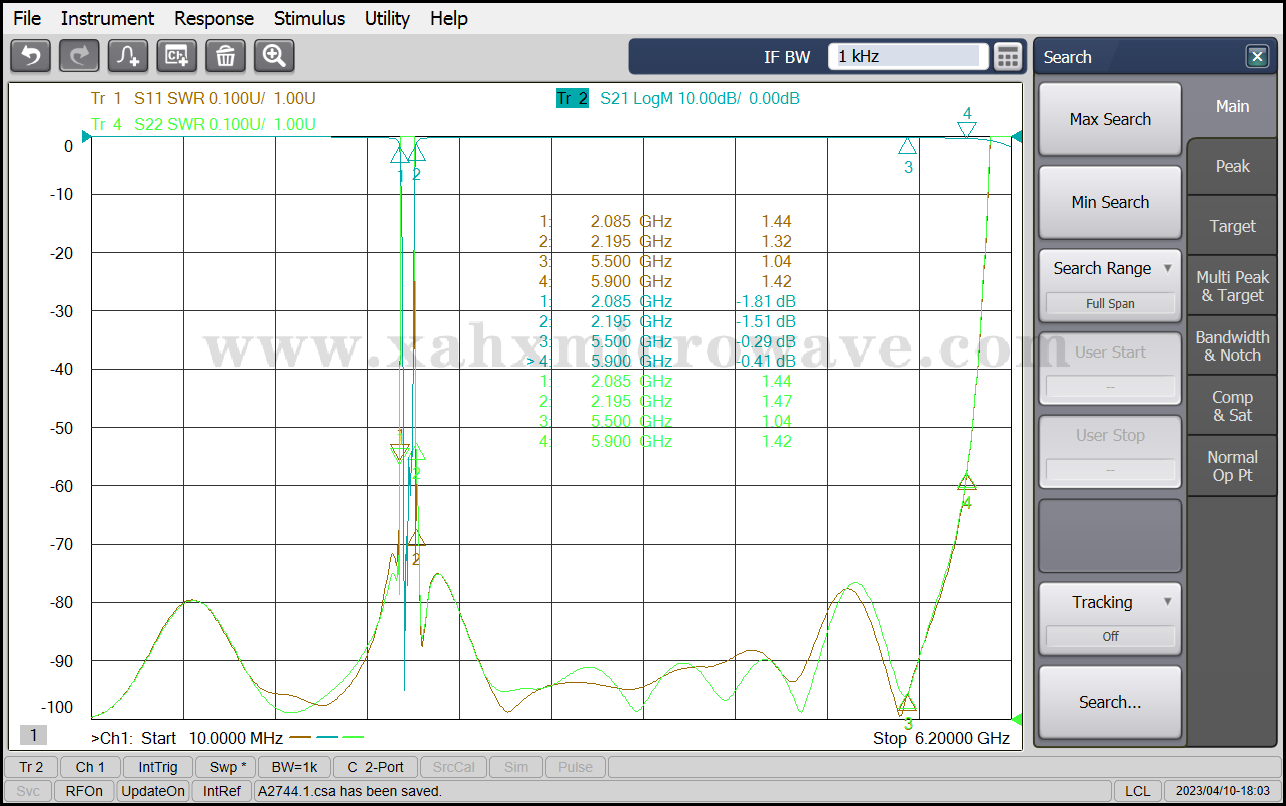

Test Curve
