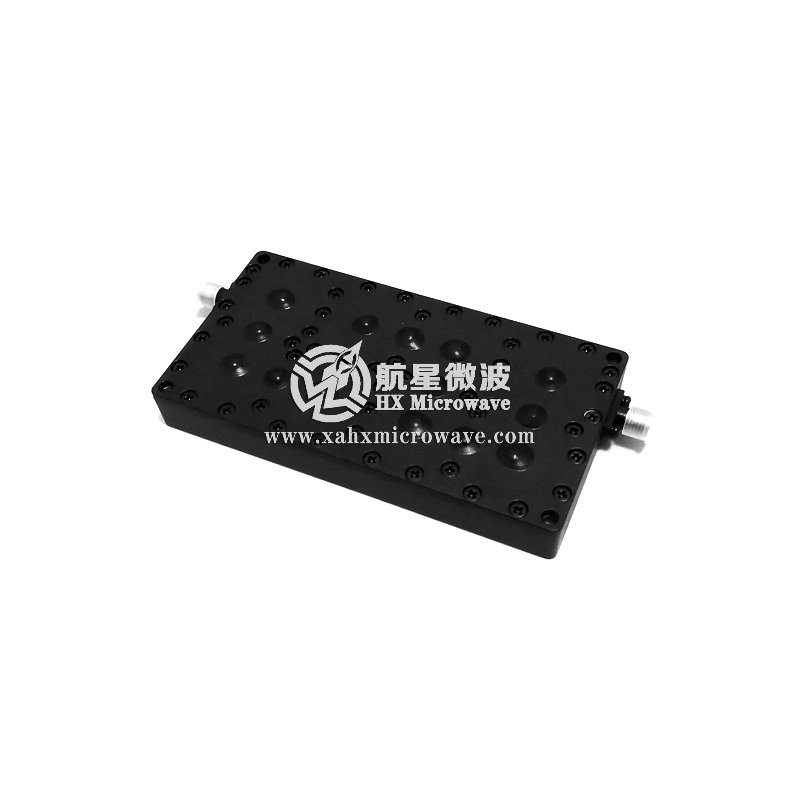

| Technical Data Sheet | ||
| ● | Center Frequency (F0) | 5.8GHz |
| ● | Pass Band Frequency | 5.7～5.9GHz |
| ● | Pass Band Insertion Loss | ≤3.0dB |
| ● | Pass Band VSWR | ≤1.3:1 |
| ● | Stop Band Rejection | ≥60dB @ Fc±50MHz |
| (DC～5.65GHz、5.95～10GHz) | ||
| ● | Impedance | 50 ohms |
| ● | Surface Finish | Black Paint |
| ● | Power Handling | ≤10W |
| ● | Connectors | SMA-Female |
| ● | Temperature Range | -10℃～+60℃ |
| Test Curve | ||
