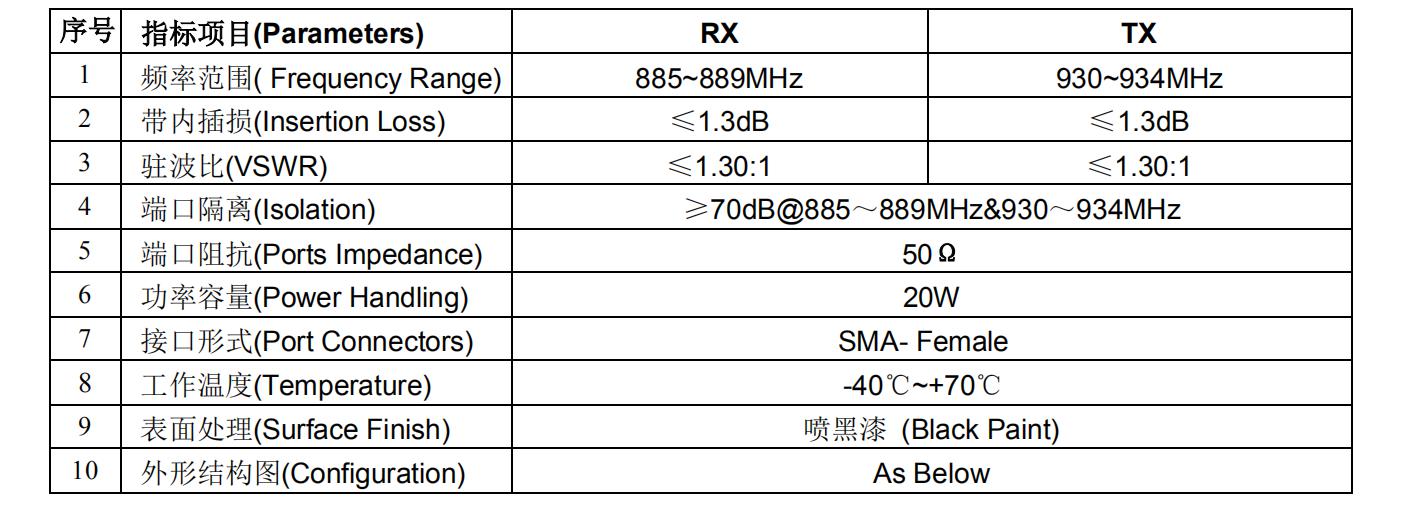

| Technical Data Sheet | |||
| S/N | Item | RX | TX |
| ● | Pass Band Frequency | 885 ~ 889MHz | 930 ~ 934MHz |
| ● | Pass Band Insertion Loss | ≤1.3dB | ≤1.3dB |
| ● | VSWR | ≤1.30:1 | ≤1.30:1 |
| ● | Stop Band Attenuation | ≥70dB @ 930 ~ 934MHz | ≥70dB @ 885 ~ 889MHz |
| ● | Impedance | 50 Ohms | |
| ● | Average Power | 20W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -40℃ ~ +70℃ | |

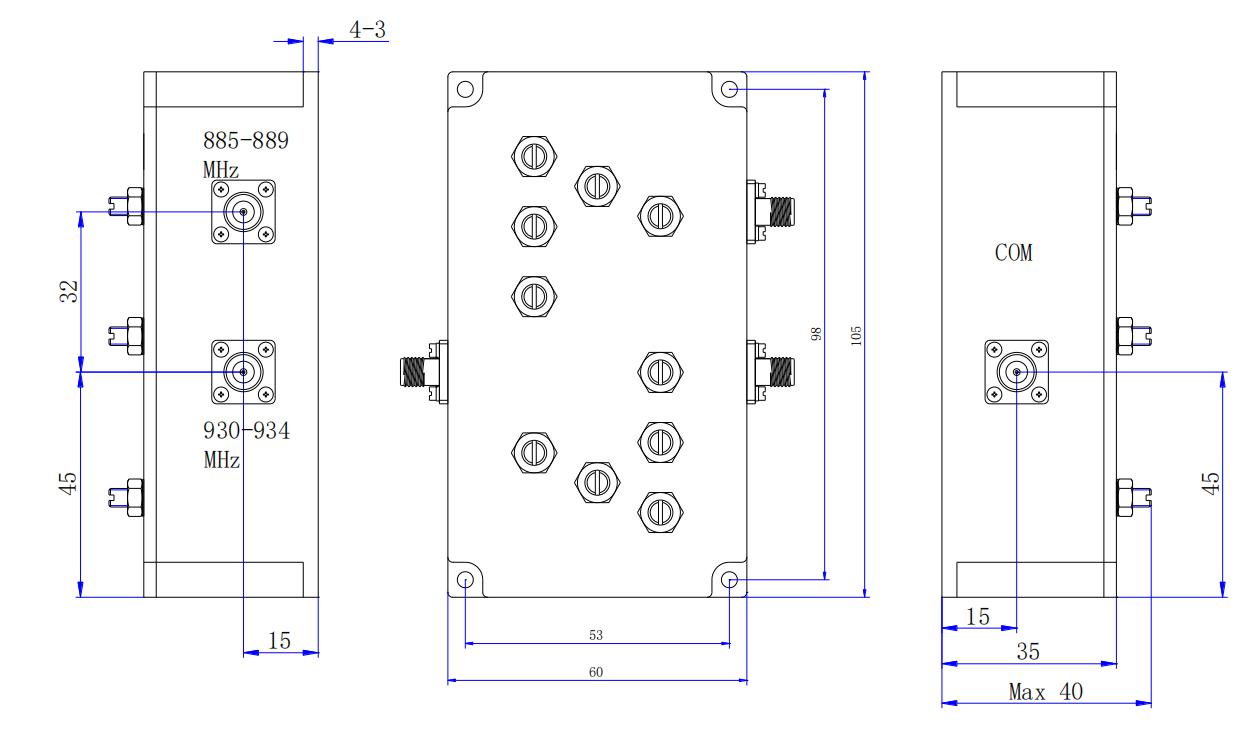

| ● | Dimensions | 60*105*40mm | |
| ● | Working Environment | Indoor | |
| Test Curve | |||
