Technical Data Sheet
●	Frequency Range	2.0 ~ 18GHz
●	Phase Difference	90°
●	Nominal Split	3.01dB
●	Insertion Loss	≤1.2dB
●	VSWR	≤1.5:1
●	Amplitude Balance	≤±0.7dB
●	Phase Balance	≤±7°
●	Isolation	≥18dB
●	Impedance	50 Ohms
●	Power Handling	20W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black

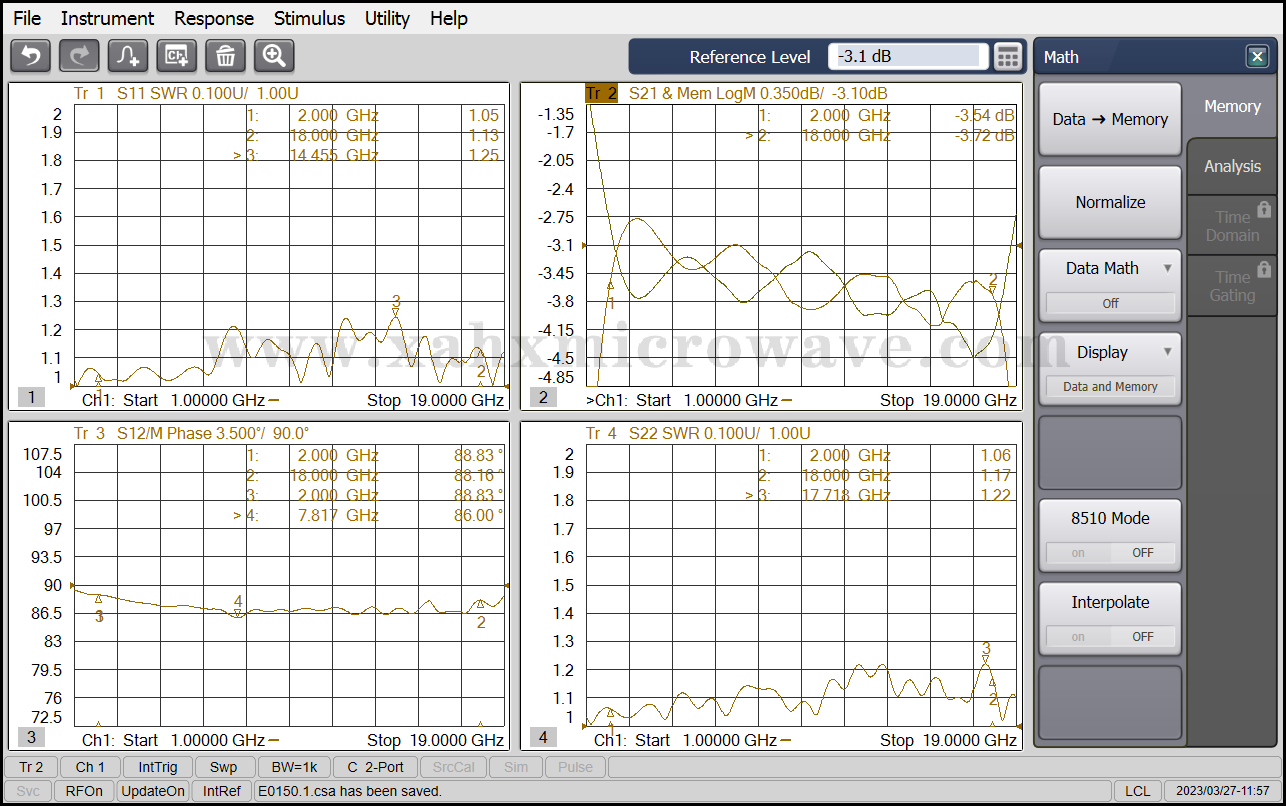

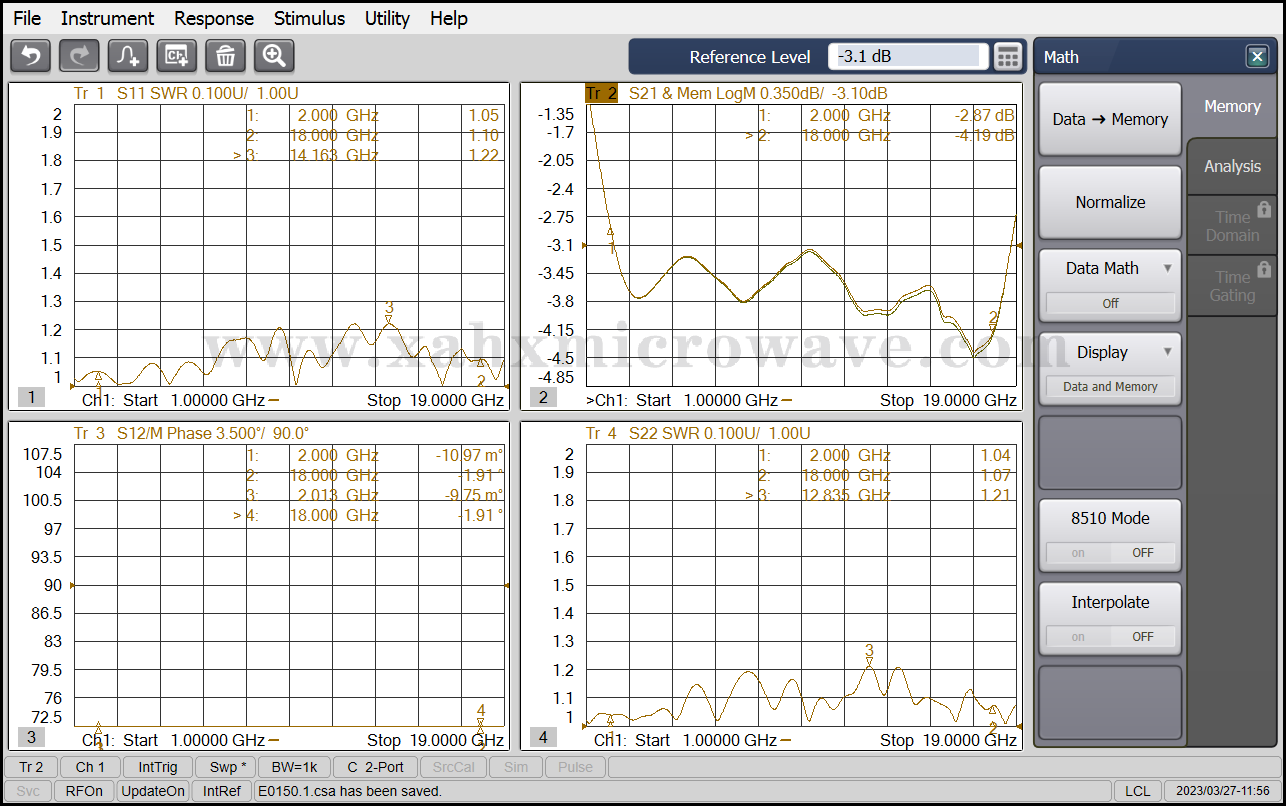

Test Curve
