| Technical Data Sheet | ||
| ● | Frequency Range | 0.5 ~ 1.0GHz |
| ● | Phase Difference | 90° |
| ● | Nominal Split | 3.01dB |
| ● | Insertion Loss | ≤0.3dB |
| ● | VSWR | ≤1.2:1 |
| ● | Amplitude Balance | ≤±0.5dB |
| ● | Phase Balance | ≤±2.0° |
| ● | Isolation | ≥22dB |
| ● | Impedance | 50 Ohms |
| ● | Power Handling | Average: 50W Max. ; Peak: 1KW Max. |
| ● | Connectors | SMA-Female |
| ● | Surface Finish | Painted Black |

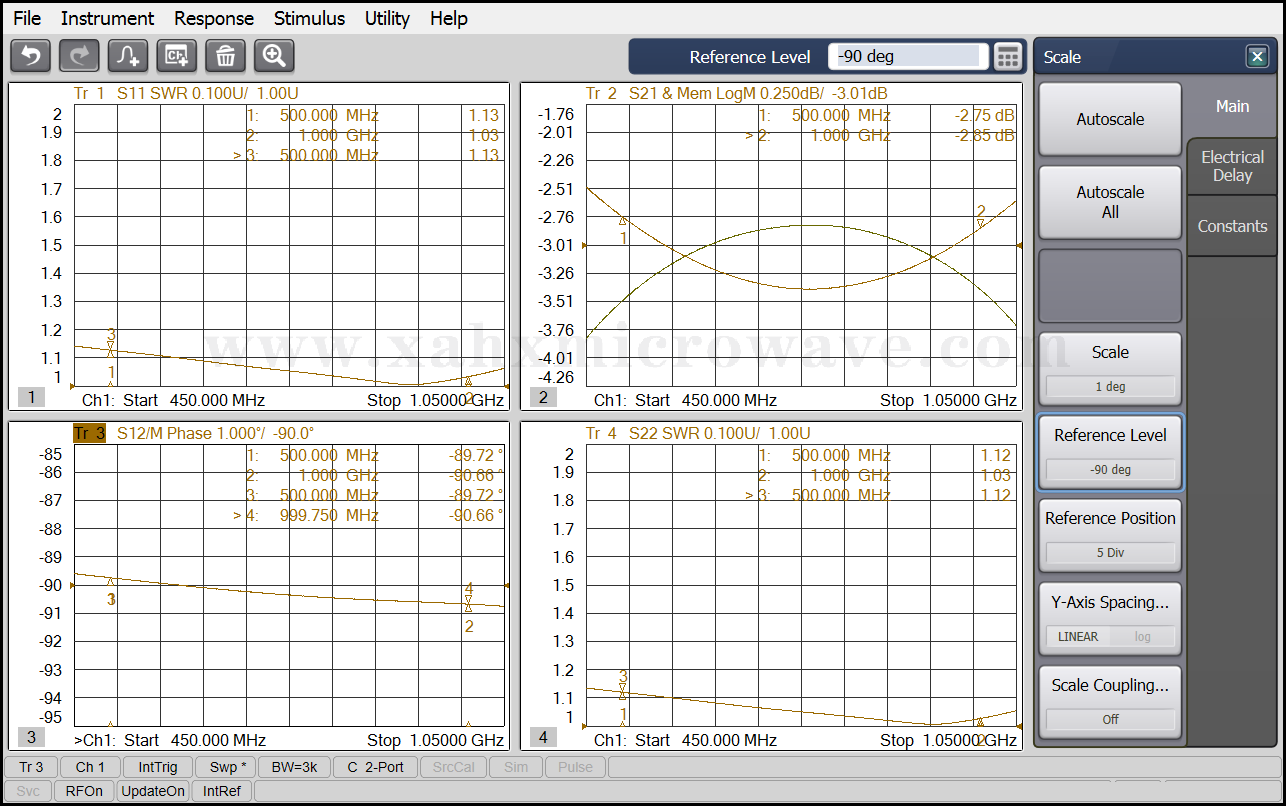

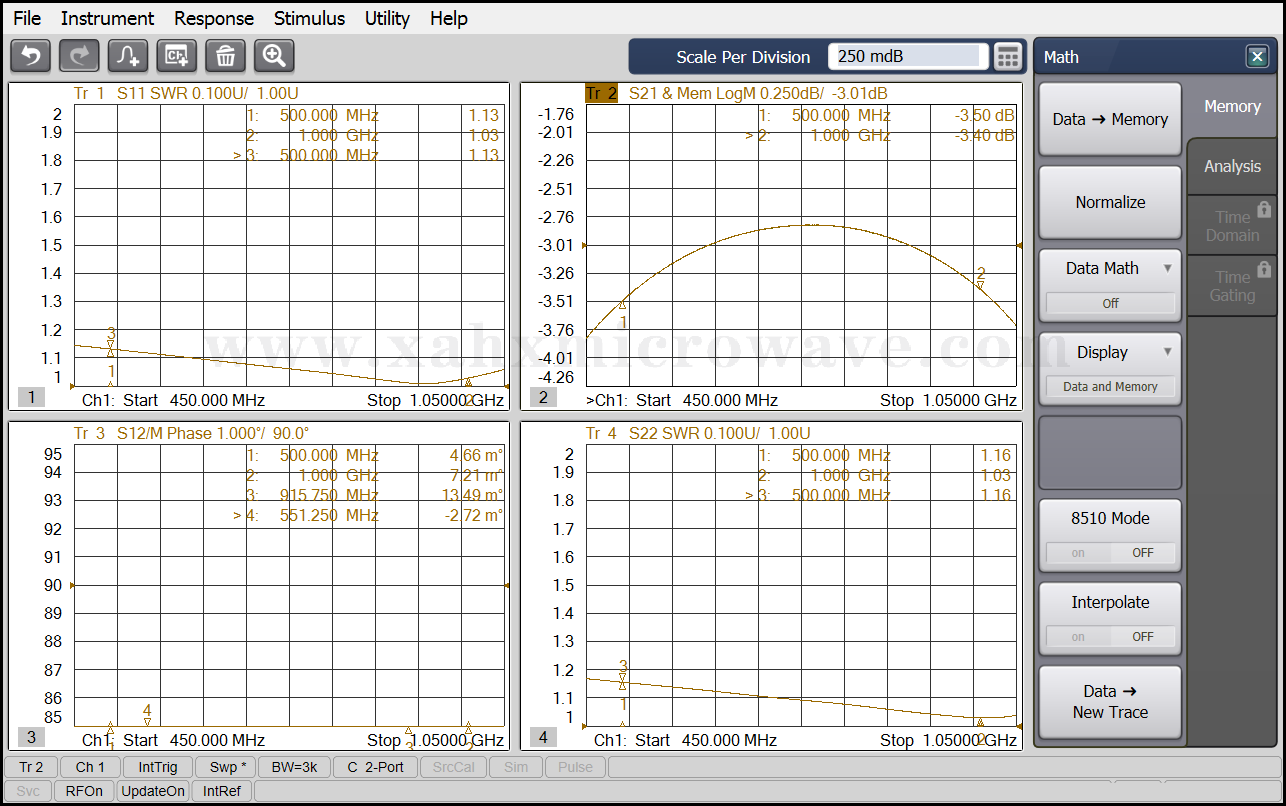

| Test Curve | ||
