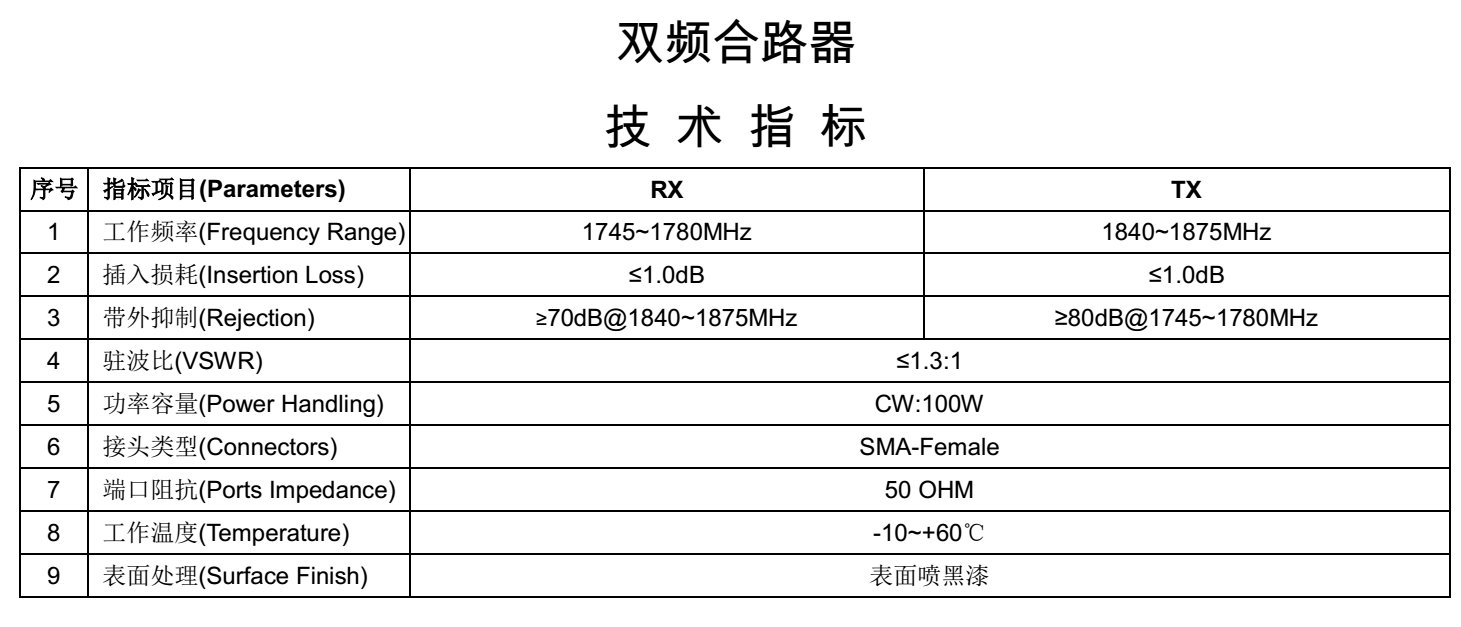

| Technical Data Sheet | |||
| S/N | Item | RX | TX |
| ● | Pass Band Frequency | 1745 ~ 1780MHz | 1840 ~ 1875MHz |
| ● | Pass Band Insertion Loss | ≤1.0dB | ≤1.0dB |
| ● | VSWR | ≤1.30:1 | ≤1.30:1 |
| ● | Stop Band Attenuation | ≥70dB @ 1840 ~ 1875MHz | ≥70dB @ 1745 ~ 1780MHz |
| ● | Impedance | 50 Ohms | |
| ● | Average Power | 100W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -10℃ ~ +60℃ | |

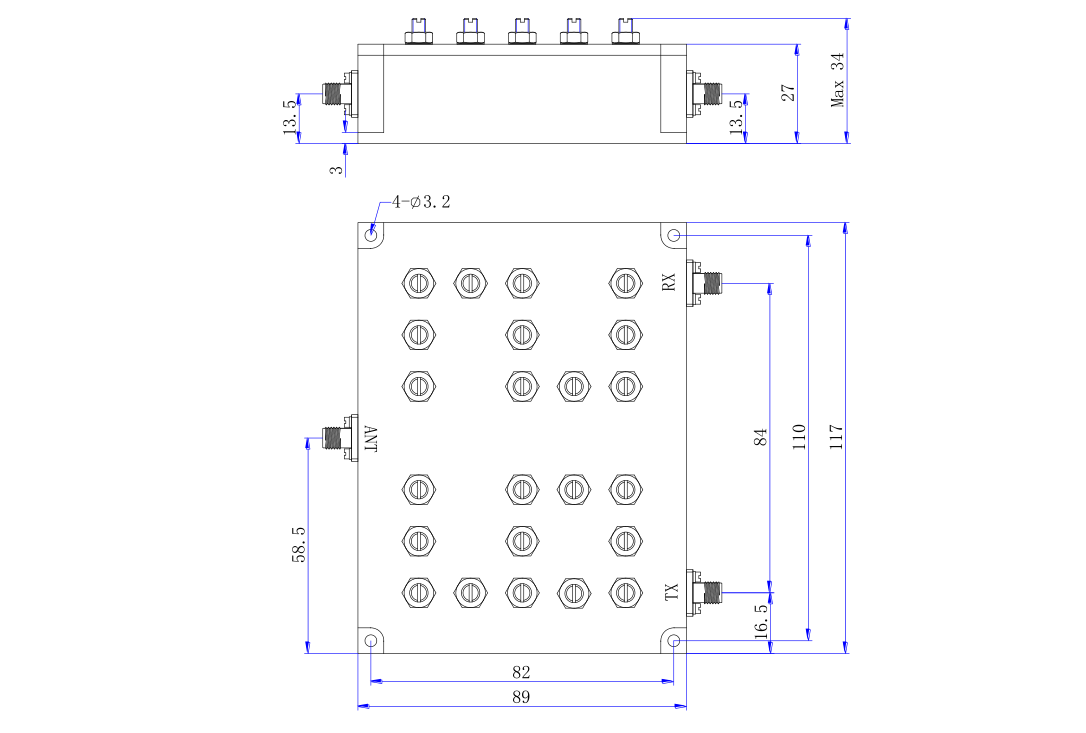

| ● | Dimensions | 89*117*34mm | |
| ● | Working Environment | Indoor | |
| Test Curve | |||
