| Technical Data Sheet | |||
| S/N | Item | RX | TX |
| ● | Center Frequency(F0) | 1970MHz | 2160MHz |
| ● | Pass Band Frequency | 1930~ 2010MHz | 2120~ 2200MHz |
| ● | Pass Band Insertion Loss | ≤1.0dB | ≤1.0dB |
| ● | VSWR | ≤1.40:1 | ≤1.40:1 |
| ● | Stop Band Rejection | ≥60dB@2120~ 2200MHz | ≥60dB@1930~ 2010MHz |
| ● | Average Power | 30W Max. | |
| ● | Impedance | 50 Ohms | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Natural conductive oxidation | |
| ● | Temperature Range | -20℃ ~ +65℃ | |

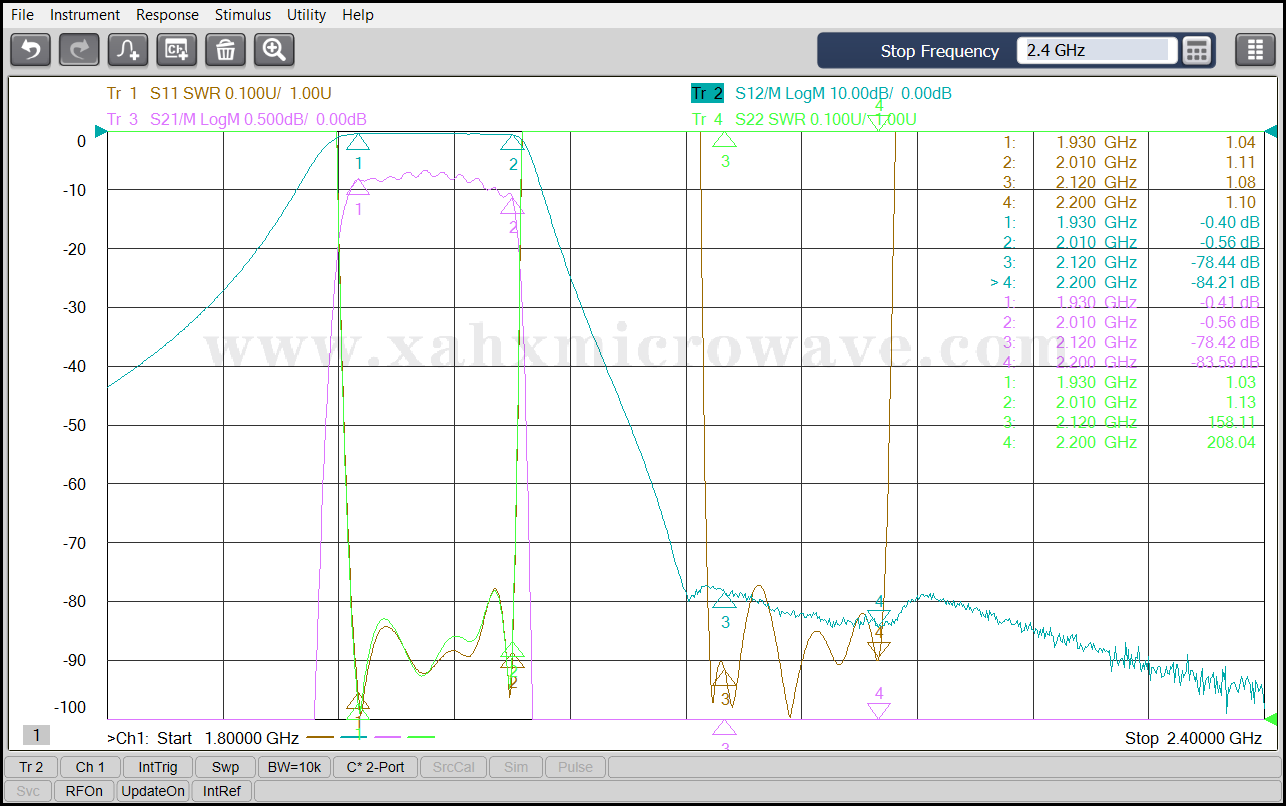

| Test Curve | |||
