| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 2.9GHz | |
| ● | Pass Band Frequency | 2.7 ~ 3.1GHz | |
| ● | Pass Band Insertion Loss | ≤0.9dB | |
| ● | Pass Band Ripple | ≤0.5dB | |
| ● | Pass Band Return Loss | ≥23dB | |
| ● | Stop Band Rejection | ≥80dB @ DC ~ 2.5GHz | ≥50dB @ 3.2 ~ 3.3GHz |
| ≥50dB @ 2.5 ~ 2.6GHz | ≥80dB @ 3.3 ~ 9.0GHz | ||
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 10W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -30℃ ~ +70℃ | |

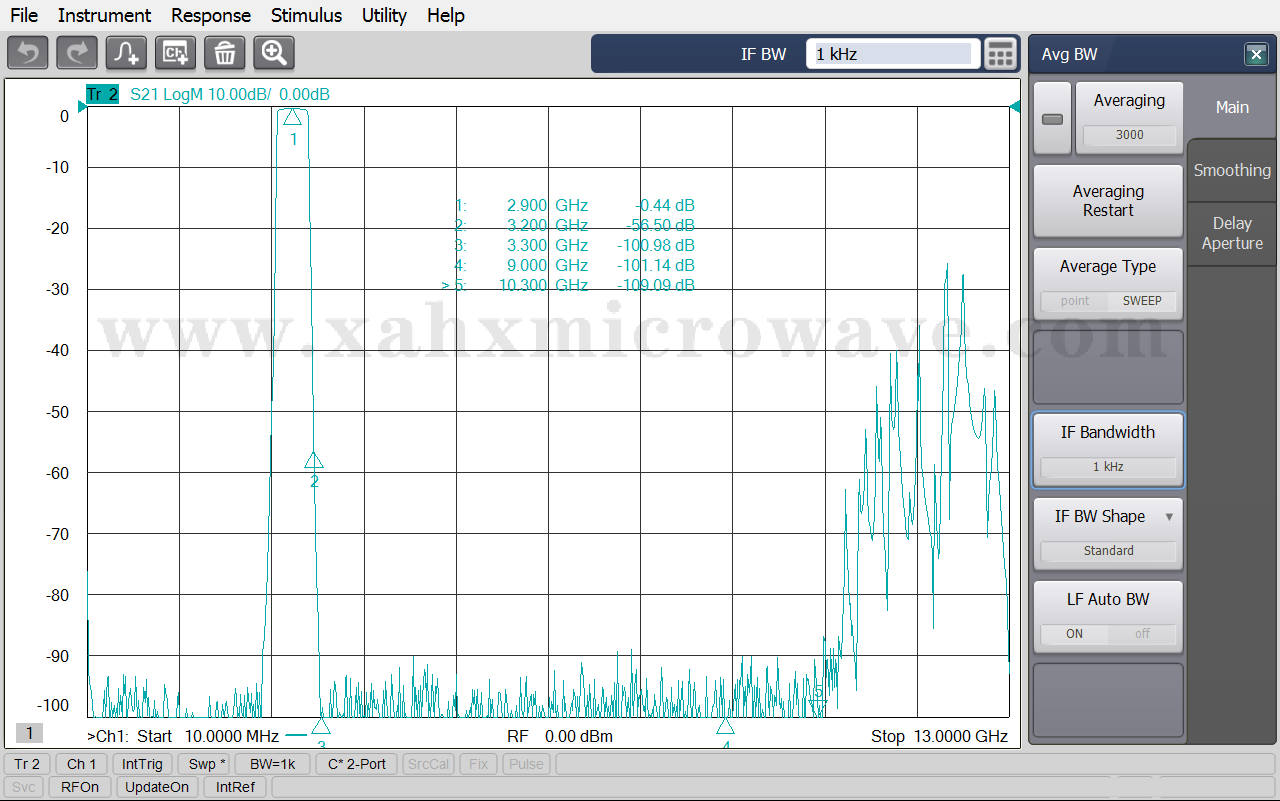

| Test Curve | |||
