| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 6500MHz | |
| ● | Pass Band Frequency | 6000 ~ 7000MHz | |
| ● | Pass Band Insertion Loss | ≤1.2dB | |
| ● | Pass Band Ripple | ≤0.6dB | |
| ● | Pass Band Return Loss | ≥23dB | |
| ● | Stop Band Rejection | ≥80dB @ DC ~ 5500MHz | ≥30dB @ 7200 ~ 7500MHz |
| ≥30dB @ 5500 ~ 5800MHz | ≥80dB @ 7500 ~ 15000MHz | ||
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 10W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |

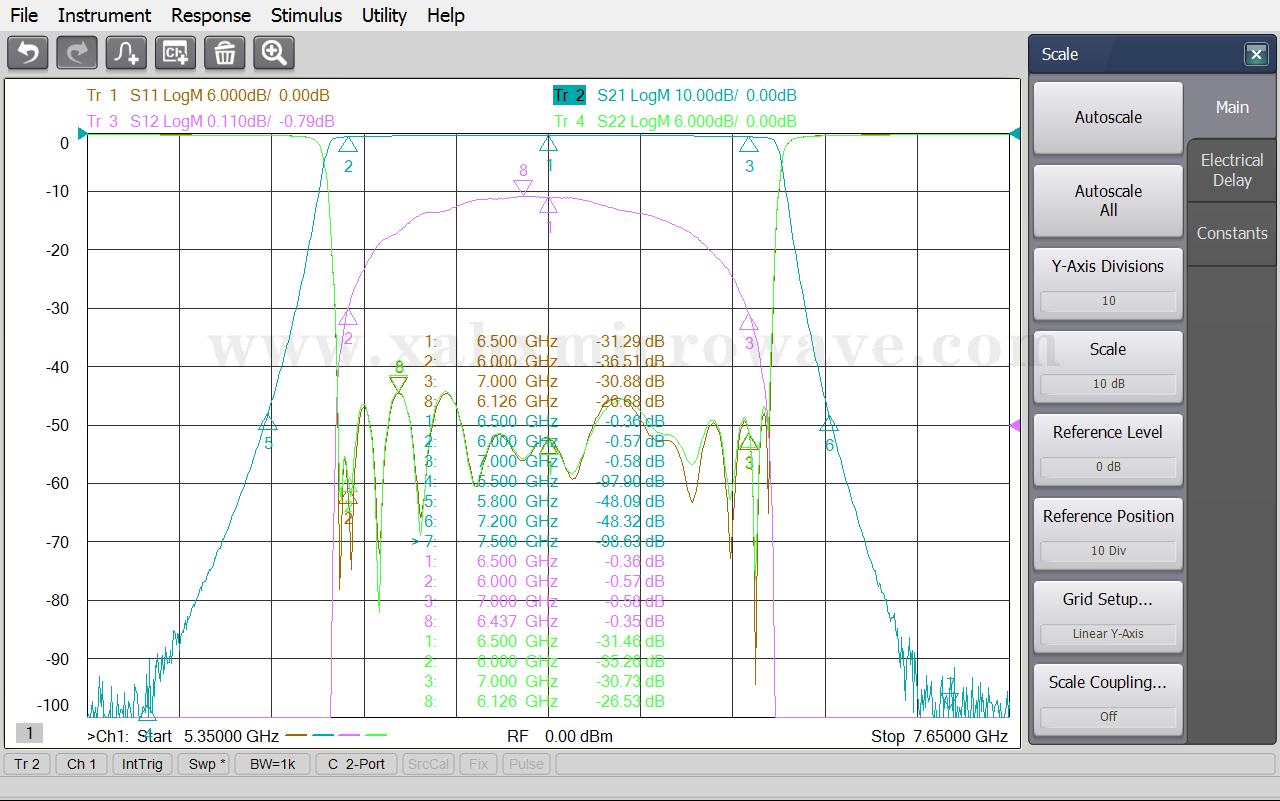

| Test Curve | |||
