| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 7500MHz | |
| ● | Pass Band Frequency | 7000 ~ 8000MHz | |
| ● | Pass Band Insertion Loss | ≤1.0dB | |
| ● | Pass Band Ripple | ≤0.6dB | |
| ● | Pass Band Return Loss | ≥23dB | |
| ● | Stop Band Rejection | ≥80dB @ DC ~ 6250MHz | ≥30dB @ 8200 ~ 8750MHz |
| ≥30dB @ 6250 ~ 6800MHz | ≥80dB @ 8750 ~ 20000MHz | ||
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 10W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |

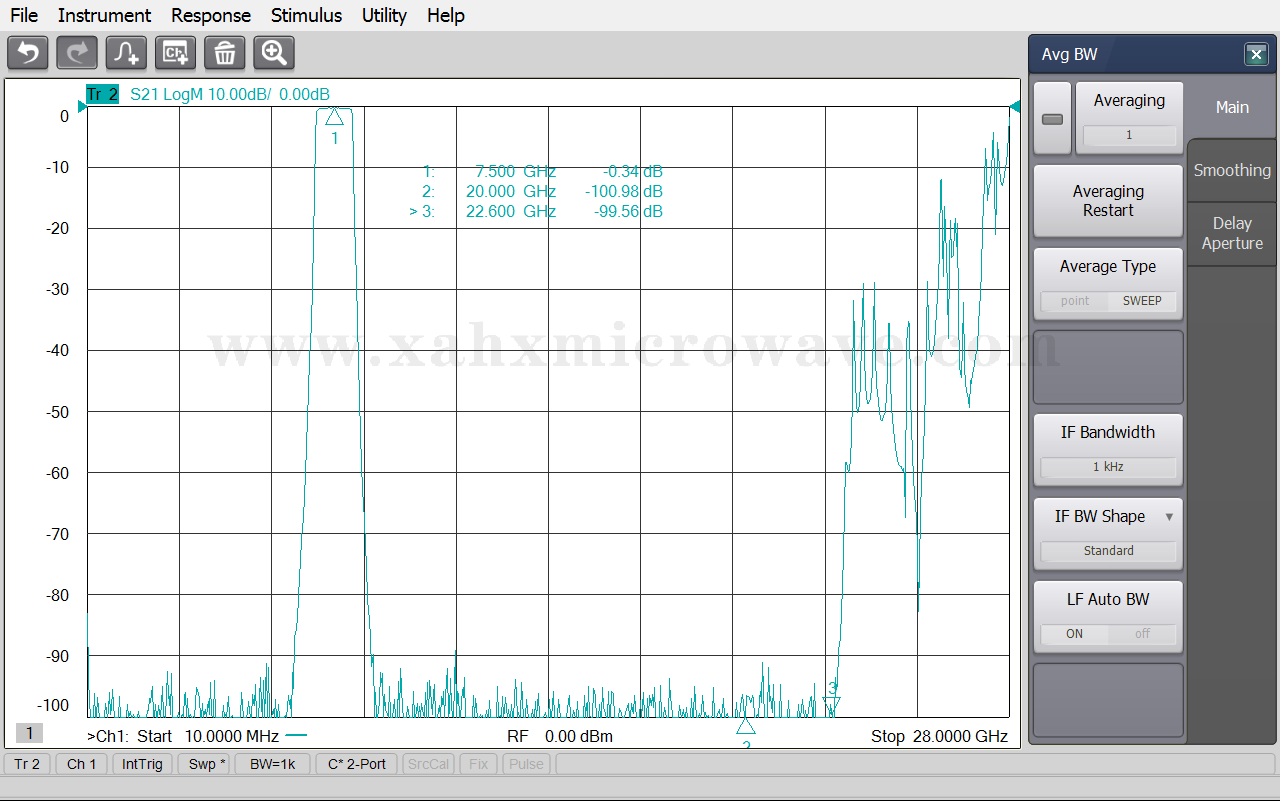

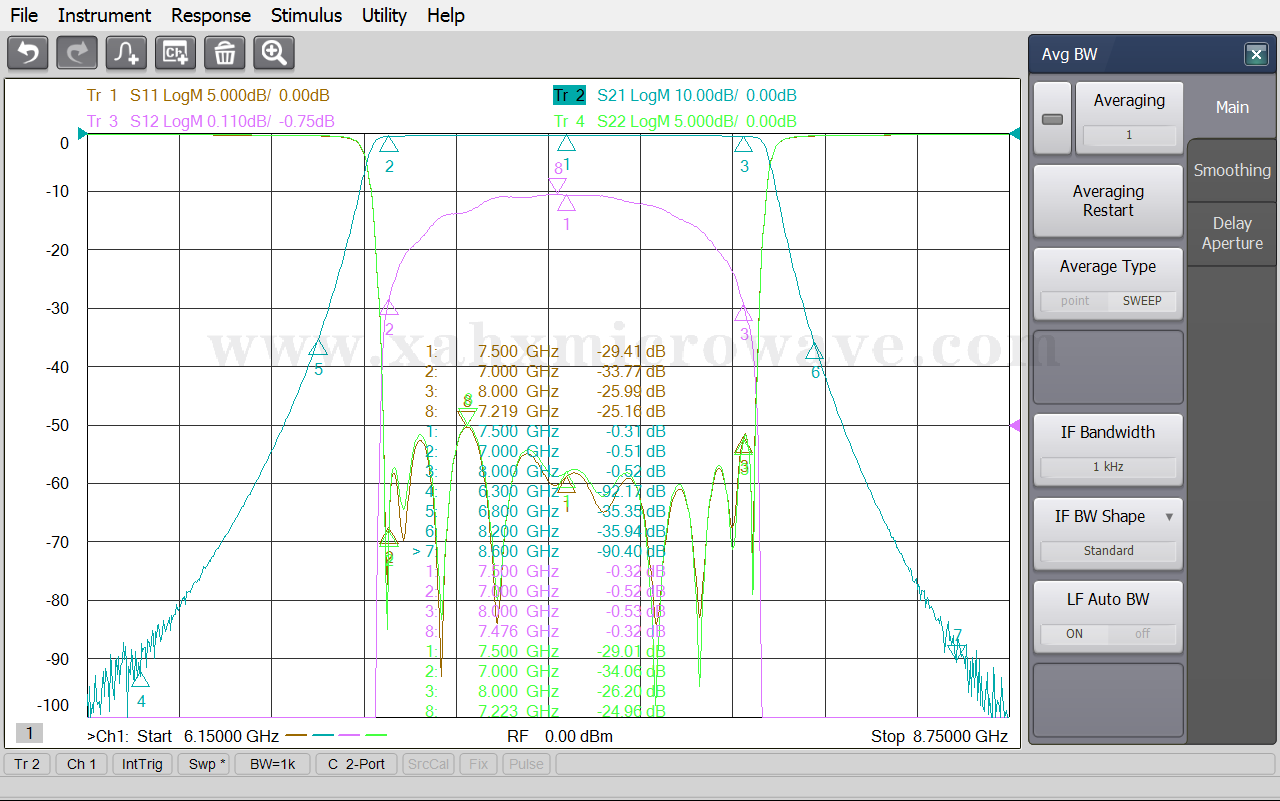

| Test Curve | |||
