| Technical Data Sheet | ||
| ● | Stop Band Frequency | 1980 ~ 2010MHz |
| ● | Stop Band Attenuation | ≥50dB |
| ● | Pass Band Frequency | DC ~ 1965MHz , 2025 ~ 6100MHz |
| ● | Pass Band Insertion Loss | ≤1.0dB @ DC ~ 1953MHz , 2037 ~ 6100MHz |
| ≤2.3dB @ 1953 ~ 1965MHz , 2025 ~ 2037MHz | ||
| ● | Pass Band Return Loss | ≥15dB |
| ● | Impedance | 50 Ohms |
| ● | Power Handling | 100W Max. |
| ● | Connectors | SMA-Female |

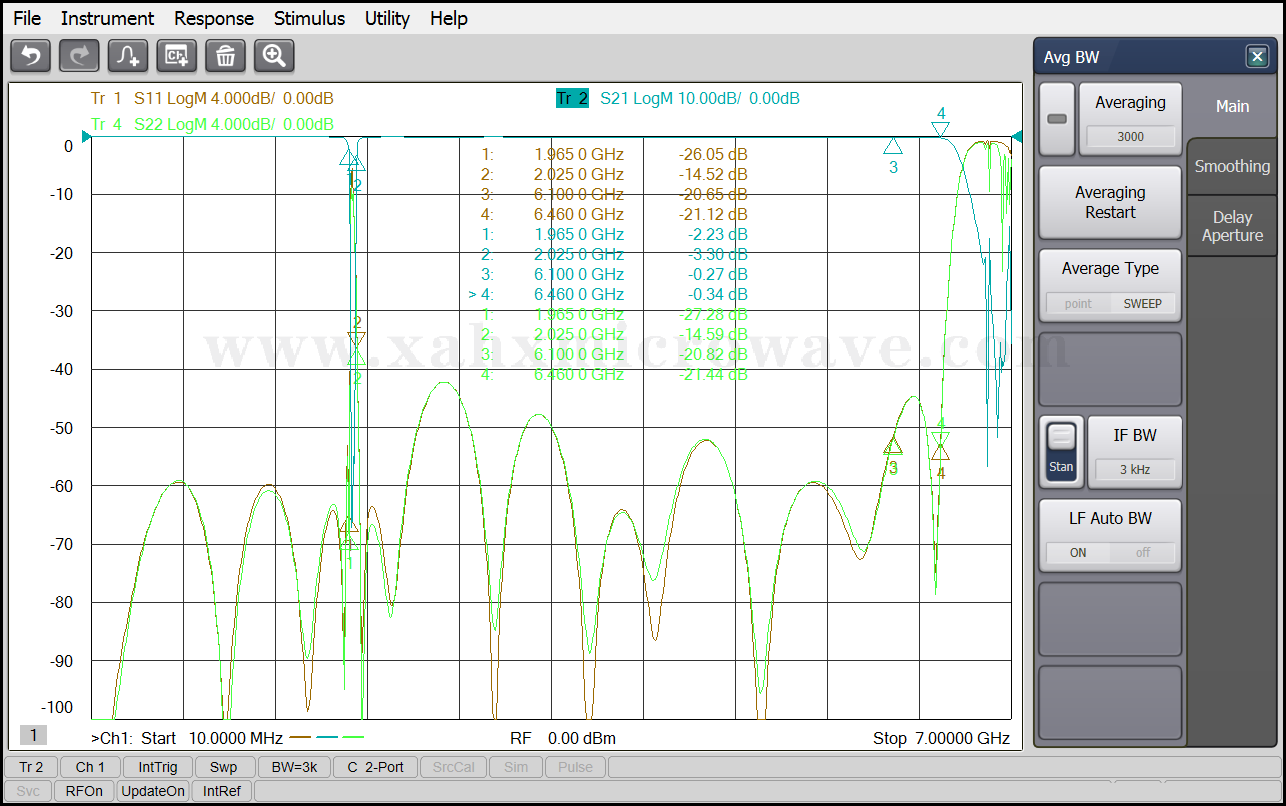

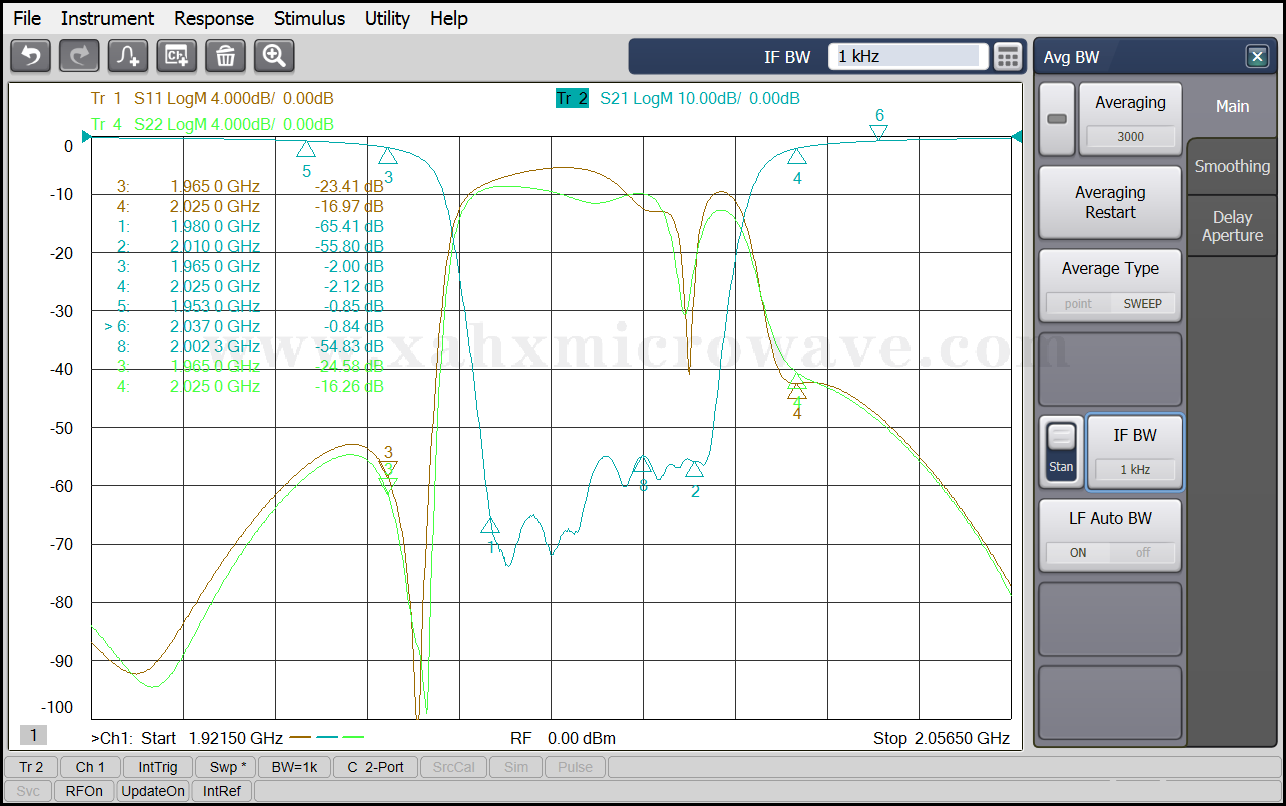

| Test Curve | ||
