Technical Data Sheet
●	Stop Band Frequency	4.8～5.0GHz
●	Stop Band Rejection	≥40dB
●	Pass Band Frequency	DC～4.73GHz & 5.07～10GHz
●	Pass Band Insertion Loss	≤2.5dB
●	Pass Band VSWR	≤1.8:1
●	Impedance	50 ohms
●	Power Handling	≤10W
●	Connectors	SMA-Male
●	Surface Finish	Black Paint

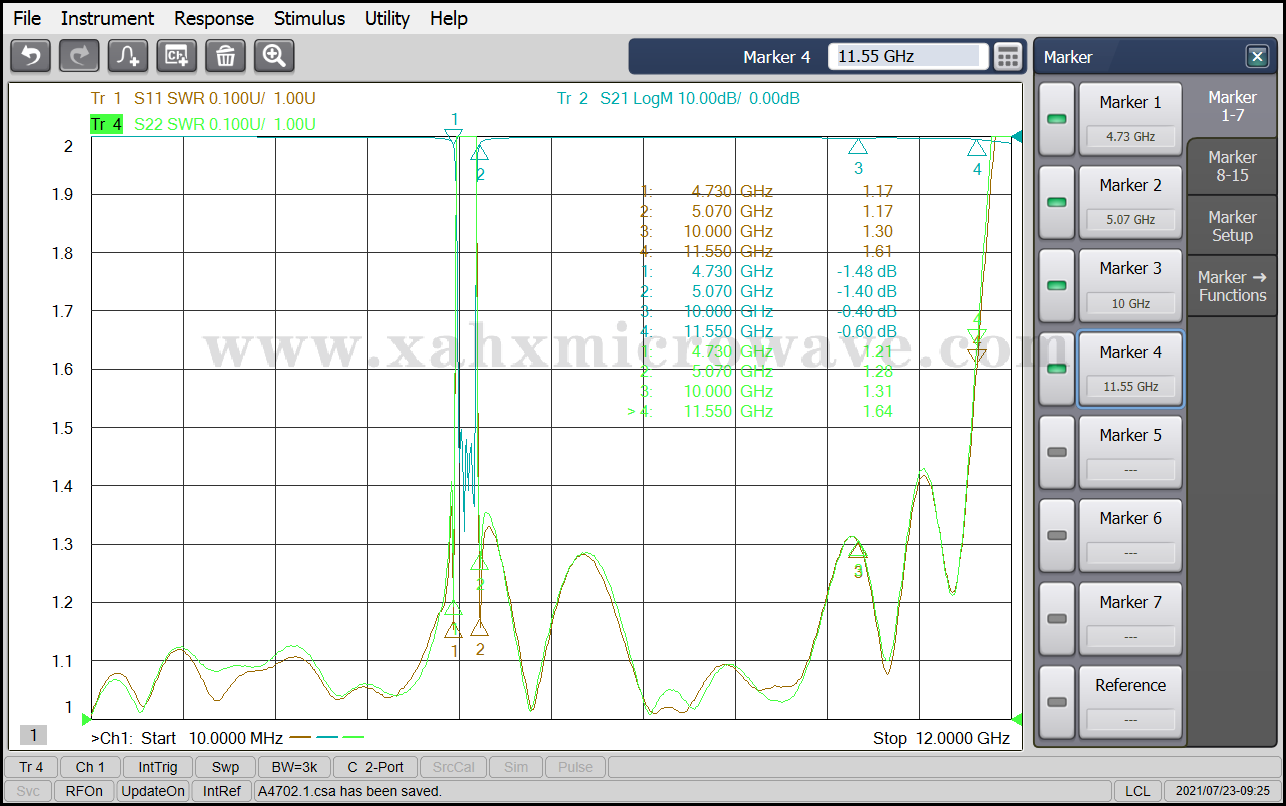

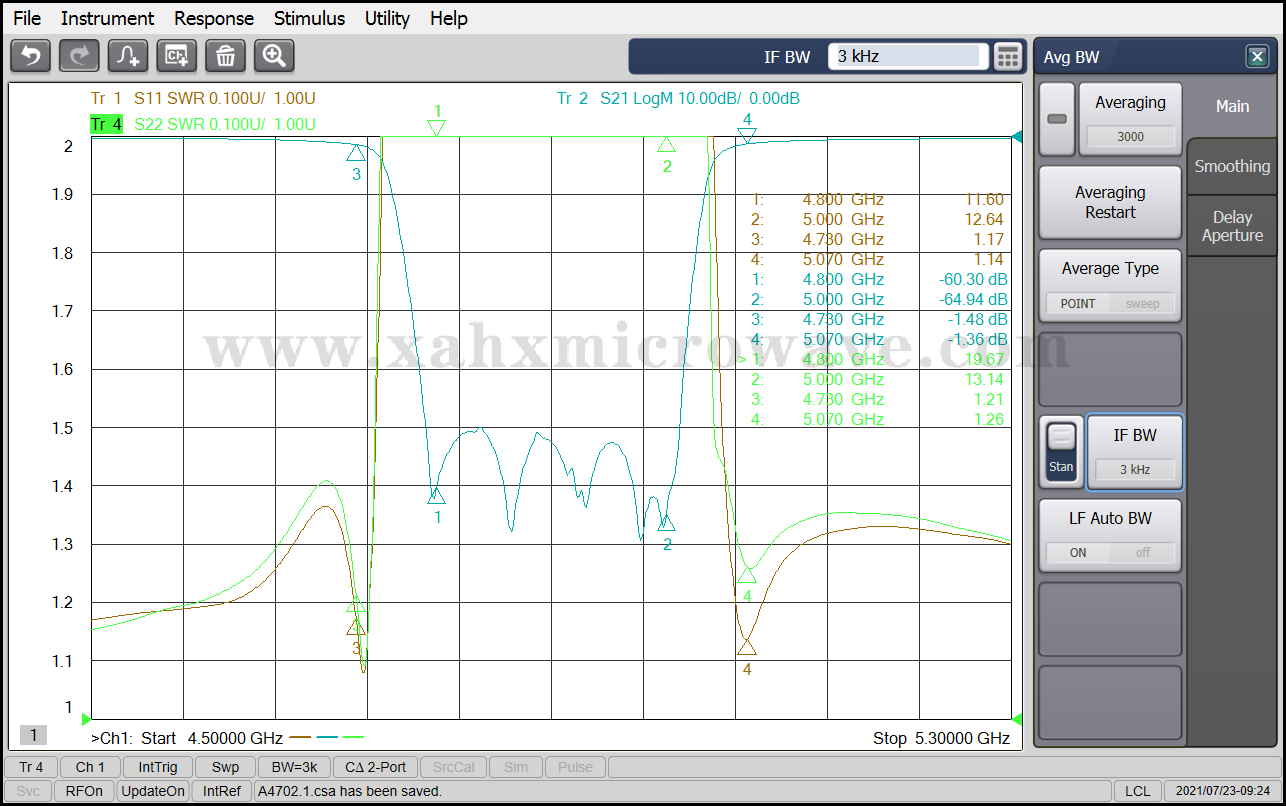

Test Curve
