| Technical Data Sheet | ||
| ● | Frequency Range | 0.5 ~ 6.0GHz |
| ● | Coupling Factor | 20dB±1.0dB |
| ● | Coupling Sensitivity | ≤±1.0dB |
| ● | Insertion Loss | ≤1.2dB (Excluding Coupling Loss 0.08dB) |
| ● | VSWR | ≤1.3:1 |
| ● | Directivity | ≥15dB |
| ● | Impedance | 50 Ohms |
| ● | Power Handling | Incident: 50W Max. / Reflected: 50W Max. |
| ● | Connectors | N-Female |
| ● | Surface Finish | Painted Black |

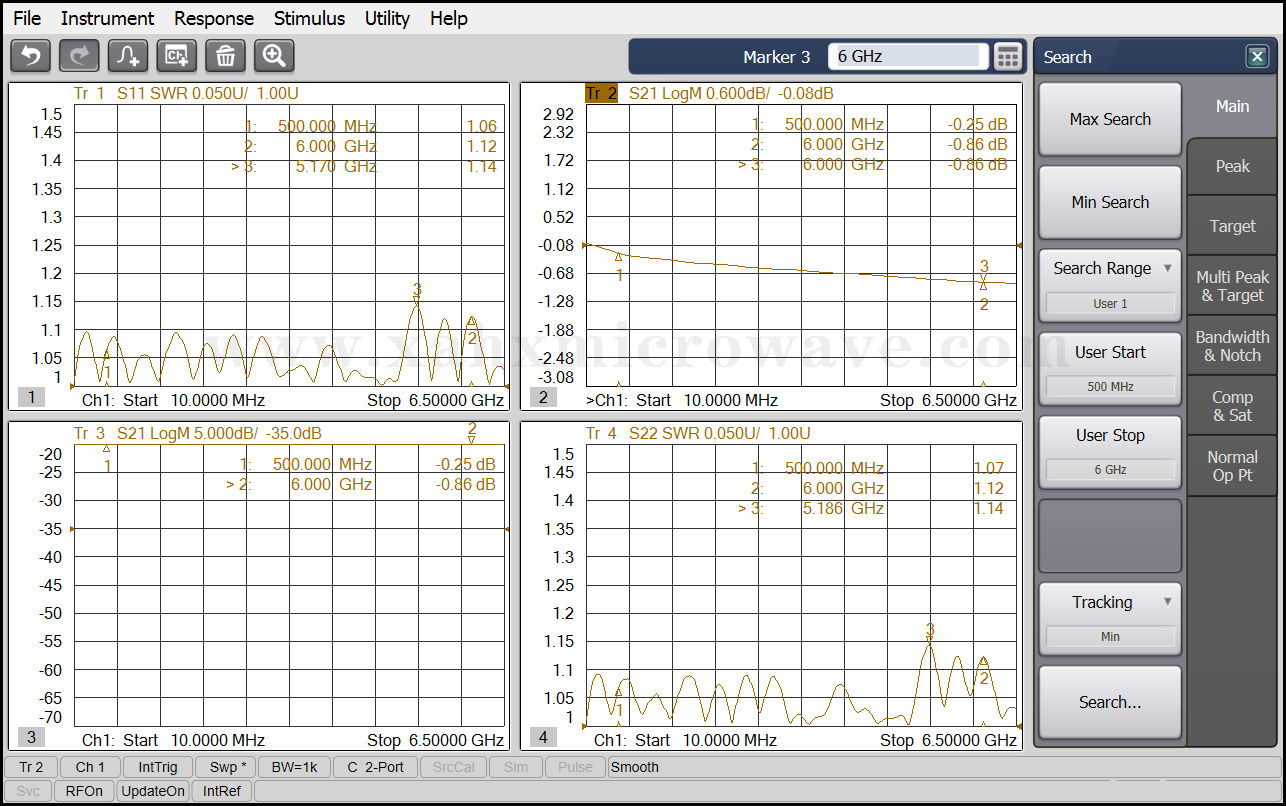

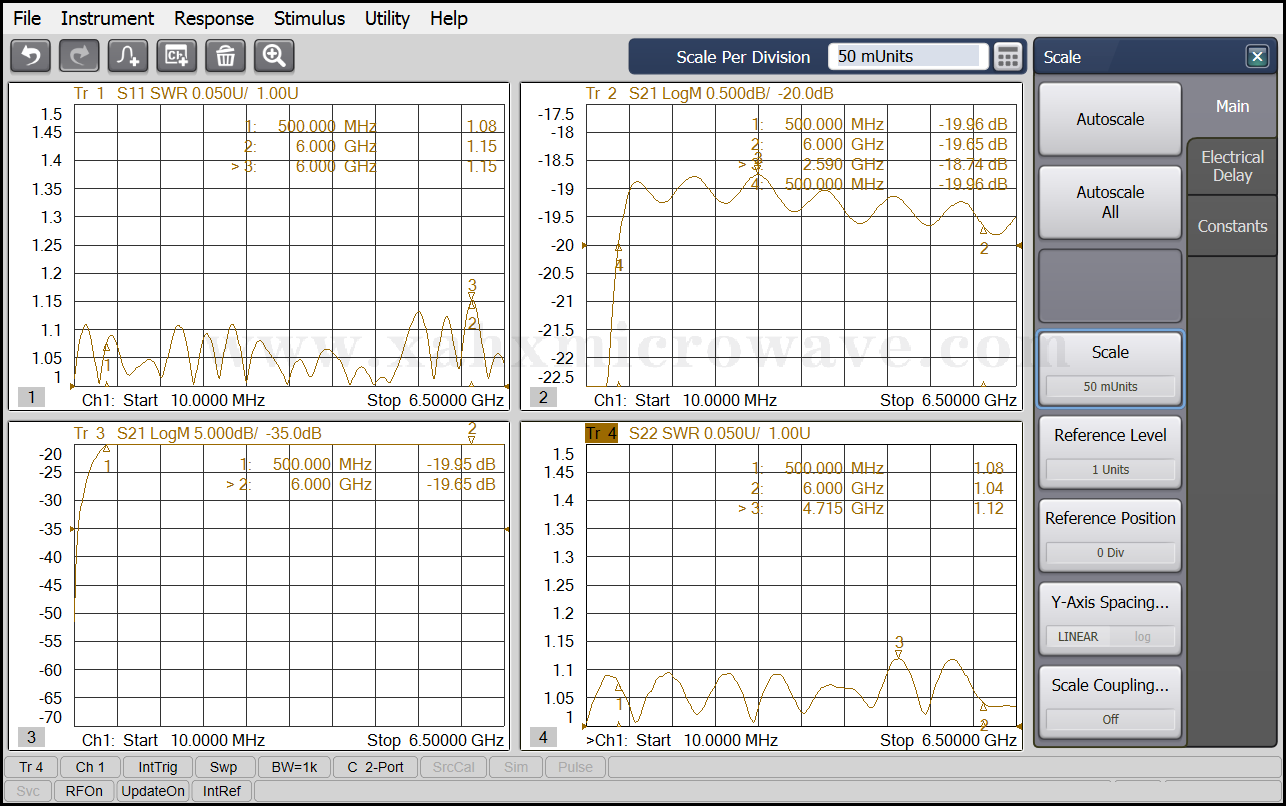

| Test Curve | ||
