| Technical Data Sheet | |||
| S/N | Item | RX | TX |
| ● | Center Frequency(F0) | 2070MHz | 2260MHz |
| ● | Pass Band Frequency | 2030 ~ 2110MHz | 2220 ~ 2300MHz |
| ● | Pass Band Insertion Loss | ≤1.0dB | ≤1.0dB |
| ● | VSWR | ≤1.50:1 | ≤1.50:1 |
| ● | Ports Isolation | ≥70dB @2220 ~ 2300MHz | ≥70dB@2030 ~ 2110MHz |
| ● | Impedance | 50 Ohms | |
| ● | Average Power | 20W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -20℃ ~ +60℃ | |

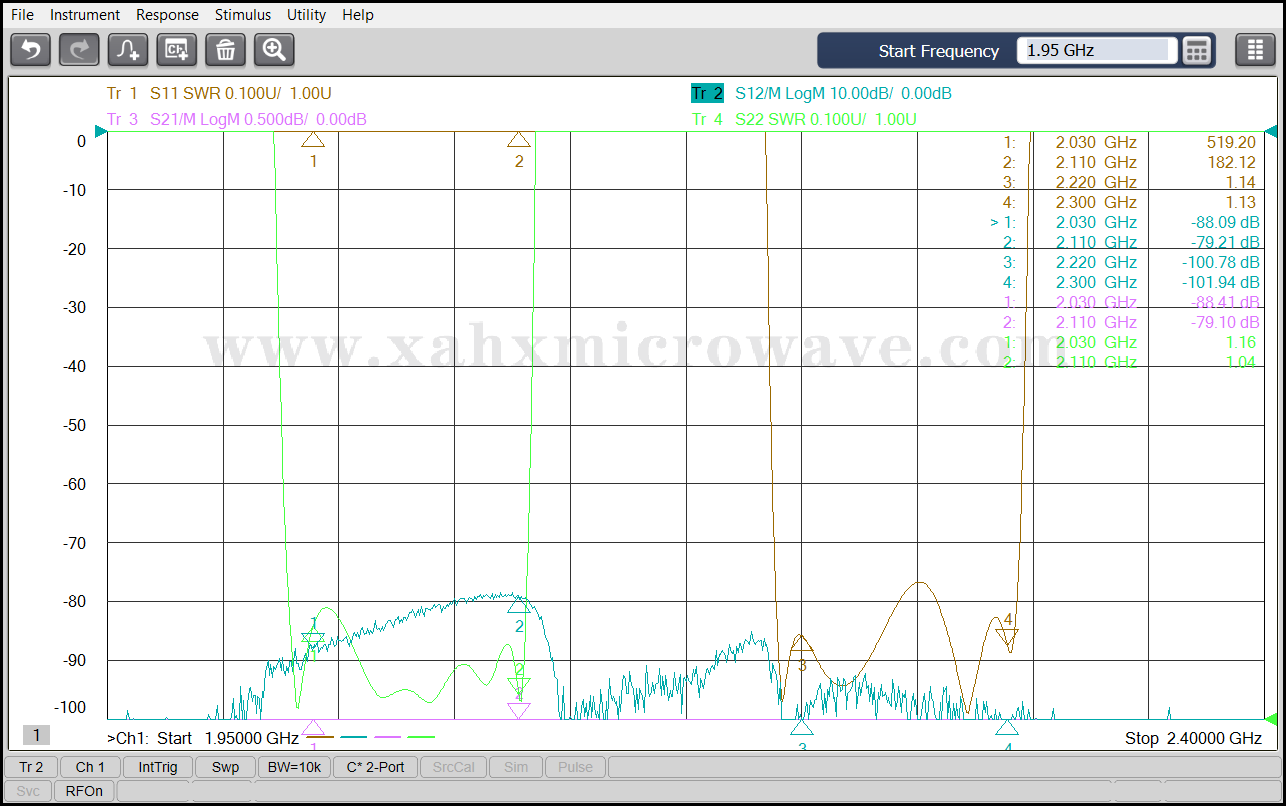

| Test Curve | |||
