Technical Data Sheet
●	Stop Band Frequency	3400～3600MHz
●	Stop Band Attenuation	≥45dB
●	Pass Band Frequency	DC～3360MHz & 3640～7000MHz
●	Pass Band Insertion Loss	≤3.0dB
●	Pass Band VSWR	≤1.5:1
●	Impedance	50 ohms
●	Surface Finish	Black Paint
●	Power Handling	≤50W
●	Connectors	SMA-Female

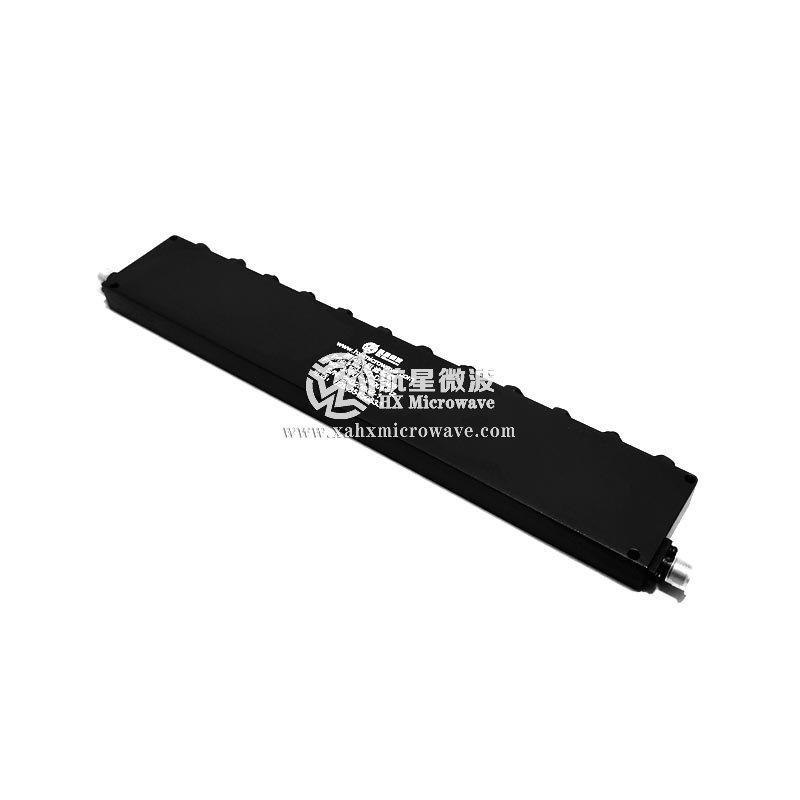

●	Configuration	As Below (Size Unit: mm)
Test Curve
