| Technical Data Sheet | ||
| ● | Stop Band Frequency | 2496 ~ 2690MHz |
| ● | Stop Band Attenuation | ≥50dB |
| ● | Pass Band Frequency | DC ~ 2436MHz , 2750 ~ 7100MHz |
| ● | Pass Band Insertion Loss | ≤1.0dB @ DC ~ 2416MHz , 2770 ~ 7100MHz |
| ≤2.0dB @ 2416 ~ 2436MHz , 2750 ~ 2770MHz | ||
| ● | Pass Band VSWR | ≤1.5:1 |
| ● | Impedance | 50 Ohms |
| ● | Power Handling | 20W Max. |
| ● | Connectors | SMA-Female |
| ● | Surface Finish | Painted Black |

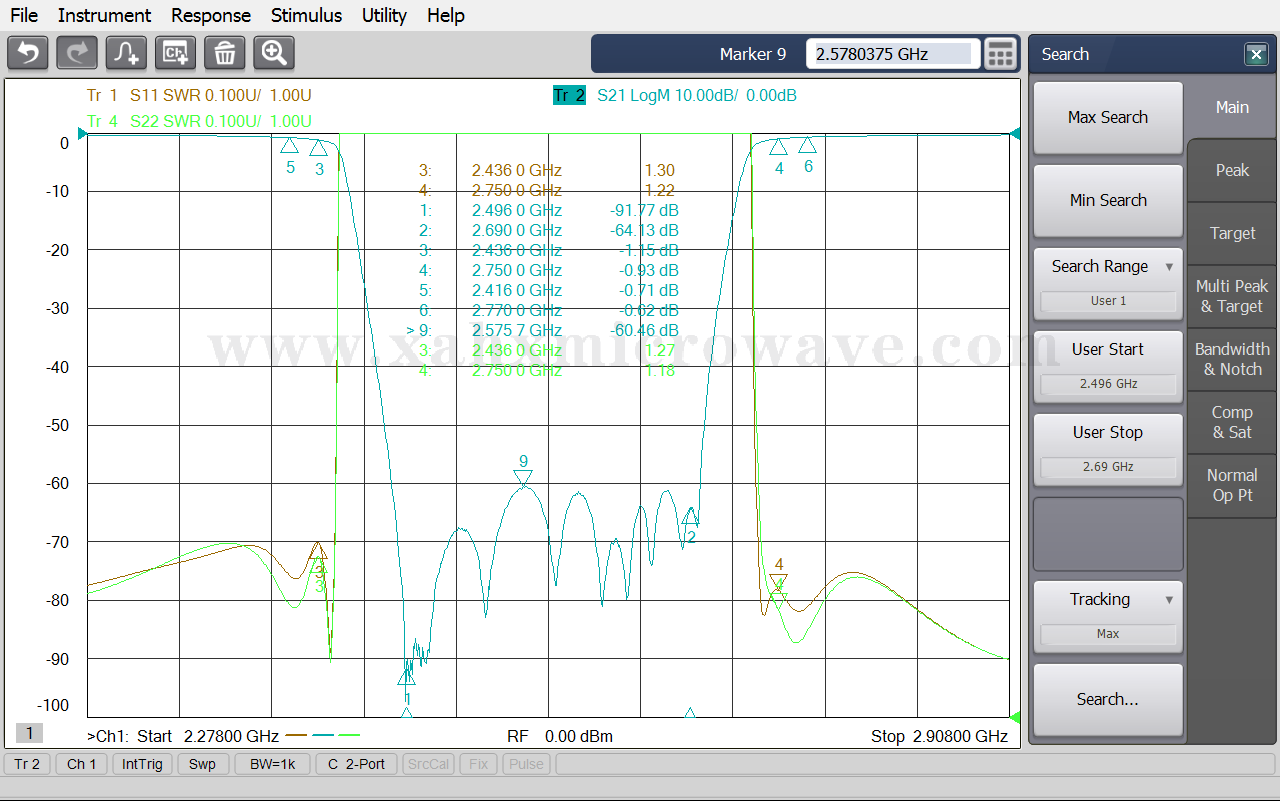

| Test Curve | ||
