| Technical Data Sheet | ||
| ● | Stop Band Frequency | 1151 ~ 1231MHz |
| ● | Stop Band Attenuation | ≥50dB |
| ● | Pass Band Frequency | DC ~ 1101MHz , 1281 ~ 3400MHz |
| ● | Pass Band Insertion Loss | ≤1.8dB |
| ● | Pass Band VSWR | ≤1.5:1 @ 500 ~ 1101MHz , 1281 ~ 3400MHz |
| ≤1.7:1 @ DC ~ 500MHz | ||
| ● | Impedance | 50 Ohms |
| ● | Power Handling | 10W Max. |
| ● | Connectors | SMA-Female |
| ● | Surface Finish | Painted Black |

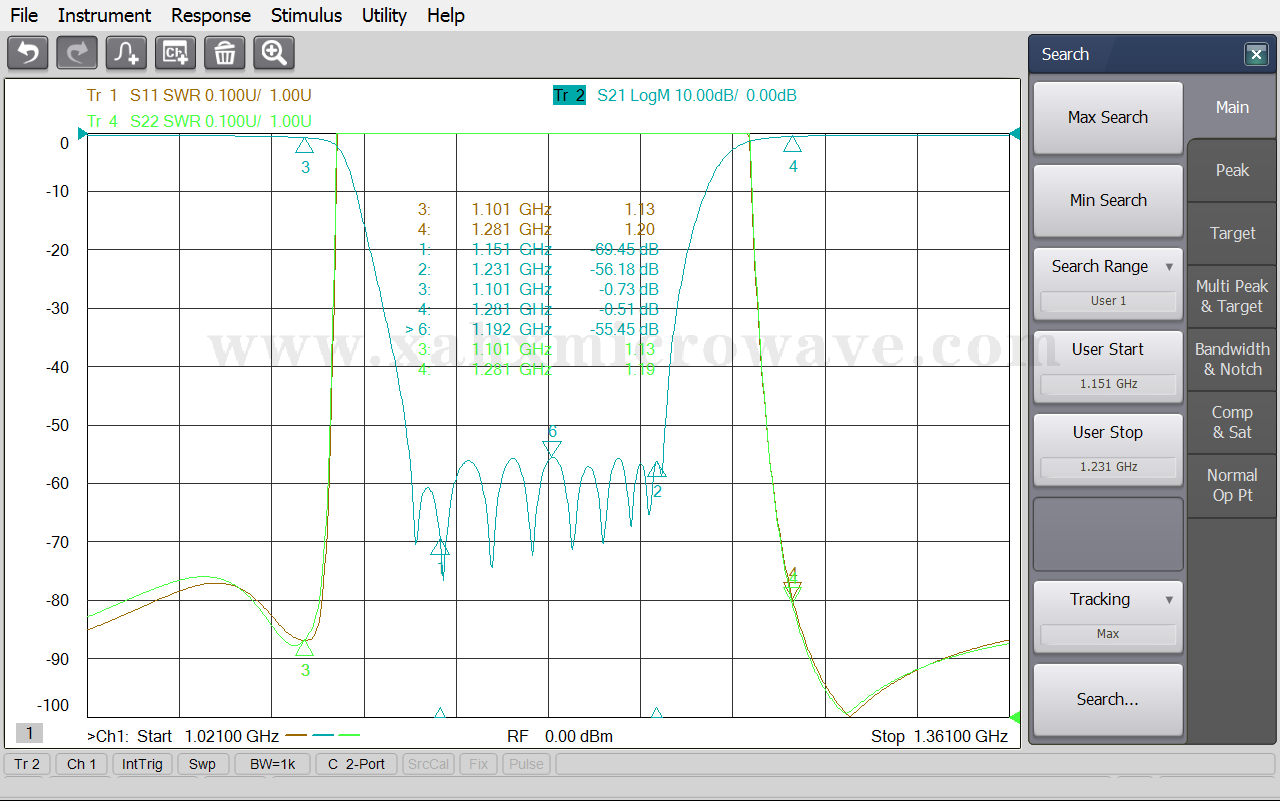

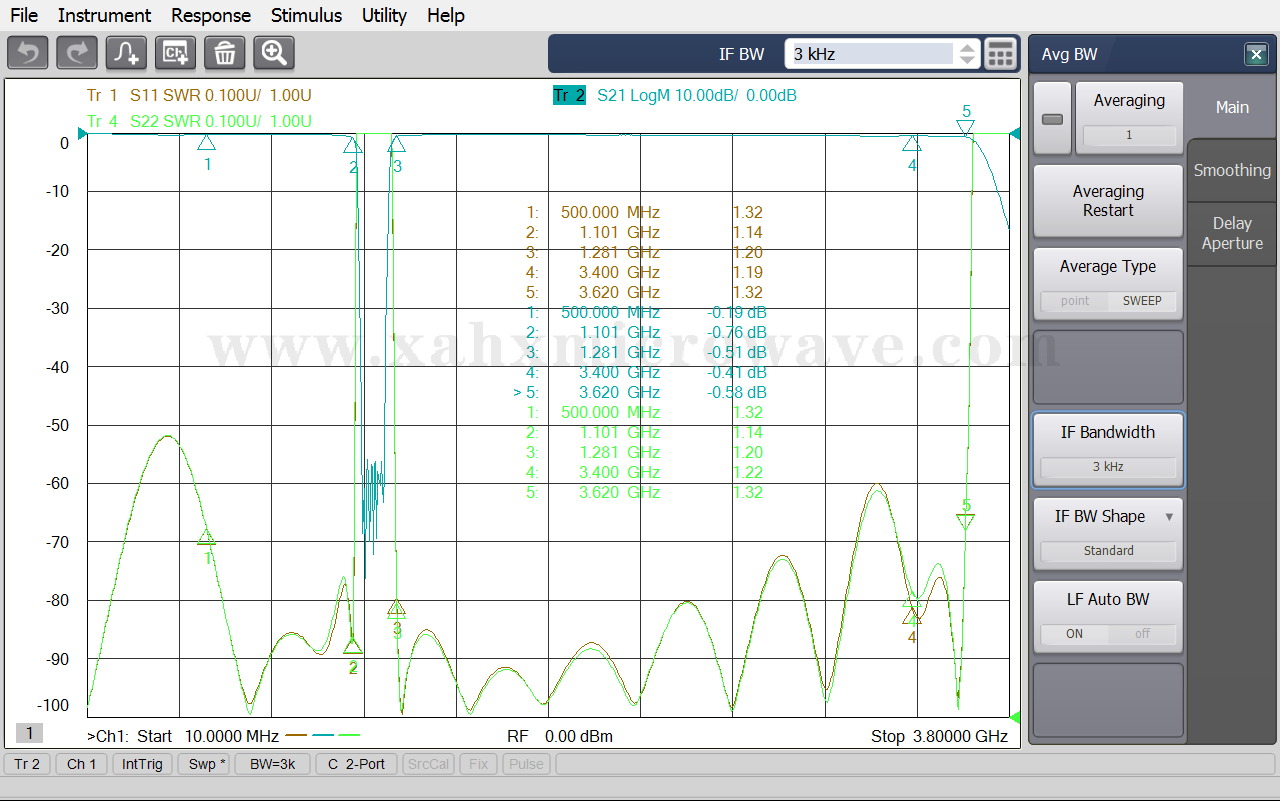

| Test Curve | ||
