| Technical Data Sheet | ||
| ● | Stop Band Frequency | 5855 ~ 5925MHz |
| ● | Stop Band Attenuation | ≥50dB |
| ● | Pass Band Frequency | DC ~ 5800MHz , 5980 ~ 12500MHz |
| ● | Pass Band Insertion Loss | ≤2.0dB |
| ● | Pass Band VSWR | ≤1.7:1 |
| ● | Impedance | 50 Ohms |
| ● | Power | 10W Max. |
| ● | Connectors | SMA-Female |
| ● | Surface Finish | Painted Black |

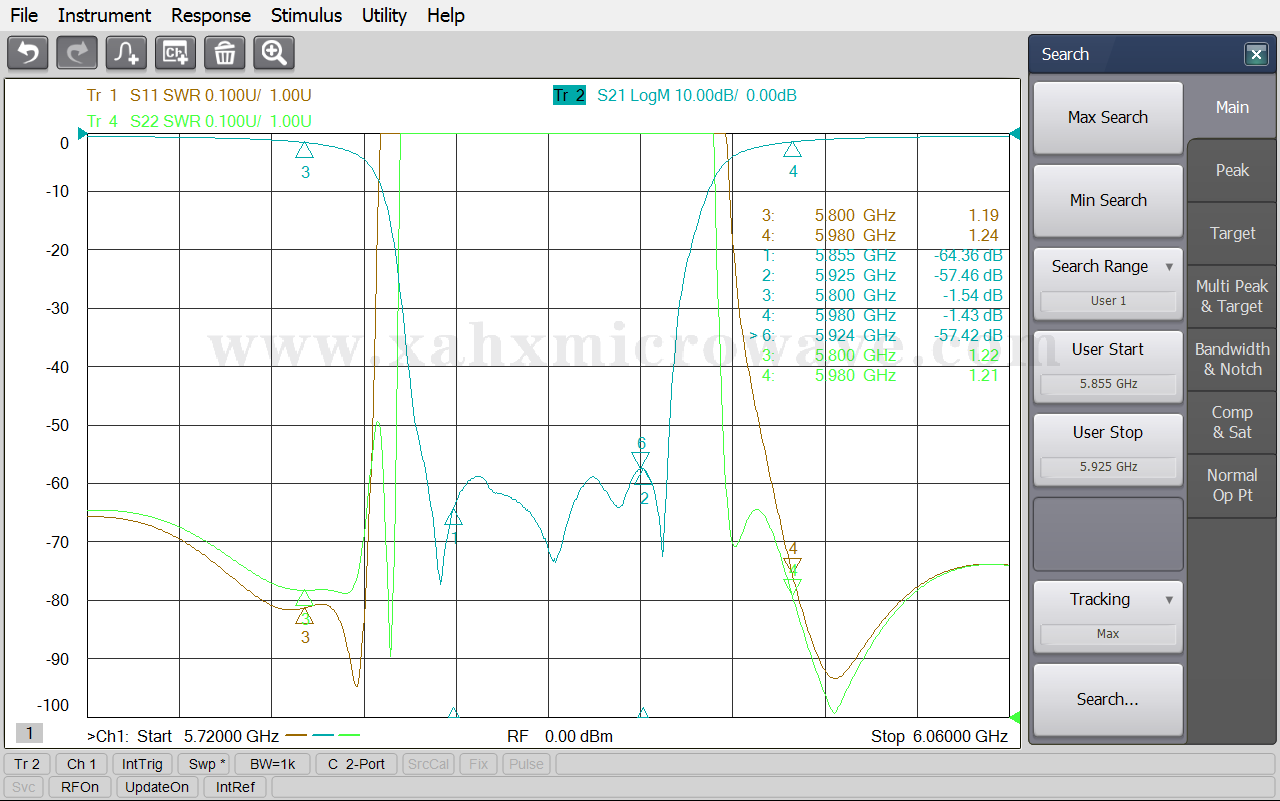

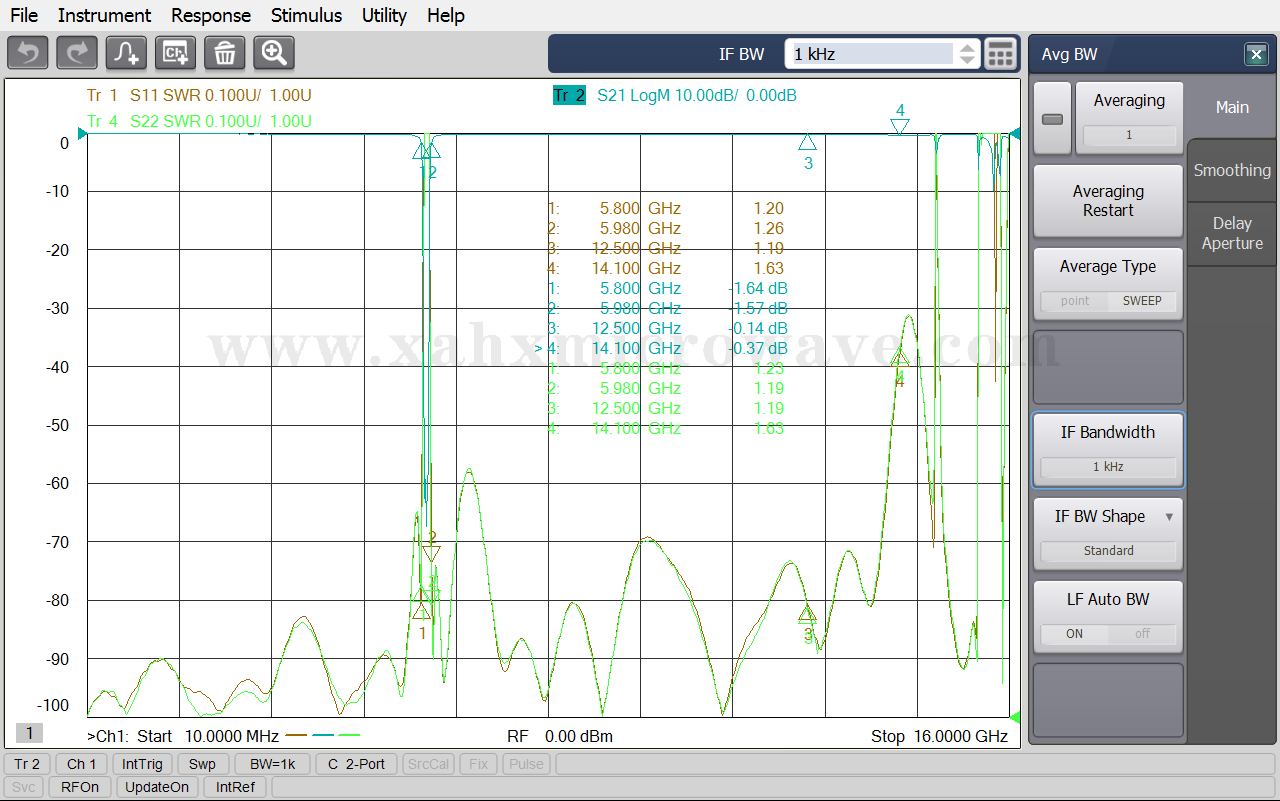

| Test Curve | ||
