| Technical Data Sheet | ||
| ● | Stop Band Frequency | 2110 ~ 2200MHz |
| ● | Stop Band Attenuation | ≥50dB |
| ● | Pass Band Frequency | DC ~ 2080MHz , 2230 ~ 6000MHz |
| ● | Pass Band Insertion Loss | ≤1.0dB @ DC ~ 2050MHz , 2260 ~ 6000MHz |
| ≤2.5dB @ 2050 ~ 2080MHz , 2230 ~ 2260MHz | ||
| ● | Pass Band VSWR | ≤1.5:1 |
| ● | Impedance | 50 Ohms |
| ● | Power Handling | 30W Max. |
| ● | Connectors | SMA-Female |
| ● | Surface Finish | Painted Black |

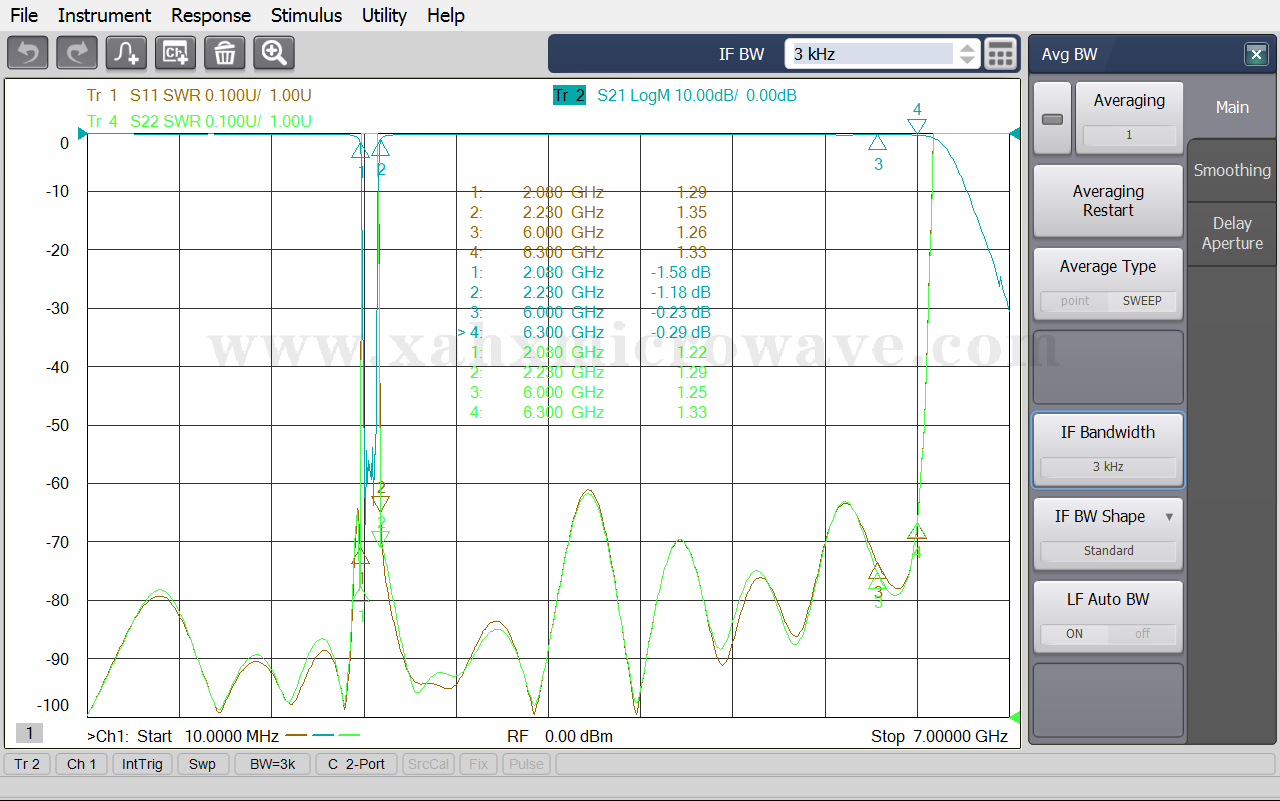

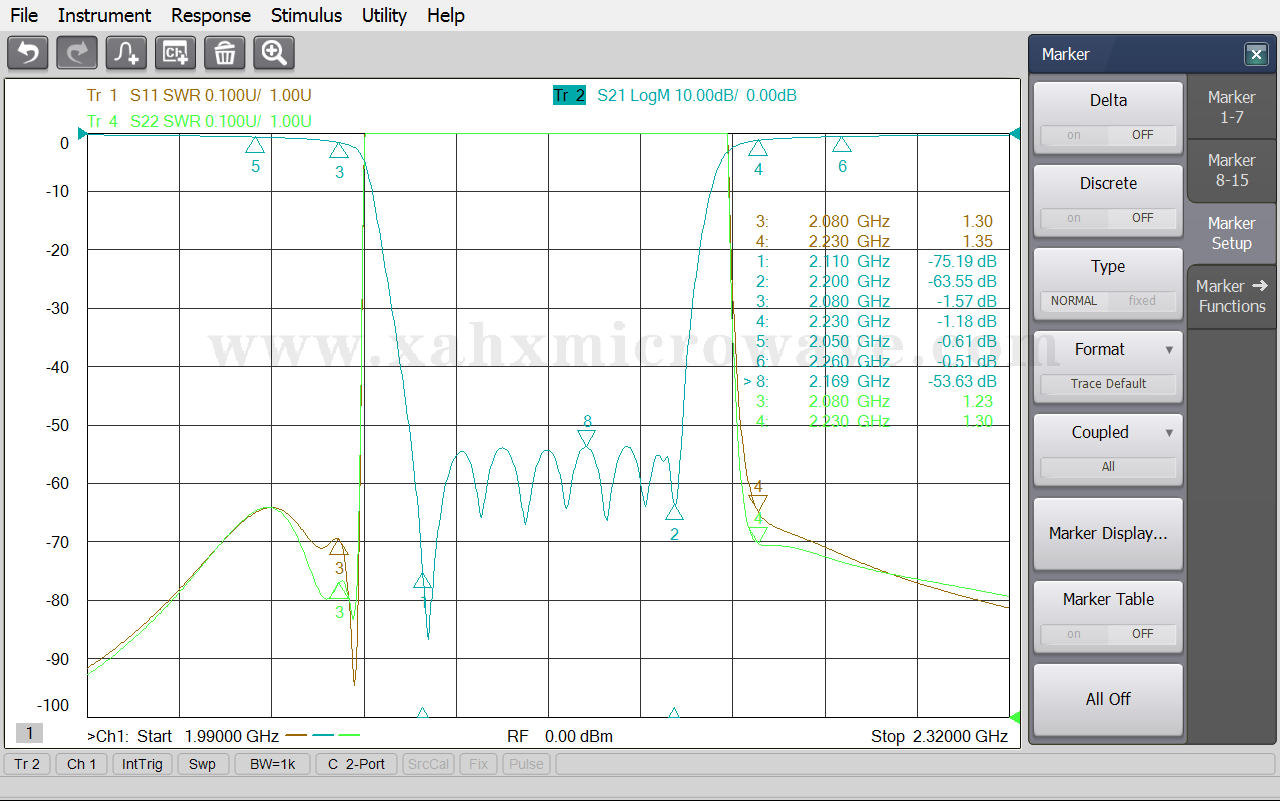

| Test Curve | ||
