| Technical Data Sheet | |||
| S/N | Item | RX | TX |
| ● | Center Frequency(F0) | 2535MHz | 2655MHz |
| ● | Pass Band Frequency | 2500 ~ 2570MHz | 2620 ~ 2690MHz |
| ● | Pass Band Insertion Loss | ≤1.0dB | ≤1.0dB |
| ● | Pass Band Ripple | ≤0.5dB | ≤0.5dB |
| ● | Pass Band Return Loss | ≥18dB | ≥18dB |
| ● | Stop Band Attenuation | ≥70dB @ 2620 ~ 2690MHz | ≥70dB @ 2500 ~ 2570MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power | 30W Max. | |
| ● | Connectors | N-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Working Environment | Indoor | |

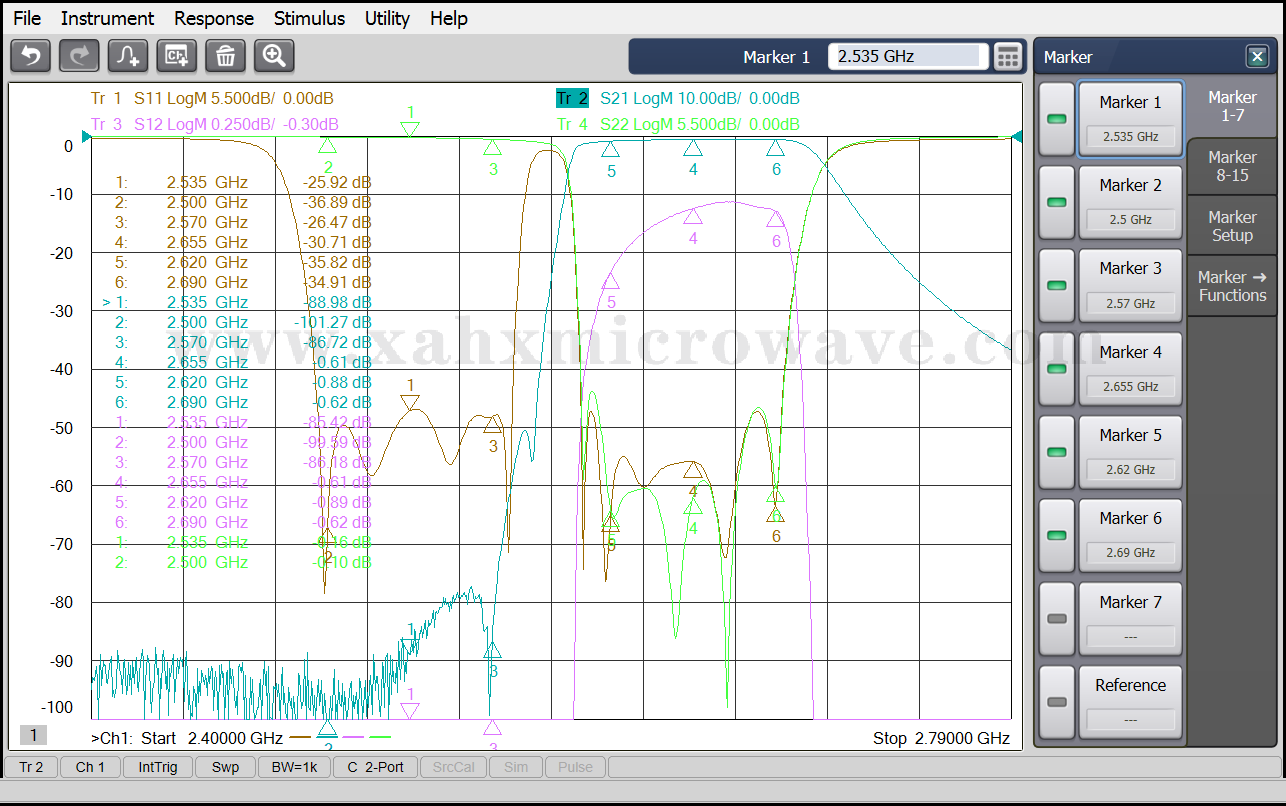

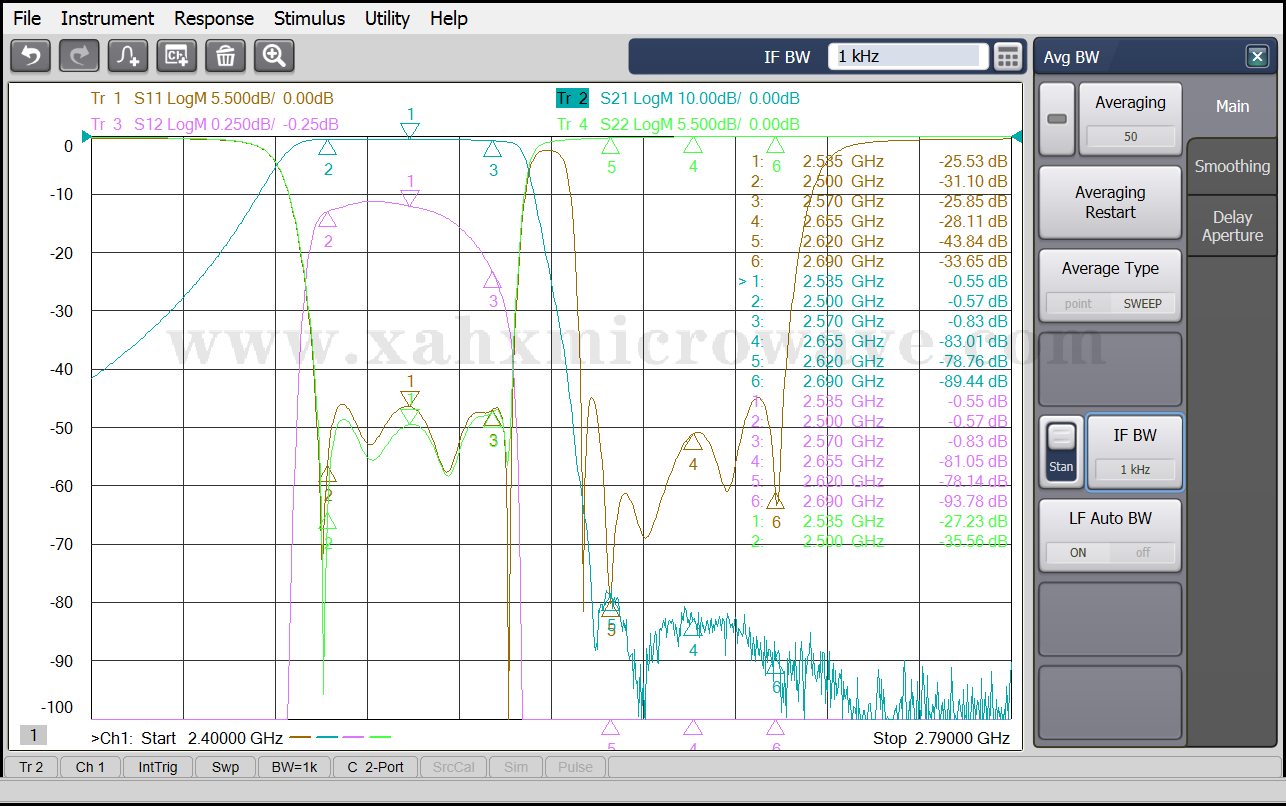

| Test Curve | |||
