Technical Data Sheet
●	Center Frequency(F0)	5.0MHz
●	Pass Band Frequency	4.5 ~ 5.5MHz
●	Pass Band Insertion Loss	≤1.5dB
●	Pass Band Ripple	≤0.8dB
●	Pass Band VSWR	≤1.4:1
●	Stop Band Rejection	≥60dB @ DC ~ 3.0MHz	≥60dB @ 7.5 ~ 100MHz
●	Impedance	50 Ohms
●	Power Handling	1.0W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

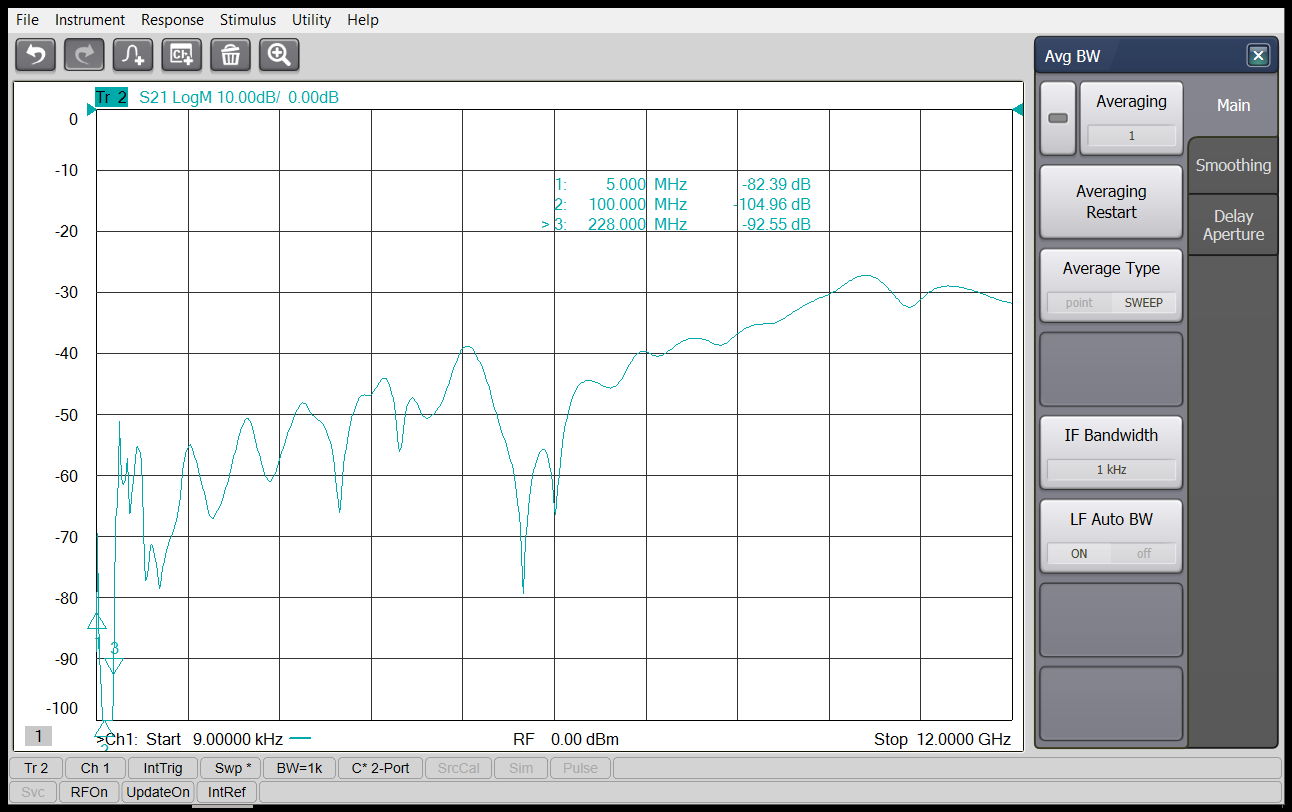

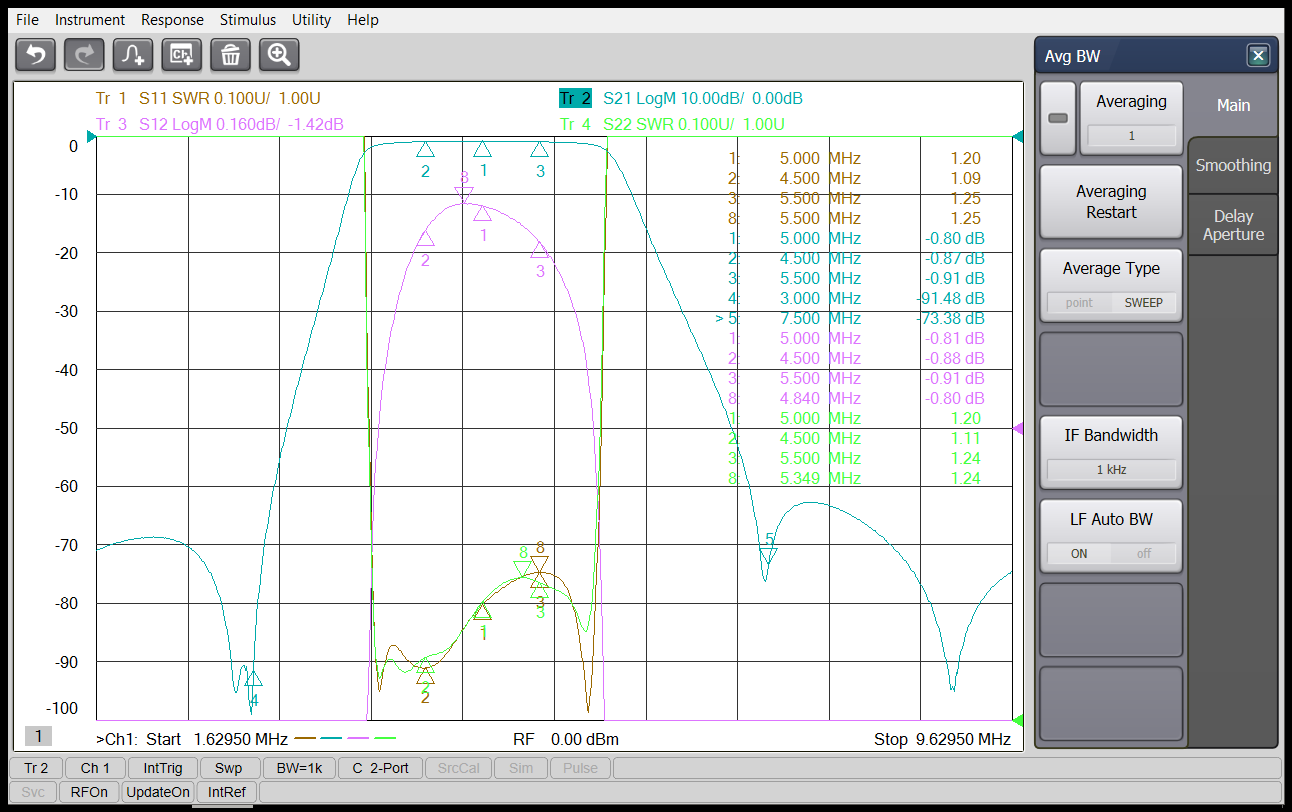

Test Curve
