| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 15MHz | |
| ● | Pass Band Frequency | 13 ~ 17MHz | |
| ● | Pass Band Insertion Loss | ≤1.8dB | |
| ● | Pass Band Ripple | ≤0.8dB | |
| ● | Pass Band VSWR | ≤1.4:1 | |
| ● | Stop Band Rejection | ≥60dB @ DC ~ 9.0MHz | ≥60dB @ 25 ~ 100MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 1.0W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -30℃ ~ +70℃ | |

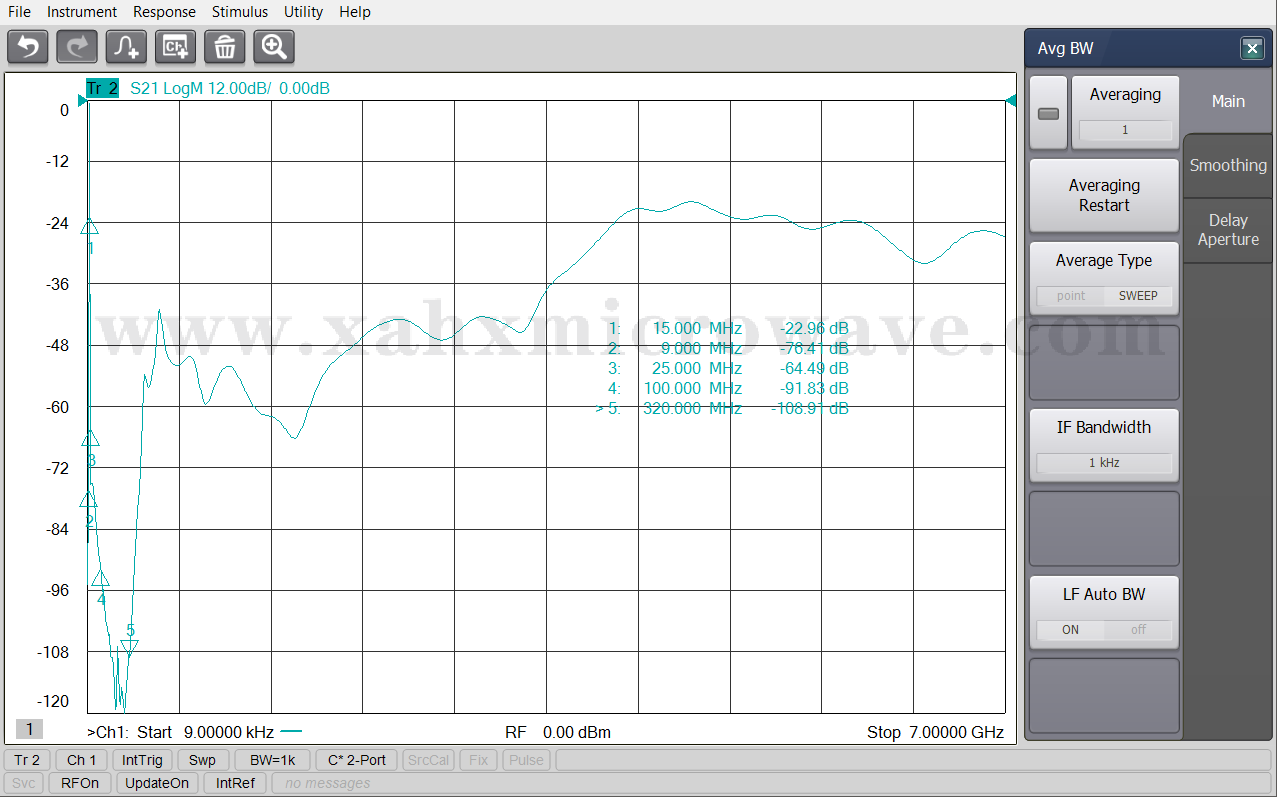

| Test Curve | |||
