Technical Data Sheet
●	Center Frequency	105MHz
●	Pass Band Frequency	100 ~ 110MHz
●	Pass Band Insertion Loss	≤1.8dB
●	Pass Band Ripple	≤0.3dB
●	Pass Band Return Loss	≥15dB
●	Stop Band Rejection	≥40dB @ DC ~ 80MHz	≥40dB @ 137 ~ 500MHz
●	Impedance	50 Ohms
●	Power Handling	1.0W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

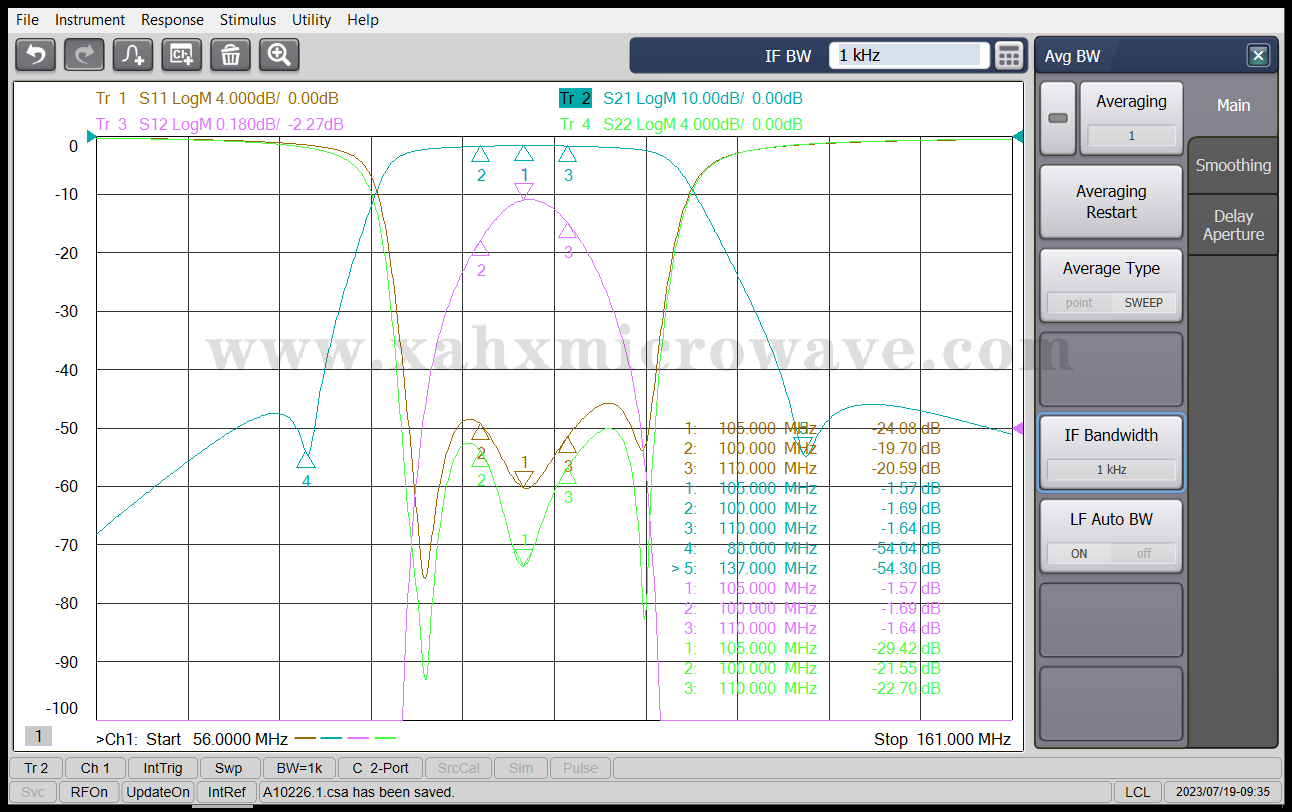

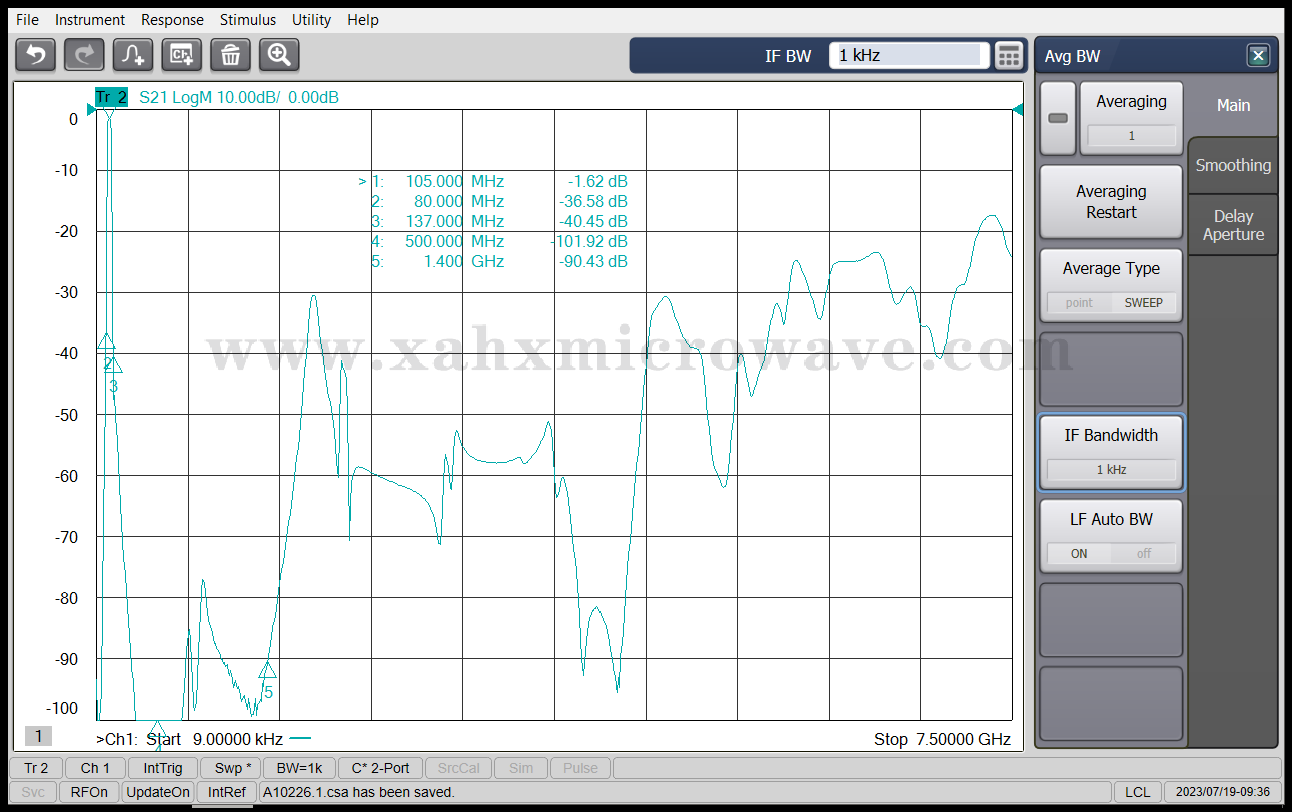

Test Curve
