| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 3100MHz | |
| ● | 3.0dB Bandwidth | 600MHz (2800 ~ 3400MHz) | |
| [Deviation: ±30MHz @ Temperature Range: +20℃ ~ +30℃] | |||
| ● | Insertion Loss @ F0 | ≤2.2dB @ 3100MHz | |
| ● | Return Loss | ≥12dB @ 2880 ~ 3320MHz | |
| ● | Stop Band Rejection | ≥40dB @ DC ~ 2400MHz | ≥40dB @ 3800 ~ 5500MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 1.0W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -30℃ ~ +70℃ | |

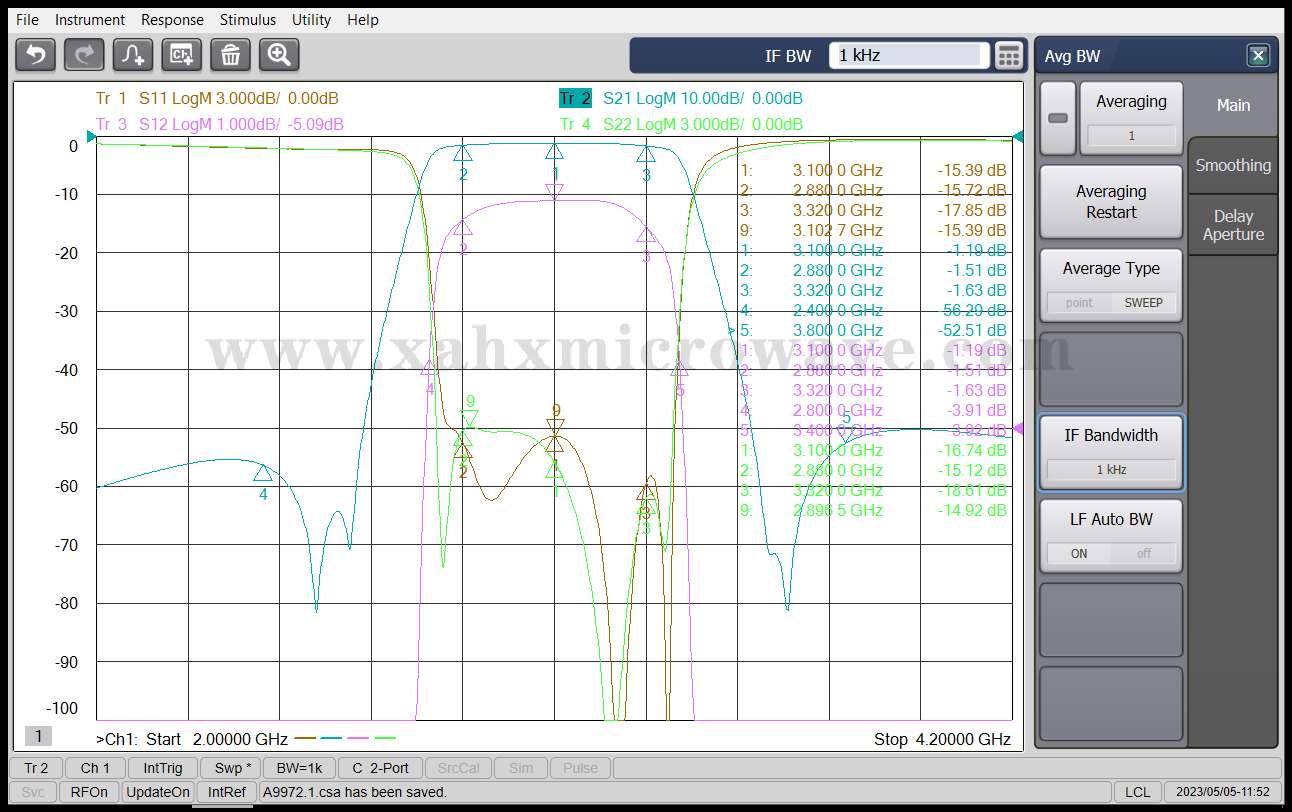

| Test Curve | |||
