| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 555MHz | |
| ● | 3.0dB Bandwidth | 150MHz (480 ~ 630MHz) | |
| ● | Insertion Loss @ F0 | ≤1.5dB @ 555MHz | |
| ● | VSWR | ≤1.5:1 @ 505 ~ 605MHz | |
| ● | Stop Band Rejection | ≥40dB @ DC ~ 430MHz | ≥40dB @ 685 ~ 1500MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 10W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -30℃ ~ +70℃ | |

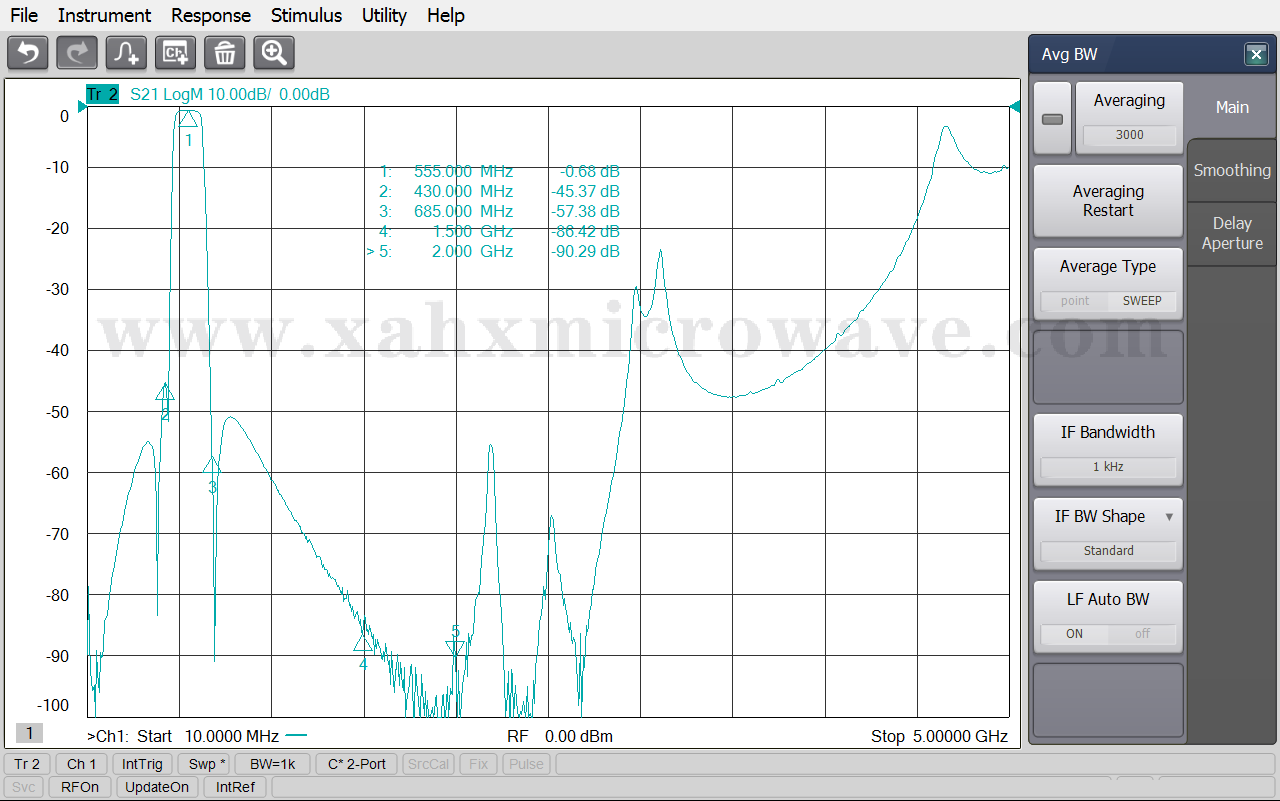

| Test Curve | |||
