| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 1500MHz | |
| ● | Pass Band Bandwidth | 10MHz (1495 ~ 1505MHz) | |
| ● | Pass Band Insertion Loss | ≤3.5dB | |
| ● | Pass Band Ripple | ≤0.3dB | |
| ● | Pass Band VSWR | ≤1.4:1 | |
| ● | Stop Band Rejection | ≥25dB @ DC ~ 1400MHz | ≥25dB @ 1600 ~ 3000MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 1.0W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -30℃ ~ +70℃ | |

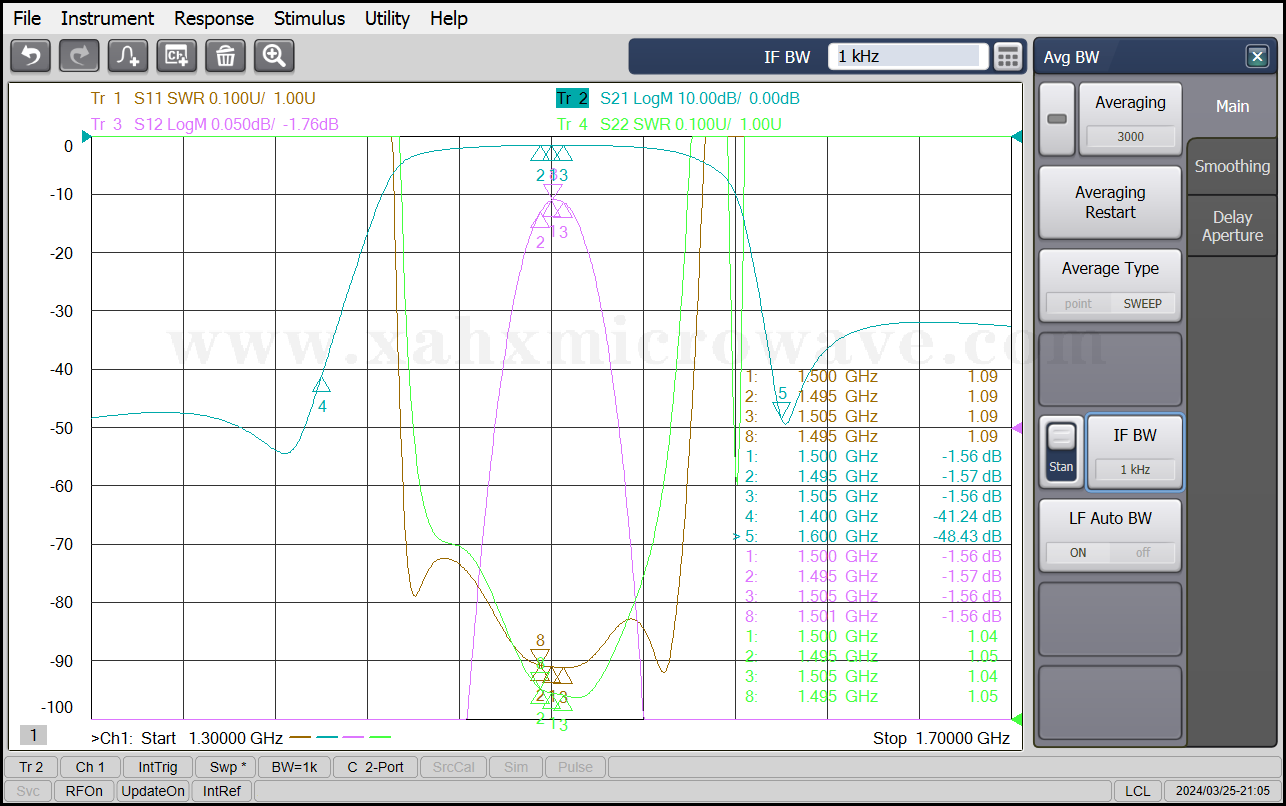

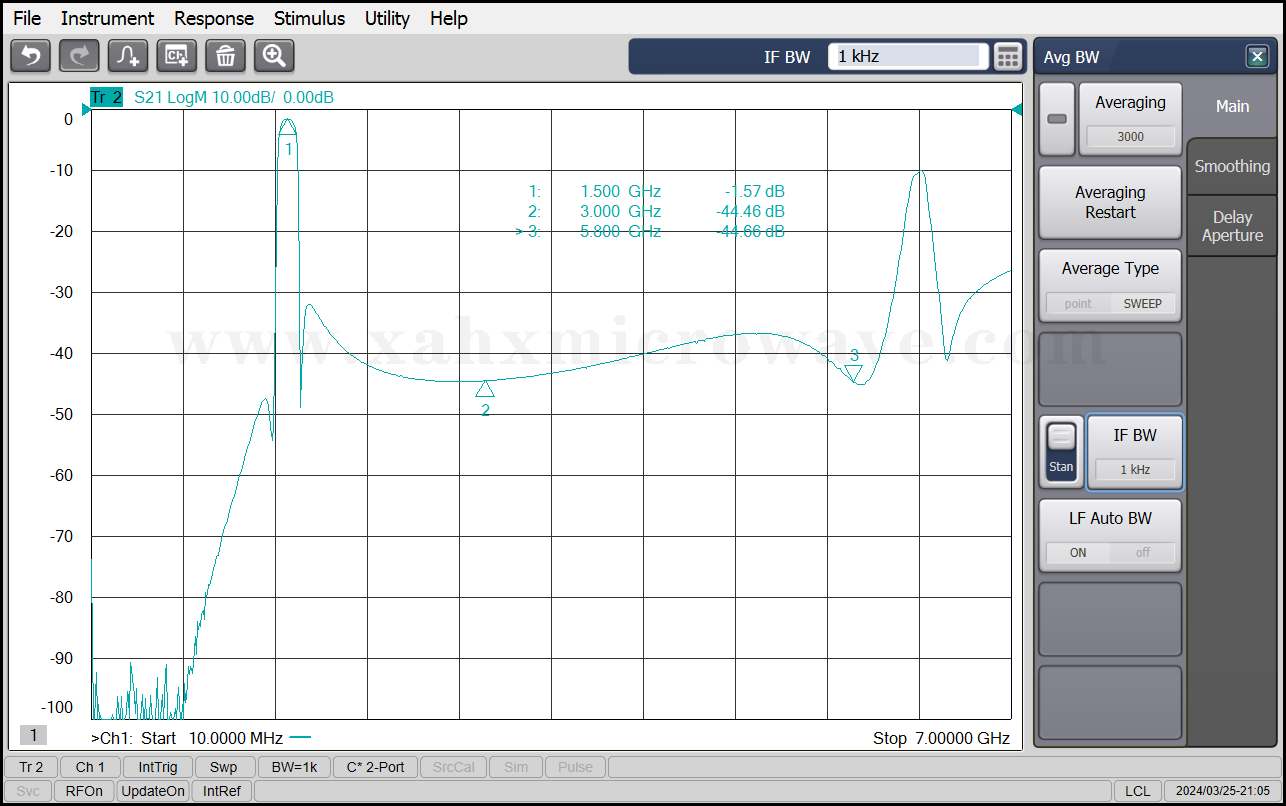

| Test Curve | |||
