Technical Data Sheet
●	Cut Off Frequency	5.0GHz
●	Pass Band Frequency	DC ~ 5.0GHz
●	Pass Band Insertion Loss	≤1.0dB @ DC ~ 4.8GHz
		≤1.5dB @ 4.8 ~ 5.0GHz
●	Pass Band VSWR	≤1.3:1
●	Stop Band Attenuation	≥60dB @ 5.58 ~ 15GHz
●	Impedance	50 Ohms
●	Power Handling	15W Max.
●	Connectors	SMA-Female
●	Surface Finish	Guide Oxygen or Painted Black
●	Temperature Range	-55℃ ~ +85℃

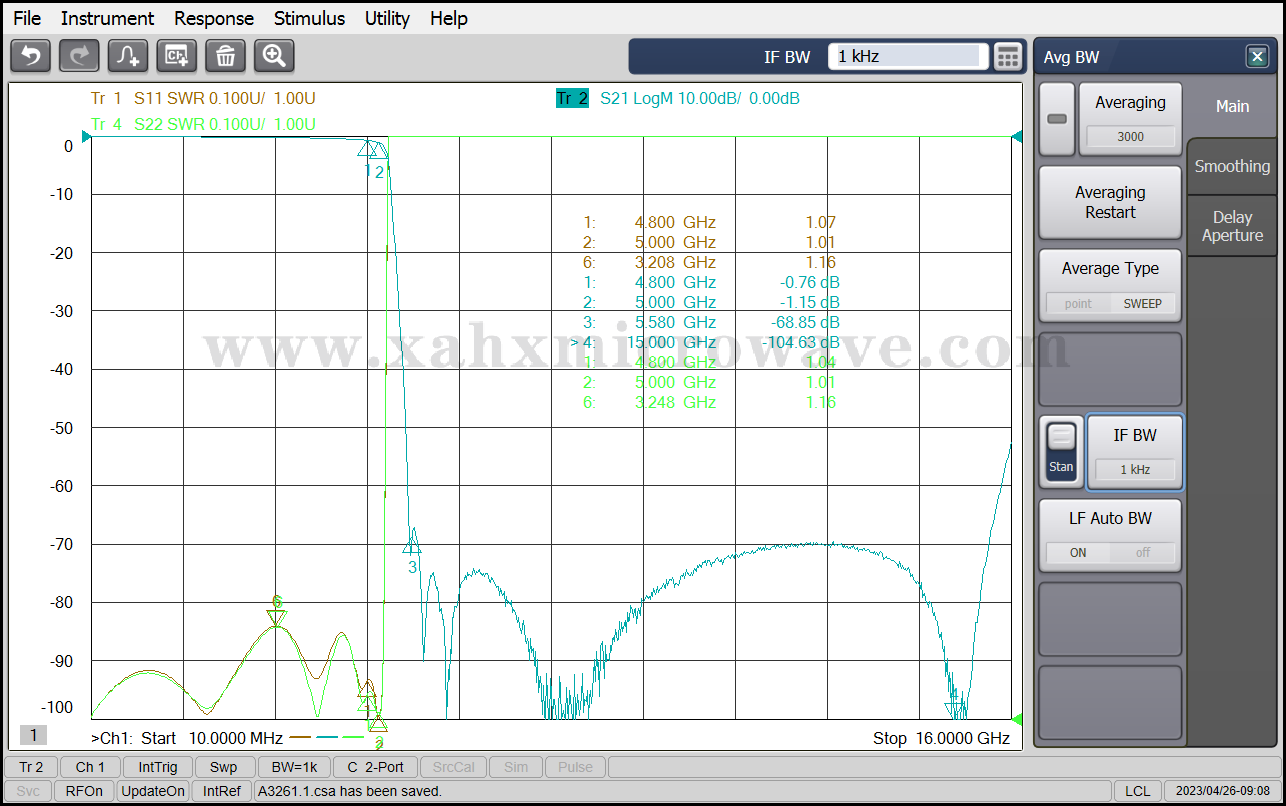

Test Curve
