Technical Data Sheet
●	Cut Off Frequency	5.5GHz
●	Pass Band Frequency	DC ~ 5.5GHz
●	Pass Band Insertion Loss	≤1.0dB @ DC ~ 5.3GHz
		≤1.5dB @ 5.3 ~ 5.5GHz
●	Pass Band VSWR	≤1.3:1
●	Stop Band Attenuation	≥60dB @ 6.07 ~ 15.1GHz
●	Impedance	50 Ohms
●	Power Handling	15W Max.
●	Connectors	SMA-Female
●	Surface Finish	Guide Oxygen or Painted Black
●	Temperature Range	-55℃ ~ +85℃

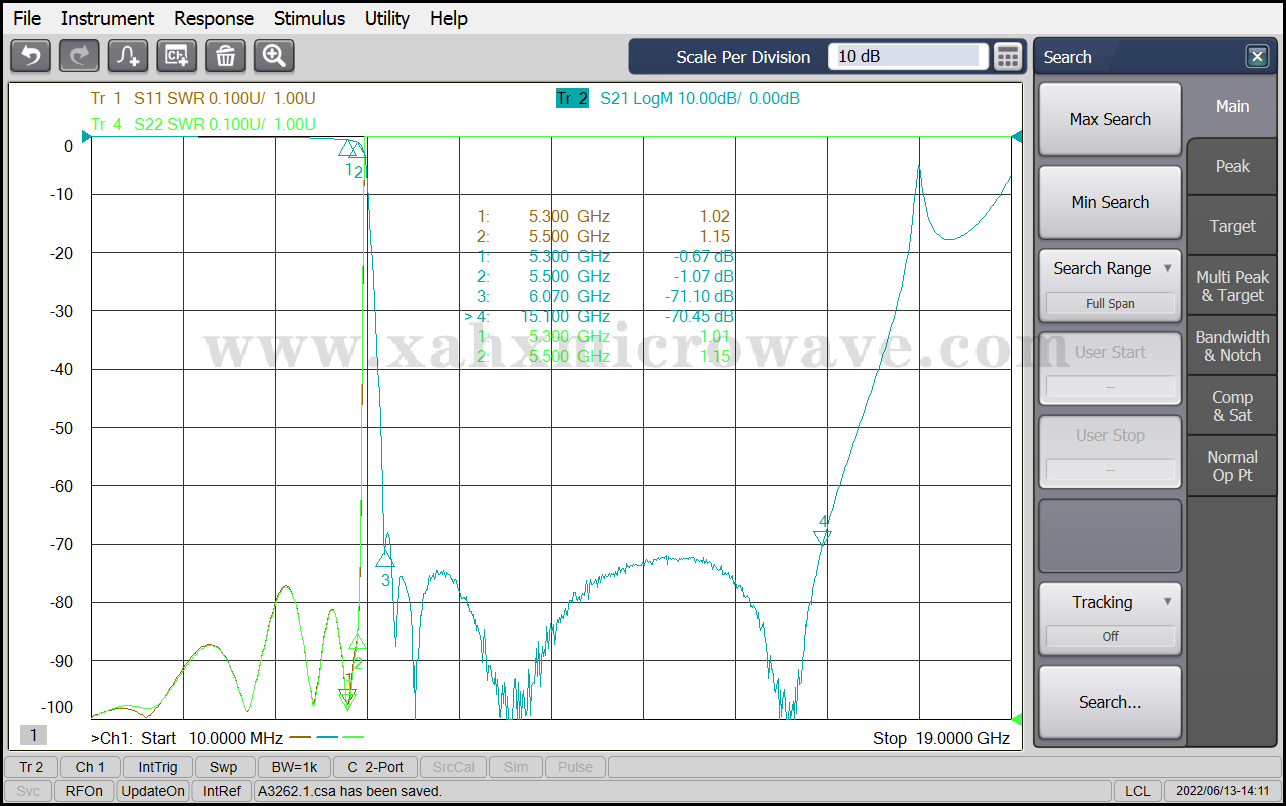

Test Curve
