Technical Data Sheet
●	Cut Off Frequency	8.0GHz
●	Pass Band Frequency	DC ~ 8.0GHz
●	Pass Band Insertion Loss	≤1.0dB @ DC ~ 7.9GHz
		≤1.5dB @ 7.9 ~ 8.0GHz
●	Pass Band VSWR	≤1.4:1
●	Stop Band Attenuation	≥50dB @ 8.8 ~ 16.2GHz
●	Impedance	50 Ohms
●	Power Handling	15W Max.
●	Connectors	SMA-Female
●	Surface Finish	Guide Oxygen or Painted Black
●	Temperature Range	-55℃ ~ +85℃

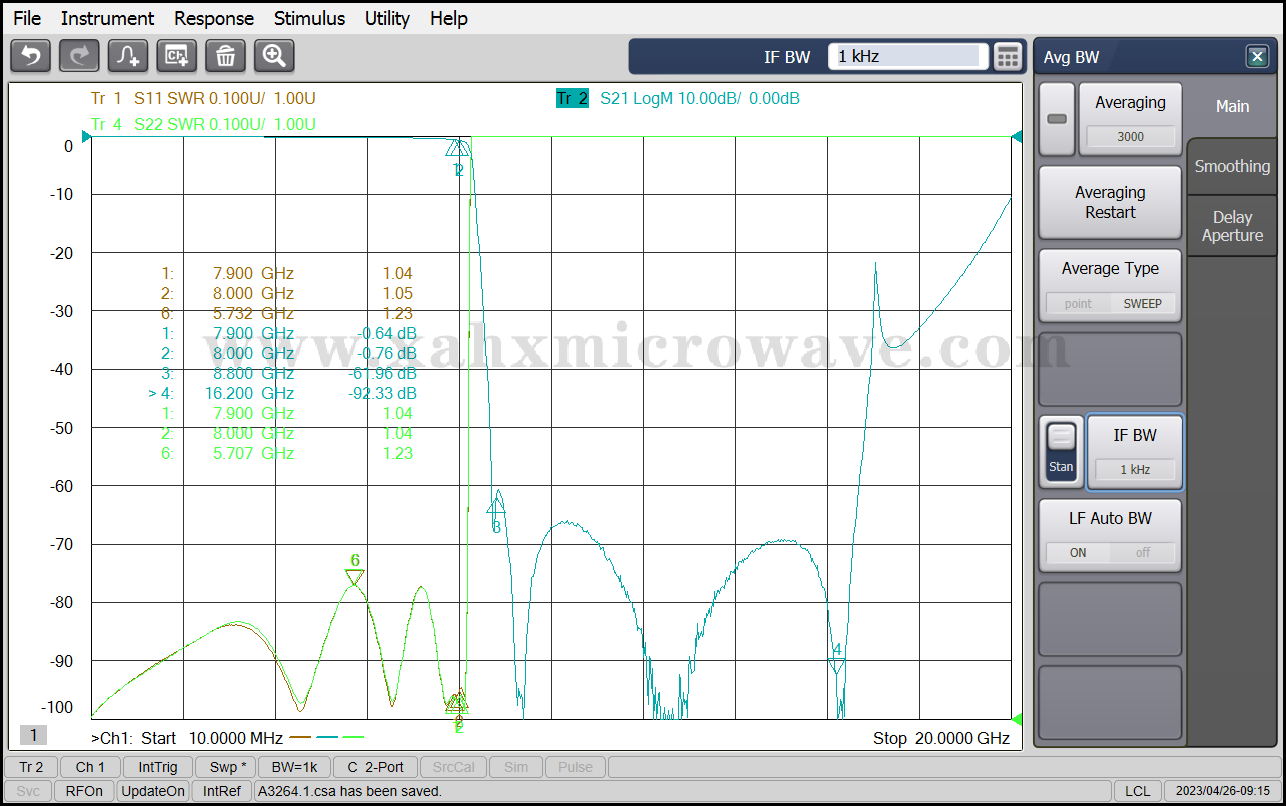

Test Curve
