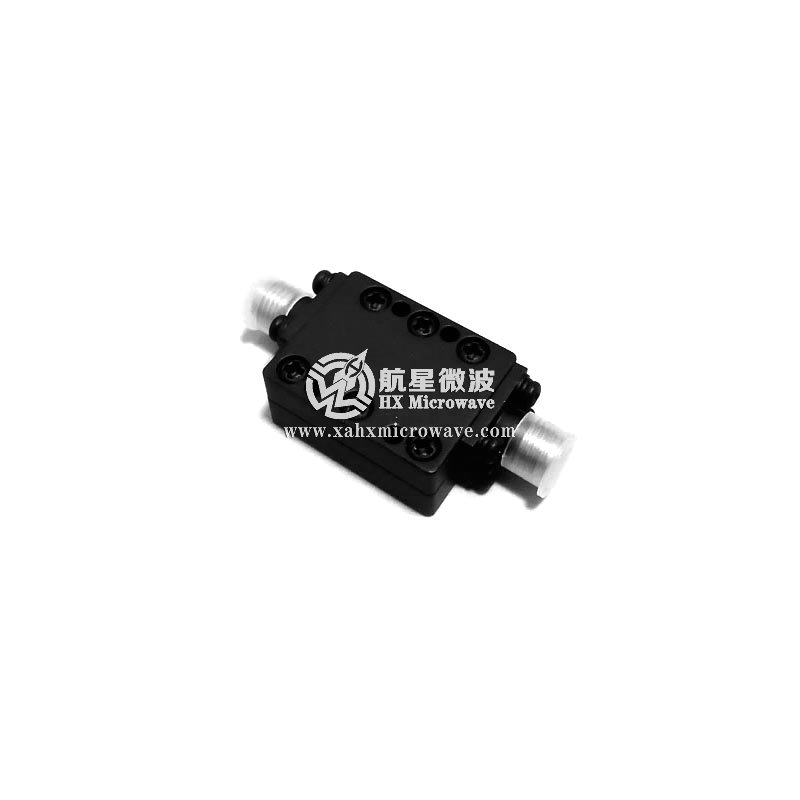

DC-14.5GHz Low Pass Filter HXLBQ-DTD44

P/N：HXLBQ-DTD44
Pass Band Frequency：DC-14.5GHz
Attenuation：≥50dB@15.7-22GHz
Power：≤15W
Product description: Product Features ♦ Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Out of band suppression ♦ Operating temperature range: -40~+70°C
PDF technical index download

Technical Data Sheet
●	Cut Off Frequency	14.5GHz
●	Pass Band Frequency	DC ~ 14.5GHz
●	Pass Band Insertion Loss	≤1.0dB @ DC ~ 14.1GHz
●	Pass Band Insertion Loss	≤2.0dB @ 14.1 ~ 14.5GHz
●	Pass Band VSWR	≤1.5:1
●	Stop Band Attenuation	≥50dB @ 15.7 ~ 22GHz
●	Impedance	50 Ohms
●	Power Handling	15W Max.
●	Connectors	SMA-Female
●	Surface Finish	Guide Oxygen or Painted Black
●	Temperature Range	-55℃ ~ +85℃
Test Curve
