Technical Data Sheet
●	Stop Band Frequency	5725～5850MHz
●	Stop Band Attenuation	≥45dB
●	Pass Band Frequency	DC～5695MHz & 5880～12000MHz
●	Pass Band Insertion Loss	≤3.5dB
●	Pass Band VSWR	≤1.7:1
●	Impedance	50 ohms
●	Surface Finish	Black Paint
●	Power Handling	≤50W
●	Connectors	SMA-Female

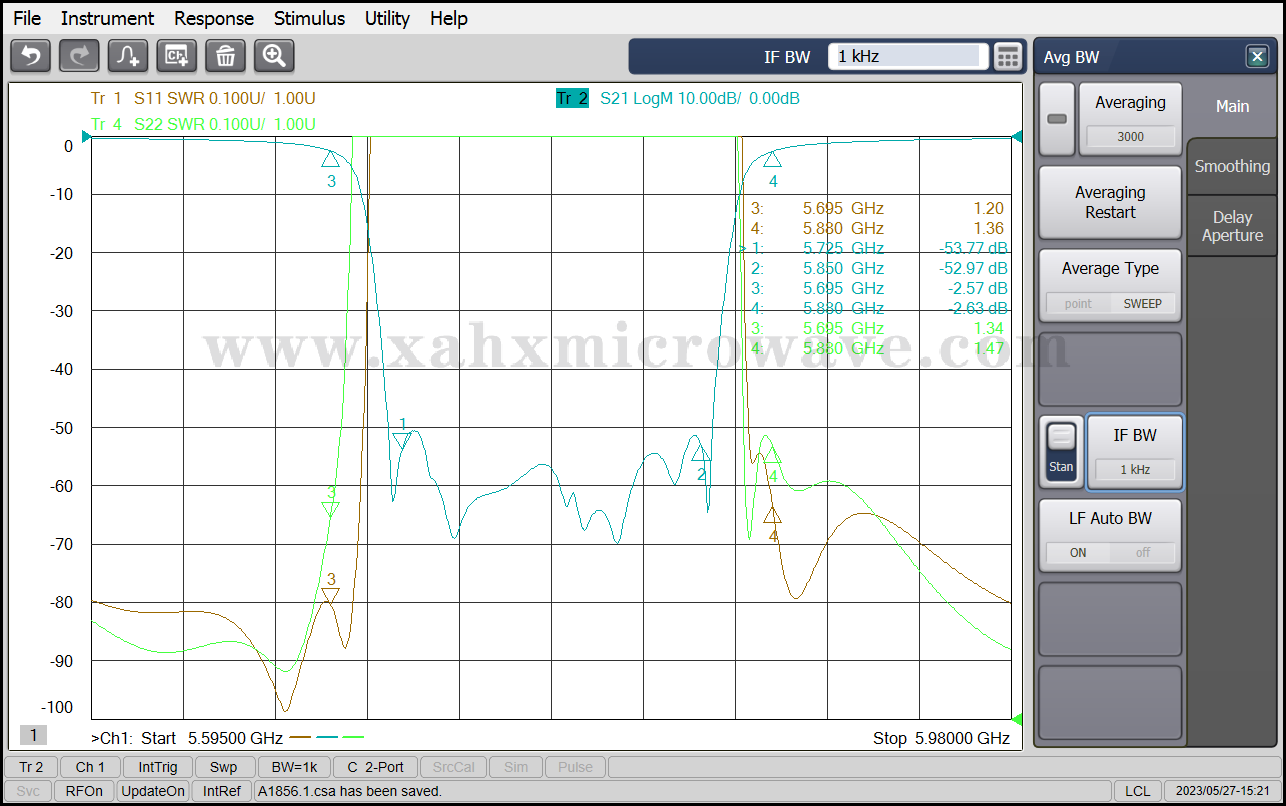

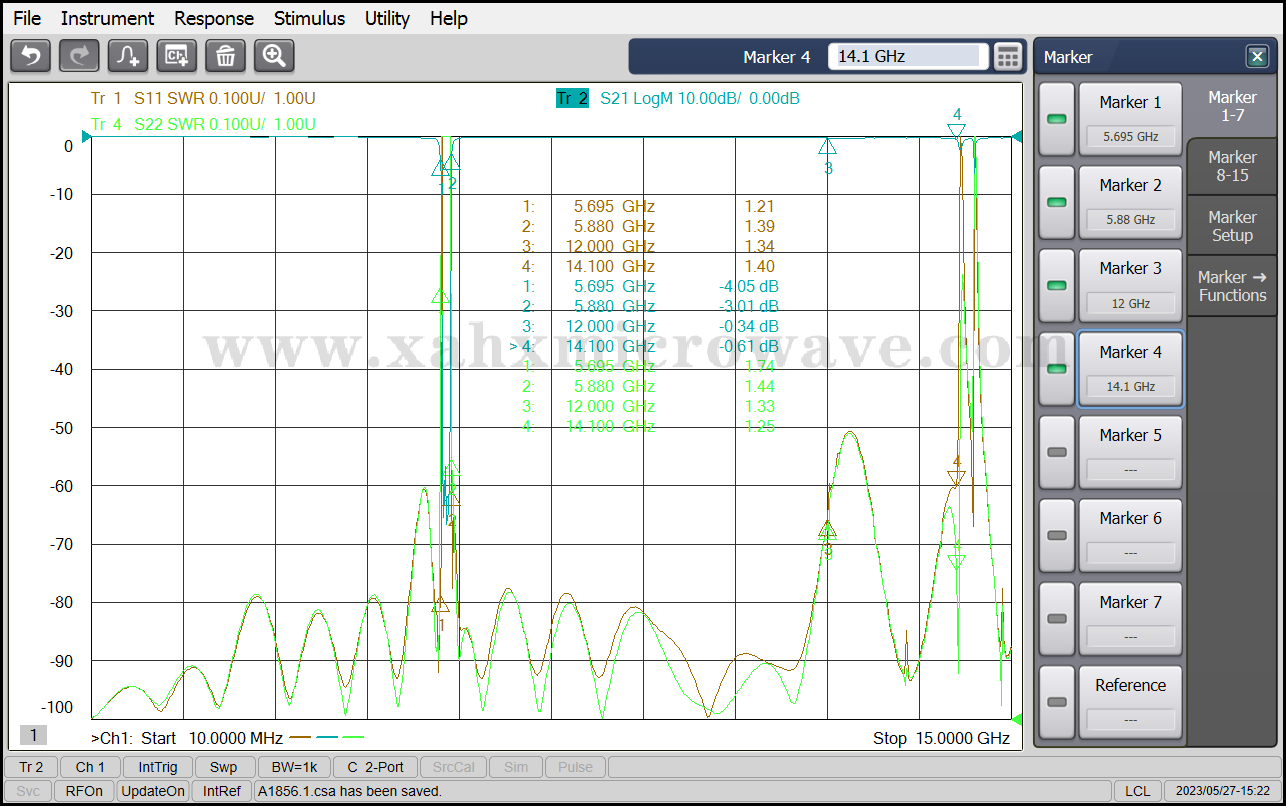

Test Curve
