Cavity Band Rejection Filter

  • 876.2-915MHz Cavity Band Rejection Filter

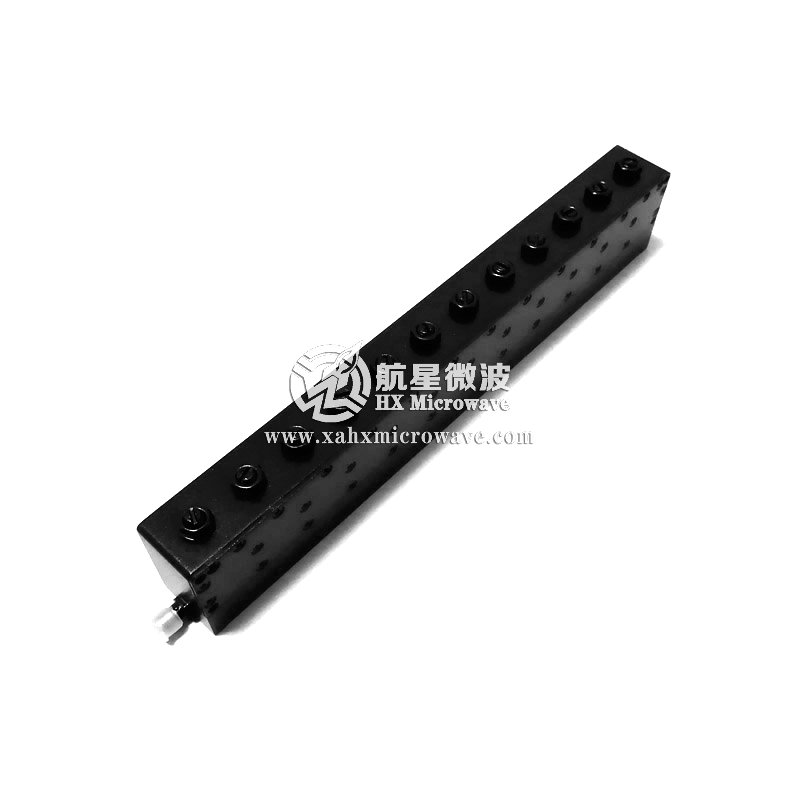

876.2-915MHz Cavity Band Rejection Filter

876.2-915MHz Cavity Band Rejection Filter

  • P/N：HXLBQ-DZA110
  • Stop Band Frequency：876.2-915MHz
  • Stop Band Attenuation：≥40dB
  • Connectors：SMA-Female
  • Product description: Product Features ♦ Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Out of band suppression ♦ Operating temperature range: -40~+70°C
  • PDF technical index download
Technical Data Sheet
● Stop Band Frequency 876.2 ~ 915MHz
● Stop Band Attenuation ≥40dB
● Pass Band Frequency DC ~ 854MHz , 937 ~ 2400MHz
● Pass Band Insertion Loss ≤1.5dB
● Pass Band VSWR ≤1.5:1
● Impedance 50 Ohms
● Power 20W Max.
● Connectors SMA-Female
● Surface Finish Painted Black
● Temperature Range -20℃ ~ +60℃
Test Curve
