Technical Data Sheet
●	Stop Band Frequency	2305～2315MHz
●	Stop Band Attenuation	≥40dB
●	Pass Band Frequency	DC～2285MHz & 2335～3500MHz
●	Pass Band Insertion Loss	≤1.5dB
●	Pass Band VSWR	≤1.5:1
●	Impedance	50 ohms
●	Surface Finish	Black Paint
●	Power Handling	≤50W
●	Connectors	SMA-Female

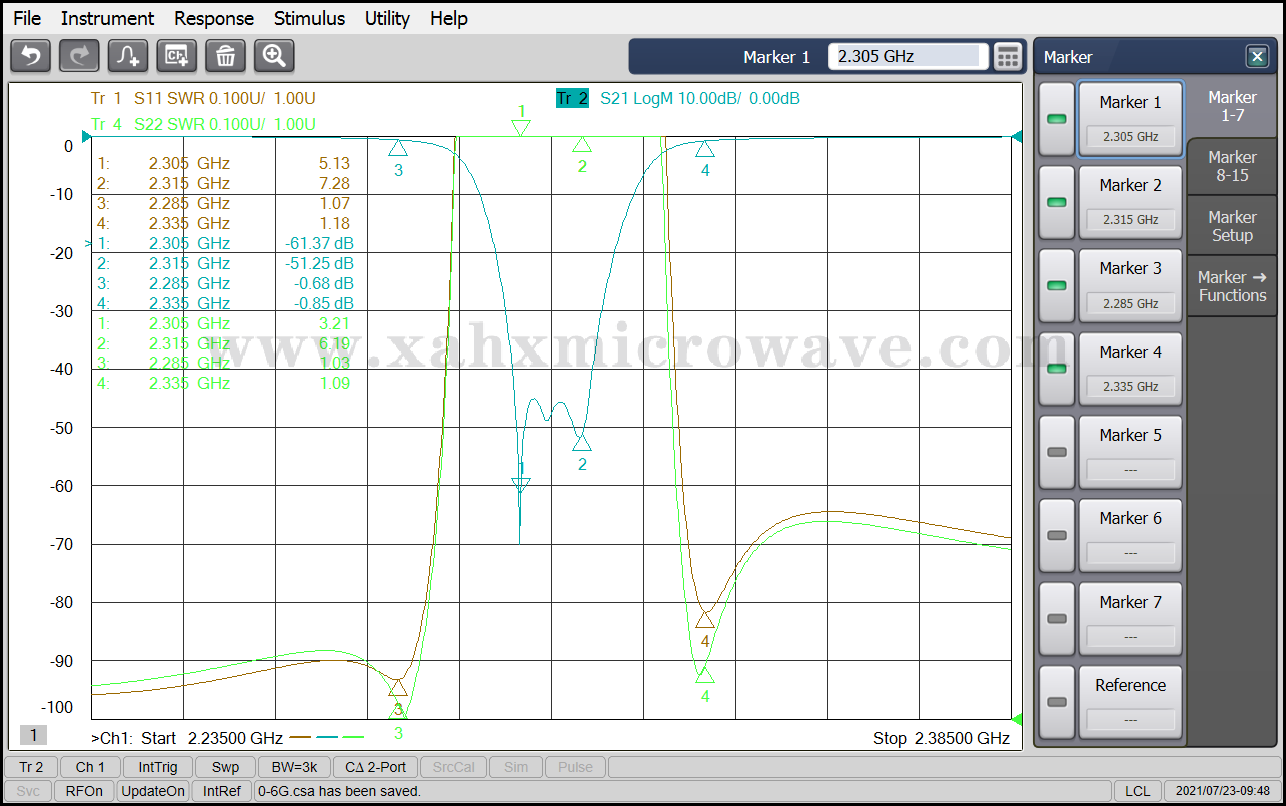

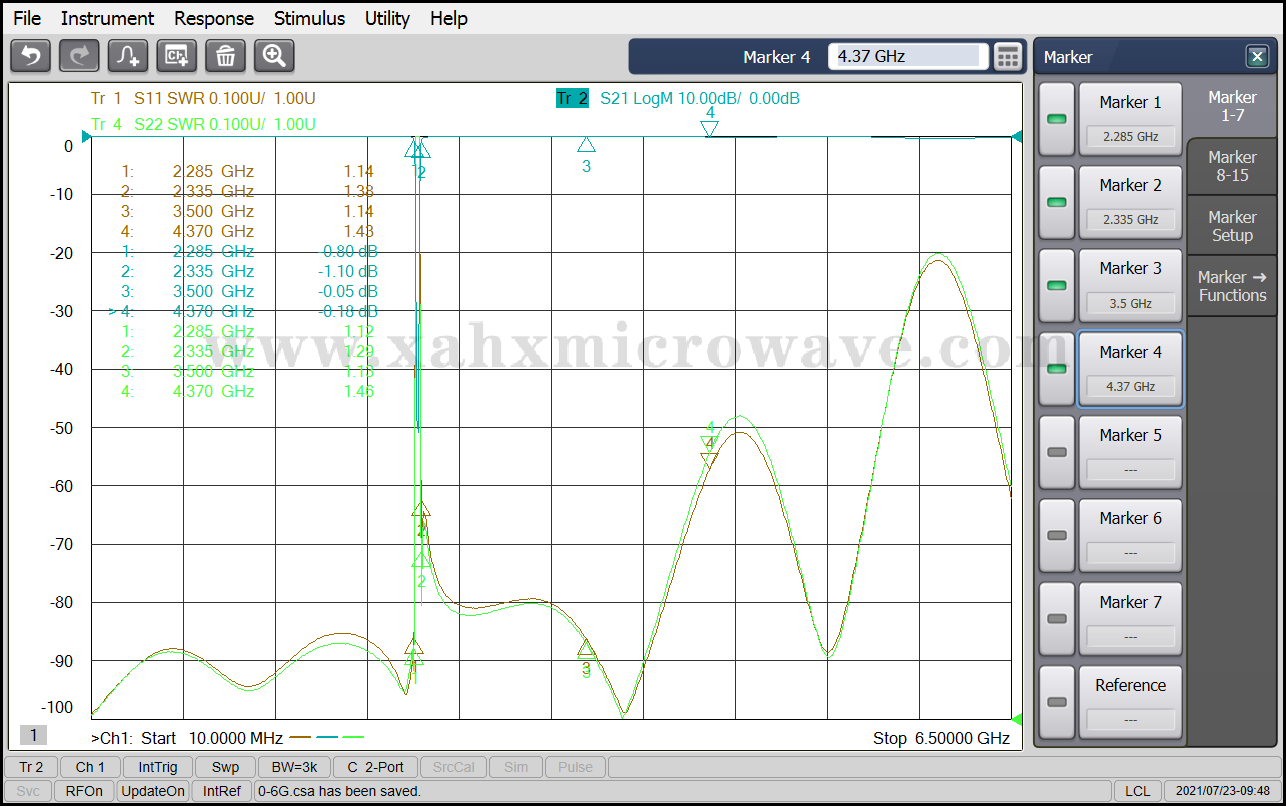

Test Curve
