Technical Data Sheet
●	Stop Band Frequency	2.9 ~ 3.3GHz
●	Stop Band Rejection	≥60dB
●	Pass Band Frequency	DC ~ 2.75GHz , 3.41 ~ 7.5GHz
●	Pass Band Insertion Loss	≤1.5dB
●	Pass Band VSWR	≤1.5:1 @ 0.95 ~ 2.75GHz , 3.41 ~ 7.5GHz
		≤1.8:1 @ DC ~ 0.95GHz
●	Impedance	50 Ohms
●	Power Handling	10W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black

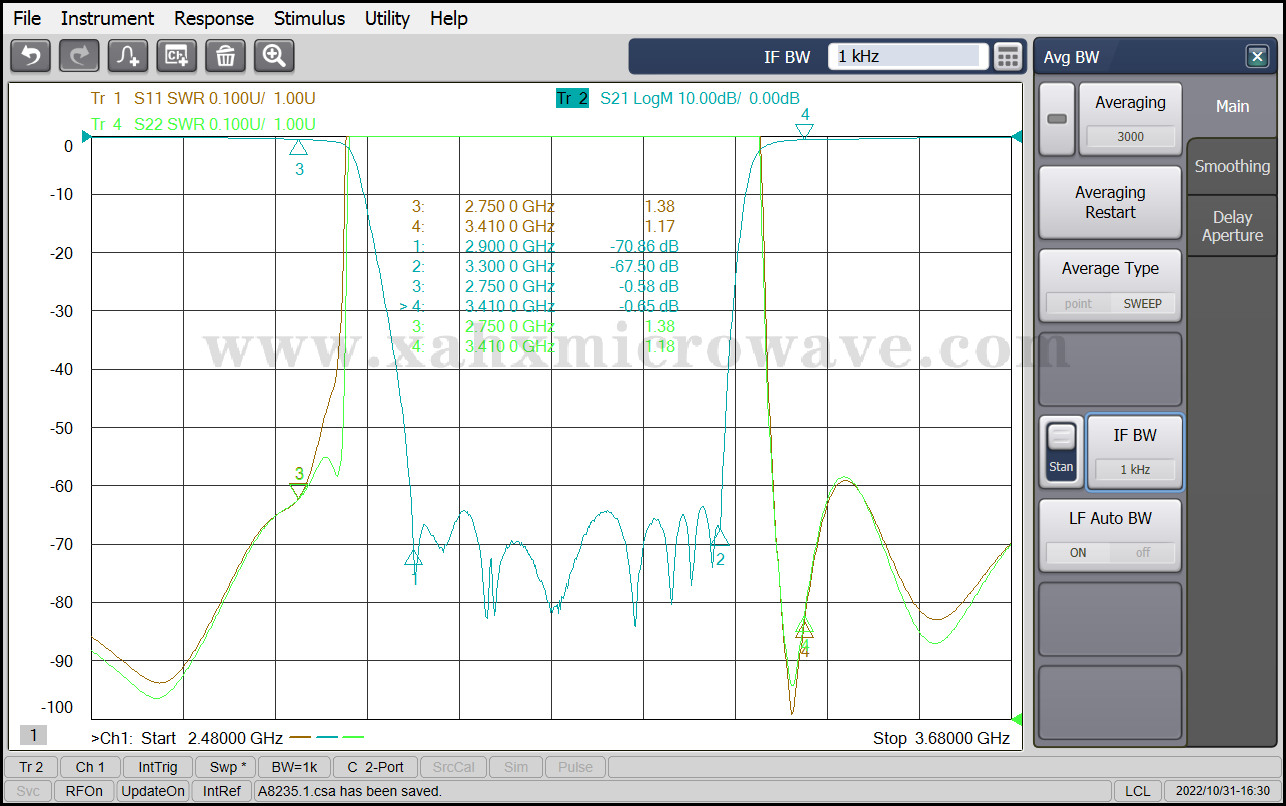

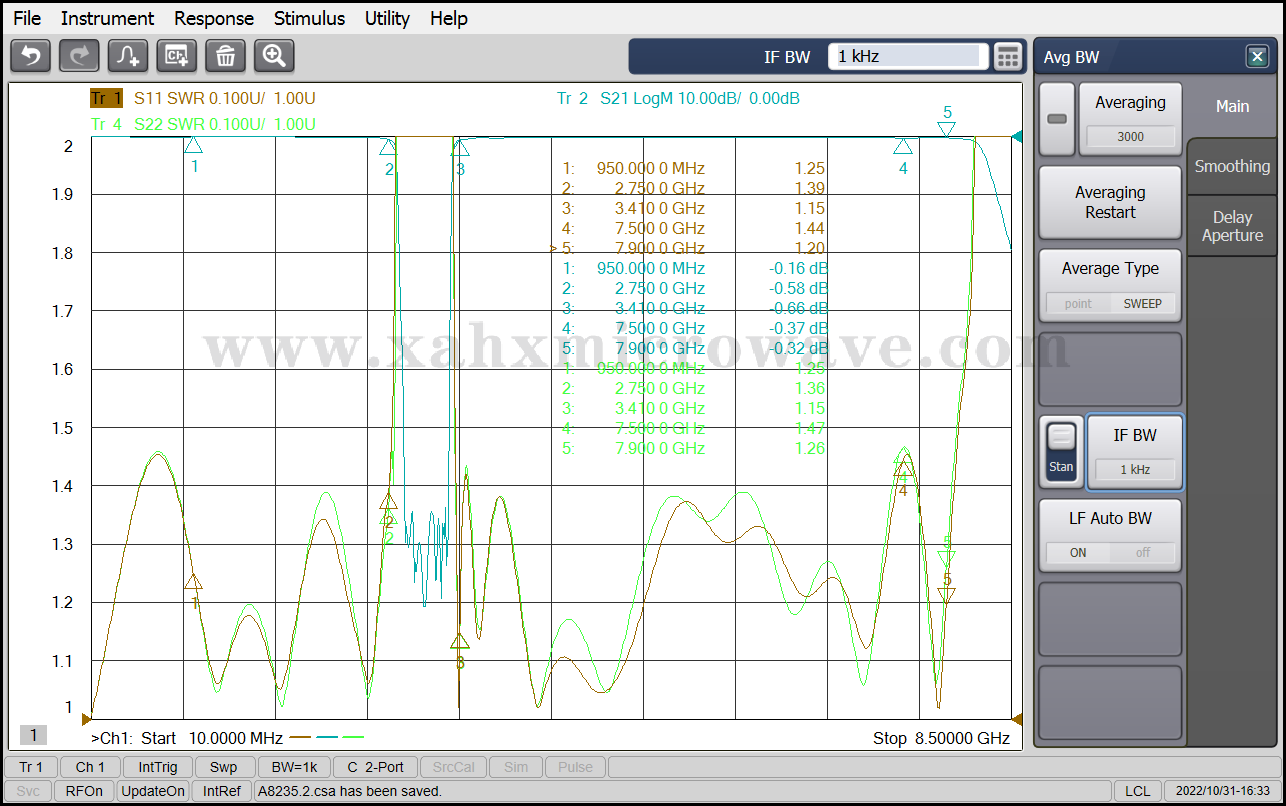

Test Curve
